Porter Cable 9845-Type-2 Cordless Saw Parts

Porter Cable 9845-Type-2 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

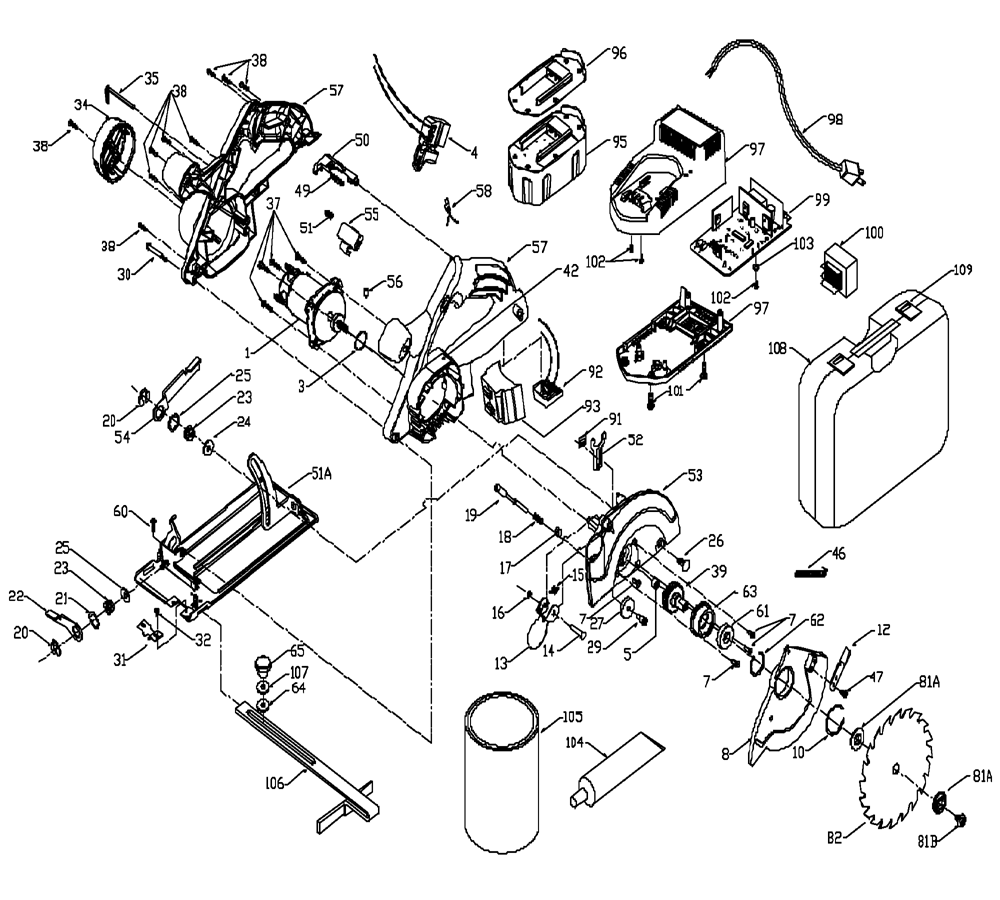

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	906568	MOTOR	$113.14
3	697029	O-RING	$1.36
4	889571	SWITCH	$39.94
5	848131	BEARING	$8.40
7	883486	SCREW	$1.28
8	893558	GUARD	$30.32
10	696667	RETAINING-RING	$1.36
12	696661	LEVER	$2.18
13	891088	EXHAUST COVER	$23.32
14	697382	RIVET	$1.36
15	893314	SPRING	$2.69
16	878877	RETAINER CLIP	$1.28
17	878381	SEAL	$1.28
18	696677	SPRING	$1.36
19	878407	LOCK PIN	$6.68
20	696656	RETAINING-RING	$1.36
21	696668	WASHER	$1.43
22	696669	LEVER	$2.90
23	885516	NUT	$3.56
24	859359	WASHER	$1.36
25	698241	WAVE WASHER	$1.36
26	879525	SCREW	$1.63
27	698367	BUMPER	$2.18
29	879548	SCREW	$1.36
30	893521	BOLT	$1.77
31	696658	GUIDE-PLATE	$2.28
32	696796	SCREW	$1.36
34	889565	CAP	$7.98
35	802876	ALLEN WRENCH	$3.78
37	878813	SCREW	$1.28
38	893792	SCREW	$1.18
39	892072	JACKSHAFT ASSY.	$52.33
46	894303	SPRING	$3.41
47	882187	SCREW	$1.36
49	891353	SPRING	$1.51
50	891352	RELEASE BUTTON	$2.69
51	892190	SPRING	$1.43
51	893832	BASE ASSY.	$41.13
52	891153	BEARING RETAINER	$3.06
53	889553	GEAR HOUSING	$55.83
54	894302	LEVER	$3.02
55	892078	LOCKOUT BUTTON	$3.72
56	810425	PLUG	$1.36
57	892640	HANDLE SET	$42.64
58	689032	CONNECTOR	$1.36
60	894223	SCREW	$1.54
61	696949	BEARING	$3.83
62	872875	RETAINING RING	$1.18
63	889560	JACKSHAFT COVER	$9.15
64	801530	WASHER	$1.36
65	889702	KNOB	$5.05
81	893683	WASHER	$3.01
81	889562	BLADE SCREW	$2.59
91	890376	NUT	$1.56
92	894662	CONTACT PLATE	$11.05
96	901562	BATTERY TOP	$11.27
99	897154	CHARGER	$103.10
104	878499	TUBE GREASE	$9.00
105	879751	LUBRICANT 4 LBS	$52.48
107	889465	WASHER	$1.18
108	889575	CARRYING CASE	$49.43
109	887712	LATCH CARRYING CASE	$1.36
109	890390	LATCH	$2.36
856	698460	BASE INSERT ASSY	$8.80
856	801530	WASHER	$1.36
