Porter Cable 9745 Electric Saw Parts

Porter Cable 9745 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

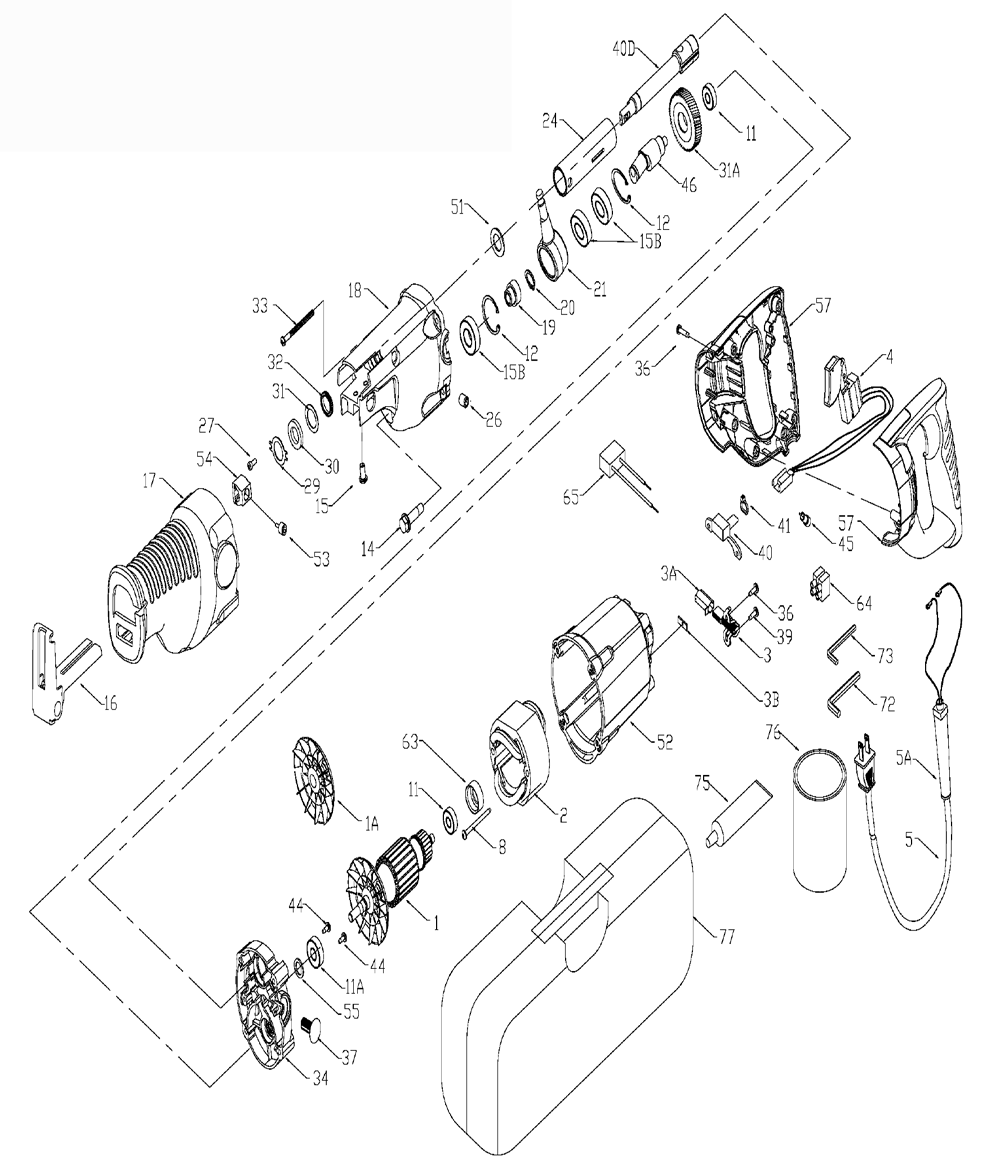

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	A05447	ARMATURE	$77.75
1	898877	ARMATURE	$91.69
1	878904	FAN	$2.10
2	A05448	FIELD	$45.83
2	898876	FIELD	$74.99
3	874289	BRUSH & RETAINER ASY	$7.08
3	865323	BRUSH HOLDER	$2.17
3	865321	BRUSH INSULATOR	$1.36
4	5140096-04	SWITCH KIT	$52.21
5	A10193	CORDSET	$15.80
5	EC162	Power Tools Replacement Electical Cords (SJO) 16...	$14.19
5	891461	CORD & PLUG	$30.94
5	901266	STRAIN RELIEVER	$1.77
8	882704	SCREW	$1.36
11	855284	BEARING	$11.21
11	883096	BEARING	$14.01
12	802302	RING	$1.36
14	879421	SCREW	$3.72
15	906952	SCREW	$1.28
15	883095	BEARING	$17.44
16	911451	SHOE ASSEMBLY	$14.63
17	906726	BOOT	$12.27
18	909439	HOUSING	$50.32
19	879429	SPACER	$1.36
20	853246	RING	$1.36
21	890819	WOBBLE PLATE	$15.80
24	883213	CARRIER TUBE ASSY	$16.19
26	892440	SET SCREW	$1.09
27	882255	SCREW	$1.36
29	879458	PLATE	$1.36
30	879457	FELT SEAL	$1.36
31	684931	WASHER	$1.28
31	879401	GEAR	$13.87
32	902998	SEAL	$1.91
33	879463	SCREW	$1.36
34	906705	INTERMEDIATE PLATE	$20.86
36	900826	SCREW	$1.28
37	879447	PLUG	$2.02
39	882703	SCREW	$1.36
40	695077	MOUNTING BRKET TRIAC	$3.14
40	890817	RECIP SHAFT	$27.28
41	690673	WIRE TIE	$1.36
44	882187	SCREW	$1.36
45	846249	NUT	$2.17
45	682063	CONNECTOR VS	$1.36
46	883097SV	DRIVE SHAFT	$28.87
51	882348	FELT SEAL	$2.01
52	906945	MOTOR HOUSING	$20.86
53	880951	BLADE SCREW	$5.96
54	879465	BLADE CLAMP	$9.14
55	801852	SEAL	$1.36
57	911222	HANDLE SET	$21.17
63	694432	BEARING MOUNT	$1.36
64	889501	TERMINAL BLOCK	$4.40
65	913227	FILTER	$14.97
72	802905	ALLEN WRENCH	$3.78
73	802876	ALLEN WRENCH	$3.78
75	875914	TUBE GREASE	$10.31
76	875667	LUBRICANT-4LBS	$39.32
