Porter Cable 9735-Type-2 Electric Saw Parts

Porter Cable 9735-Type-2 Parts

Download Schematic

Time to buy a new tool?

Porter Cable 9735-Type-2

Quick Change Tiger S...

$136.99

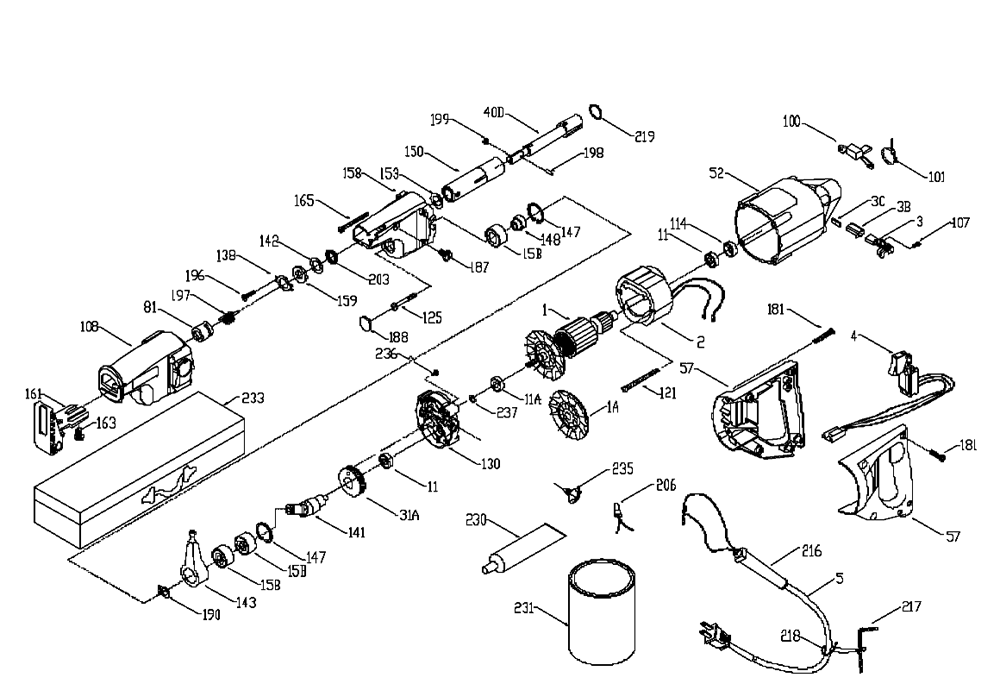

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	898877	ARMATURE	$91.69
1	878904	FAN	$2.10
2	898876	FIELD	$74.99
3	874289	BRUSH & RETAINER ASY	$7.08
3	865323	BRUSH HOLDER	$2.17
3	865321	BRUSH INSULATOR	$1.36
5	A10193	CORDSET	$15.80
5	EC162	Power Tools Replacement Electical Cords (SJO) 16...	$14.19
11	855284	BEARING	$11.21
11	883096	BEARING	$14.01
15	883095	BEARING	$17.44
31	879401	GEAR	$13.87
40	N074353	RECIP-SHAFT KIT	$56.64
52	912305	HOUSING	$20.86
57	892792	HANDLE SET	$27.06
81	897774	COLLAR	$17.17
100	695077	MOUNTING BRKET TRIAC	$3.14
101	690673	WIRE TIE	$1.36
107	882703	SCREW	$1.36
108	897576	INSULATOR BOOT	$13.00
114	694432	BEARING MOUNT	$1.36
121	882704	SCREW	$1.36
125	879421	SCREW	$3.72
130	879414	INTERMEDIATE PLATE	$27.73
138	879458	PLATE	$1.36
141	883097SV	DRIVE SHAFT	$28.87
142	684931	WASHER	$1.28
143	890819	WOBBLE PLATE	$15.80
147	802302	RING	$1.36
148	879429	SPACER	$1.36
150	883213	CARRIER TUBE ASSY	$16.19
153	882348	FELT SEAL	$2.01
158	879423	FRONT HOUSING	$49.72
159	879457	FELT SEAL	$1.36
161	891672SV	SHOE & BRACKET ASSY.	$15.71
163	849235	SCREW	$1.36
165	879463	SCREW	$1.36
181	900826	SCREW	$1.28
187	892440	SET SCREW	$1.09
188	880952	PLUG	$1.36
190	853246	RING	$1.36
196	882255	SCREW	$1.36
197	648924-00	SPRING	$1.18
198	884696	RETAINER KIT	$6.56
199	648594-00	CLAMP PIN	$2.98
203	902998	SEAL	$1.91
206	846249	NUT	$2.17
216	901266	STRAIN RELIEVER	$1.77
217	802905	ALLEN WRENCH	$3.78
218	842323	WRENCH HOLDER	$1.23
219	879449	O RING	$1.36
230	875914	TUBE GREASE	$10.31
231	875667	LUBRICANT-4LBS	$39.32
235	879447	PLUG	$2.02
236	882187	SCREW	$1.36
237	801852	SEAL	$1.36
