Porter Cable 9543-Type-1 Electric Saw Parts

Porter Cable 9543-Type-1 Electric Saw Parts Image

Porter Cable 9543-Type-1 Parts

Download Schematic

Time to buy a new tool?

Porter Cable 9543-Type-1

Quik-Change 6 Amp To...

$178.99

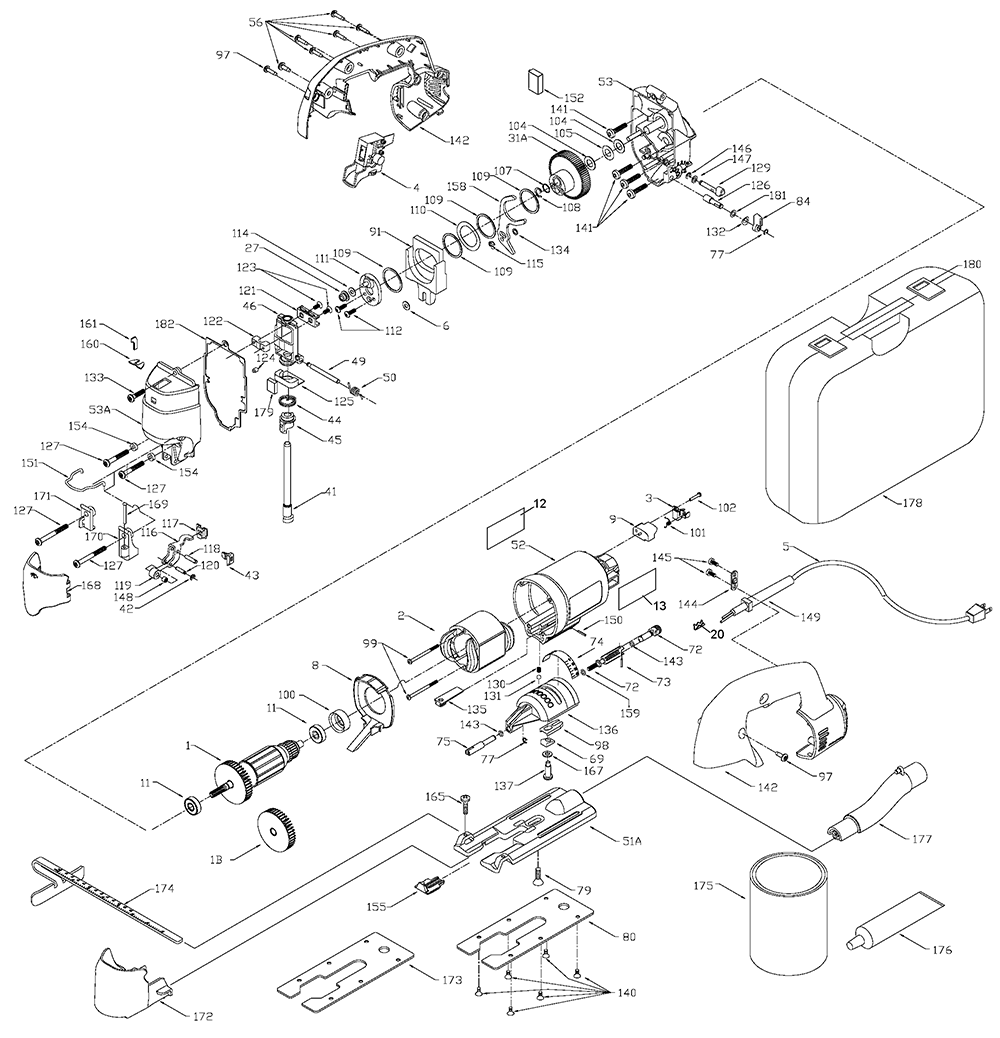

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	890843	ARMATURE	$83.73
1	890845	ARMATURE	$73.88
1	901088	FAN	$3.49
2	890846	FIELD	$44.48
3	893872	BRUSH	$7.20
3	884257	BRUSH HLDR/BRUSH ASY	$5.84
4	886772	SWITCH	$26.67
5	149144	CORD	$20.86
5	330072-97	CORD/10 FT/18-2	$19.23
5	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
6	891164	WASHER	$1.18
8	886719	BAFFLE	$2.90
9	690740	BRUSH HOLDER BASE	$2.41
11	33000-85	BEARING replaces 855216SV	$15.39
20	444262-00	TERMINAL	$1.24
27	886723	CRANK ROLLER	$13.13
31	890850	GEAR	$52.33
41	896923	BLADE HOLDER SHAFT	$28.43
42	890836	E-RING	$1.18
43	886736	JAW-BLADE CLAMP	$7.98
44	886737	SPRING	$2.68
45	886738	COLLAR	$13.73
46	890851	BEARING HOLDER ASSY.	$53.74
49	888976	SHAFT	$4.55
50	889683	SPRING	$2.25
51	892884	BASE	$27.28
52	887794	MOTOR HOUSING	$11.93
53	A07956	GEAR HOUSING	$50.42
53	A03775	KNOB	$3.49
53	A07956	GEAR HOUSING	$50.42
53	892996	GEAR HOUSING COVER	$26.45
56	886538	SCREW	$1.18
69	886758	SLIDE	$1.62
73	889667	ROLL PIN	$1.18
74	891232	ANGLE LABEL	$1.18
77	697388	RETAINING RING	$1.36
79	887866	SCREW	$1.18
80	886767	SUB BASE	$26.81
84	886742	KNOB	$2.68
91	886721	COUNTERWEIGHT	$13.80
97	879678	SCREW	$1.18
98	893948	SLIDE	$7.63
99	891012	SCREW	$1.18
100	694432	BEARING MOUNT	$1.36
101	868775	BRUSH SPRING	$2.25
102	879298	SCREW	$1.36
104	851584	WASHER	$3.01
107	873567	WASHER	$1.36
108	697499	RETAINING RING	$1.36
109	887795	WASHER	$1.18
110	872802	SPRING WASHER	$1.93
111	890847	CRANK BLOCK	$24.15
112	892171	SCREW	$1.18
114	858792	WASHER	$1.36
115	697500	RETAINING RING	$1.36
116	900986	SUPPORT ARM	$44.10
117	886727	SUPPORT ARM SEAL	$3.28
118	887864	PIN	$1.18
119	886728	ROLLER	$17.54
120	890837	PIN	$6.24
121	886730	DRIVE BRACKET	$13.32
122	892773	DRIVE CLAMP	$7.32
123	887796	SCREW	$1.18
124	802388	SCREW	$1.18
125	896804	SEAL	$5.53
125	896804	SEAL	$5.53
126	896805	SHAFT	$8.44
127	892950	SCREW 230V	$2.25
127	886748	SCREW	$1.43
129	A03775	KNOB	$3.49
129	A07956	GEAR HOUSING	$50.42
129	A03775	KNOB	$3.49
130	693994	SPRING	$1.36
131	852483	BALL	$1.69
132	889265	SPRING WASHER	$1.66
133	890753	SCREW	$1.18
134	863703	WASHER	$1.36
136	886755	PIVOT BASE	$10.44
137	911026	SCREW KIT	$7.09
137	911026	SCREW KIT	$7.09
137	911026	SCREW KIT	$7.09
140	887799	SCREW	$1.18
141	900826	SCREW	$1.28
142	886769	HANDLE SET	$17.58
143	893098	O-RING	$1.18
143	885348	O-RING	$2.36
144	861434	CORD CLAMP	$1.36
145	882185	SCREW MACHINE STEEL	$1.36
146	890041	RING-RTNG EXTL	$1.18
147	858792	WASHER	$1.36
148	330004-34	BALL BEARING	$2.69
149	810716	RELIEVER	$4.13
150	890642	ROLL PIN	$1.18
152	891347	EMI SUPPRESSION	$34.51
154	891782	WASHER	$1.18
160	891891	SEAL	$1.18
161	891892	SEAL	$1.18
165	839845	SCREW	$7.08
167	848741	WASHER	$1.36
167	848741	WASHER	$1.36
168	892850	GUARD	$5.69
169	892853	PIN 230V	$2.25
170	892851	HINGE	$5.69
171	892852	LATCH	$4.96
172	886775	SHIELD-DUST	$11.74
175	875667	LUBRICANT-4LBS	$39.32
176	875914	TUBE GREASE	$10.31
178	886778	CARRYING CASE	$30.84
179	896804	SEAL	$5.53
180	887712	LATCH CARRYING CASE	$1.36
181	848741	WASHER	$1.36
