Porter Cable 895PK-Type-2 Router Parts

Porter Cable 895PK-Type-2 Router Parts Image

Porter Cable 895PK-Type-2 Parts

Download Schematic

Time to buy a new tool?

Porter Cable 895PK-Type-2

2 1/4 HP 12 Amp Plun...

$271.15

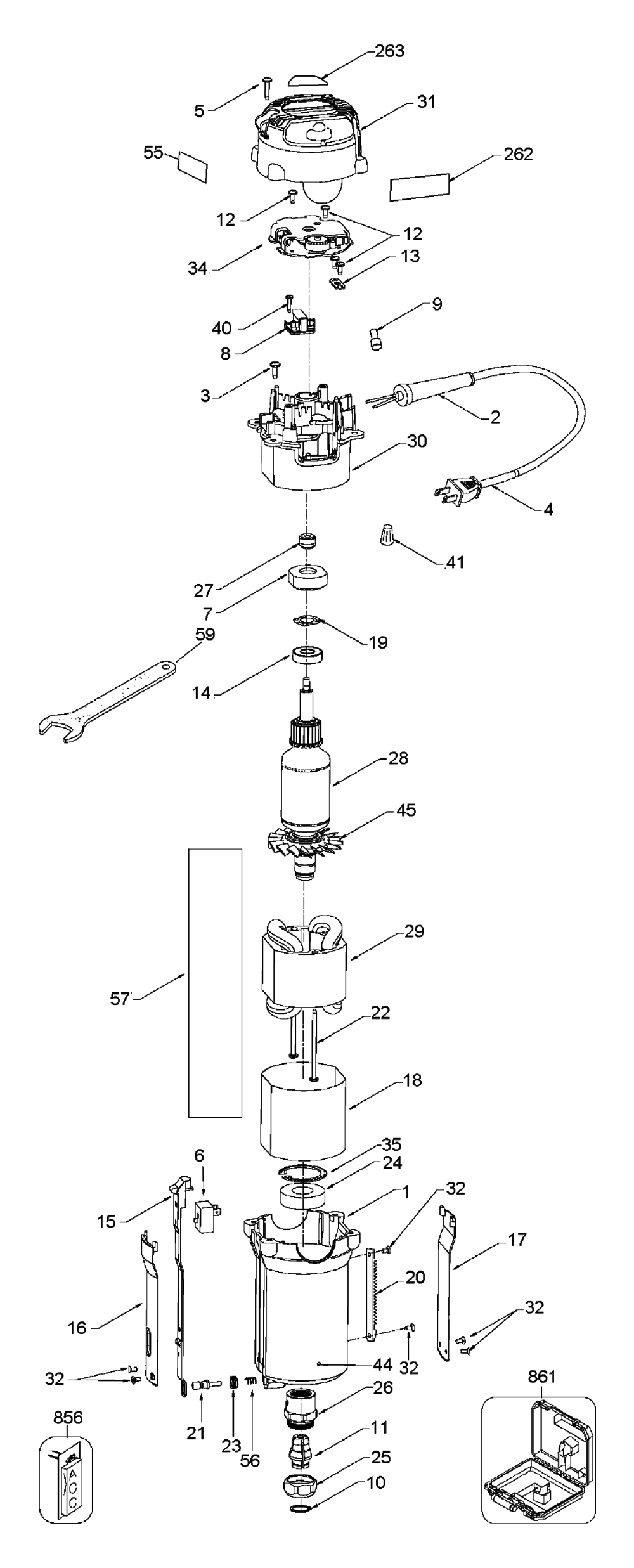

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	A22701	MOTOR HOUSING	$55.38
2	901266	STRAIN RELIEVER	$1.77
3	886538	SCREW	$1.18
4	911024	CORDSET	$20.91
5	696276	SCREW	$1.09
6	610559-00	SWITCH	$7.21
7	908697	BUSHING	$8.80
8	A13684	BRUSH & HOLDER ASSY	$13.97
9	682063	CONNECTOR VS	$1.36
10	823030	SNAP-RING	$1.36
11	44006	COLLET 6MM	$23.53
11	5140103-66	COLLET ASSY.	$24.86
11	44008	COLLET 8MM	$26.57
11	44010	COLLET 10MM	$25.93
11	876669	COLLET 1/4 INCH	$15.62
11	876671	COLLET 1/2 INCH	$15.62
12	882185	SCREW MACHINE STEEL	$1.36
13	861434	CORD CLAMP	$1.36
14	330003-64	BALL BEARING	$8.54
15	A22699	SWITCH ACTUATOR	$1.98
16	A22697	COVER	$1.98
17	A22698	COVER	$1.98
18	912755SV	INSULATING SLEE	$29.85
19	912032	WASHER	$1.92
20	911807	RACK	$3.65
21	908596	PIN	$4.40
22	879999	SCREW	$1.36
23	901287	SPINDLE LOCK RETAINE	$2.50
24	803831SV	BEARING	$7.55
25	875893	COLLET NUT	$11.35
26	903053	CHUCK	$27.36
27	250403	MAGNETIC DISC	$11.68
28	912753	ARMATURE	$78.50
29	A13650	FIELD	$44.14
30	908568	MOTOR HOUSING	$8.13
31	908566	CAP	$8.80
32	A21384	SCREW	$1.18
34	A23865	SPEED CONTROL	$80.58
35	861737	RING	$3.49
40	893792	SCREW	$1.18
41	912030	WIRE NUT	$1.28
44	800835	PIN	$1.36
45	893728	FAN	$8.49
55	A24391	WARNING LABEL	$1.12
56	698709	SPRING	$1.36
57	913226	INSULATING TAPE	$4.40
59	907007	WRENCH	$10.54
59	A22709	OPEN-END WRENCH	$3.96
62	A22702	CLAMP	$9.85
65	911800	WEAR PLATE	$1.59
66	911801	INSERT	$2.36
67	911751	ROD	$3.85
68	910601	PLUG	$3.01
69	911802	NUT	$1.28
70	908572	HANDLE	$13.97
71	908577	RING	$2.36
72	911803	SCREW	$1.59
73	908576	KNOB	$7.09
75	911809	SCREW	$1.59
76	810425	PLUG	$1.36
77	911776	SCREW	$1.28
78	911804	RETAINING RING	$1.28
79	911796	SPRING	$1.59
81	911797	LEVER	$5.05
82	911710	DISK	$11.93
83	681472	SCREW	$1.21
84	904936	BASE-SUB	$9.88
87	862641	NUT	$2.18
134	802417	WASHER	$1.36
135	903114	BUCKLE	$7.60
136	903118	PIN	$1.69
137	903693	NUT	$1.09
138	A00323	WEAR PLATE	$1.28
139	802350	SCREW	$1.36
148	881290	KNOB	$1.59
160	A22700	BASE HOUSING	$50.65
161	911799	AXLE	$5.05
200	A23122	CARRIER ASSY	$84.60
201	A23121	BASE ASSY	$42.58
203	698805	TURRET	$5.12
204	606246-00	SUB BASE	$30.80
205	A17176	CARRIER COVER	$5.10
206	A17175	CARRIER COVER	$7.35
207	608921-00	BELLOWS	$4.73
208	608922-00	CAP	$1.91
210	A22704	LOCK LEVER	$2.13
211	699991	DEPTH ROD	$6.12
213	608926-00	RETAINING CLIP	$1.21
214	608932-00	SLEEVE	$1.21
215	608975-00	COMPR. SPRING	$1.91
216	699399	POINTER	$2.74
218	608931-00	GUIDE BUSHING	$1.21
219	330045-45	SCREW	$1.24
220	608972-00	SPRING, EXT.	$3.71
221	608920-00	SPRING	$1.21
222	608919-00	SPRING	$1.21
223	608929-00	LOCK BOLT	$1.91
224	608925-00	RETAINING CLIP	$1.21
225	647379-00	CLAMP SHAFT	$5.46
229	324007-10	SCREW	$1.24
230	608298-00	STAR WASHER	$1.21
231	A17373	DEPTH SCALE	$1.50
232	608930-00	SCREW	$1.21
233	883806	SCREW	$1.36
234	895591	WASHER	$1.18
235	685533	WASHER	$1.28
237	860687	BALL	$1.43
238	609842-00	SCREW	$1.21
239	850552	SPRING	$1.36
240	608933-00	SPRING TORSION	$1.21
241	608805-00	VACUUM ADAPTER	$1.91
242	609118-00	COMPR. SPRING	$1.05
245	801752	SCREW	$1.09
247	A21564	DUST SHROUD	$3.14
260	A22727	ID LABEL	$1.12
262	A22976	WARNING LABEL	$1.41
263	A27439	SPEC PLATE	$1.09
264	A22734	ID LABEL	$1.17
265	A22735	WARNING LABEL	$1.41
266	A23753	SPEC PLATE	$1.41
267	607522-00	BASE ALIGN. SHAFT	$3.71
268	607523-00	SUB BASE ALIGN. CONE	$2.25
861	A22986	KITBOX	$56.80
