Porter Cable 77240 Dovetail & Template Parts

Porter Cable 77240 Dovetail & Template Parts Image

Porter Cable 77240 Parts

Download Schematic

Time to buy a new tool?

Porter Cable 77240

24 Inch Omnijig - Do...

$592.76

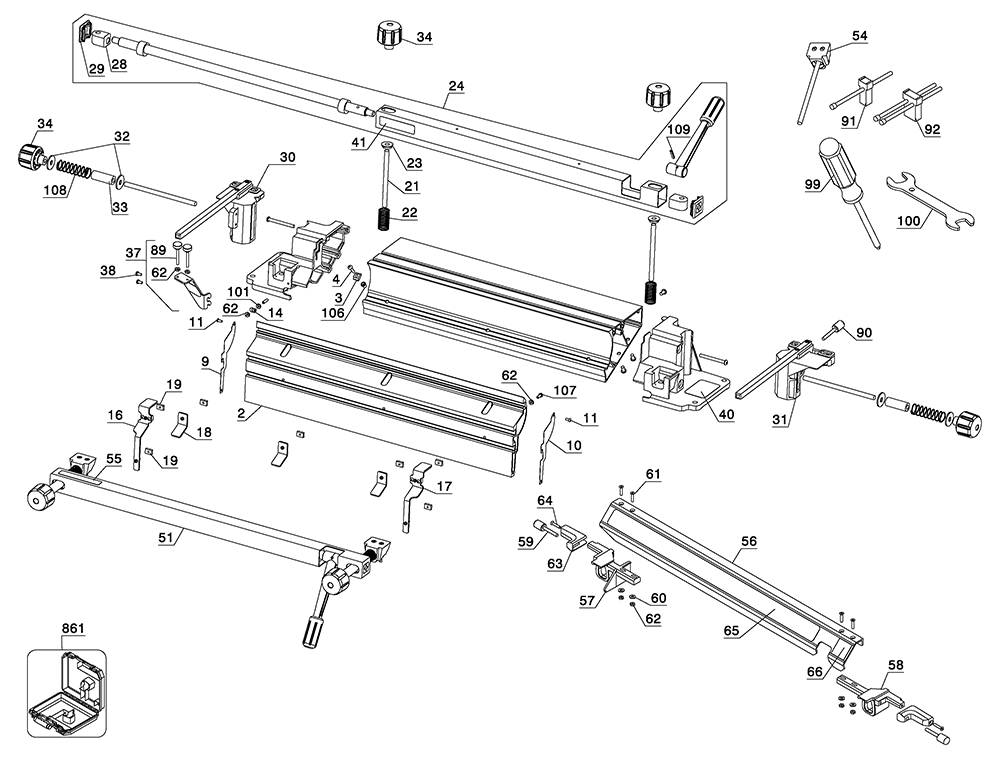

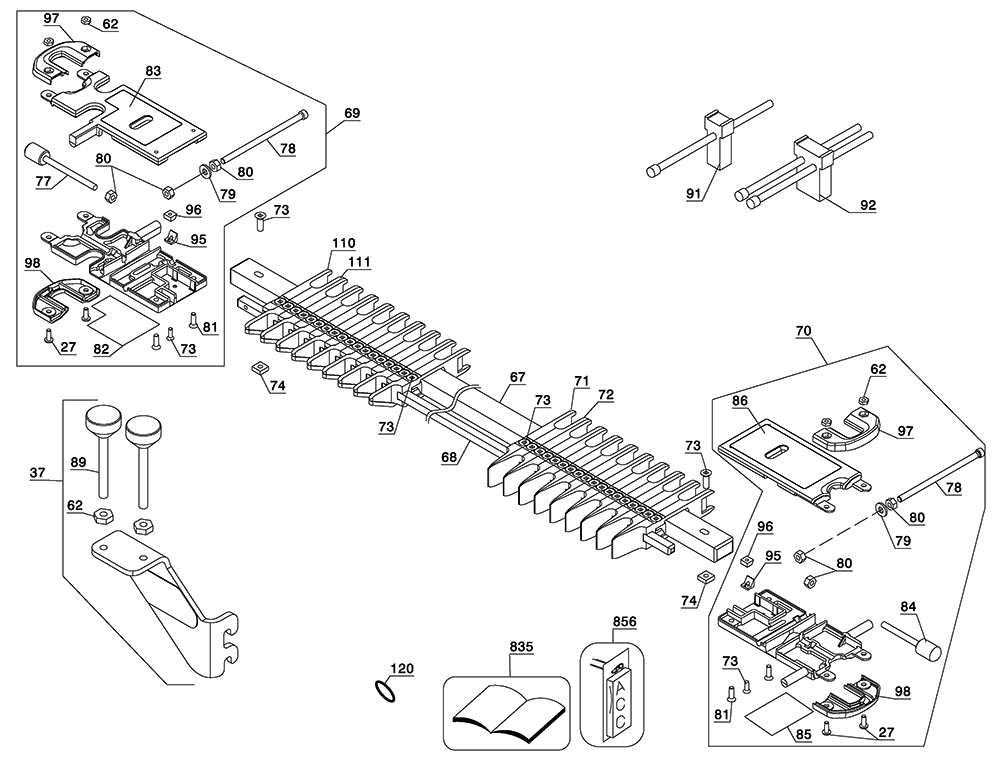

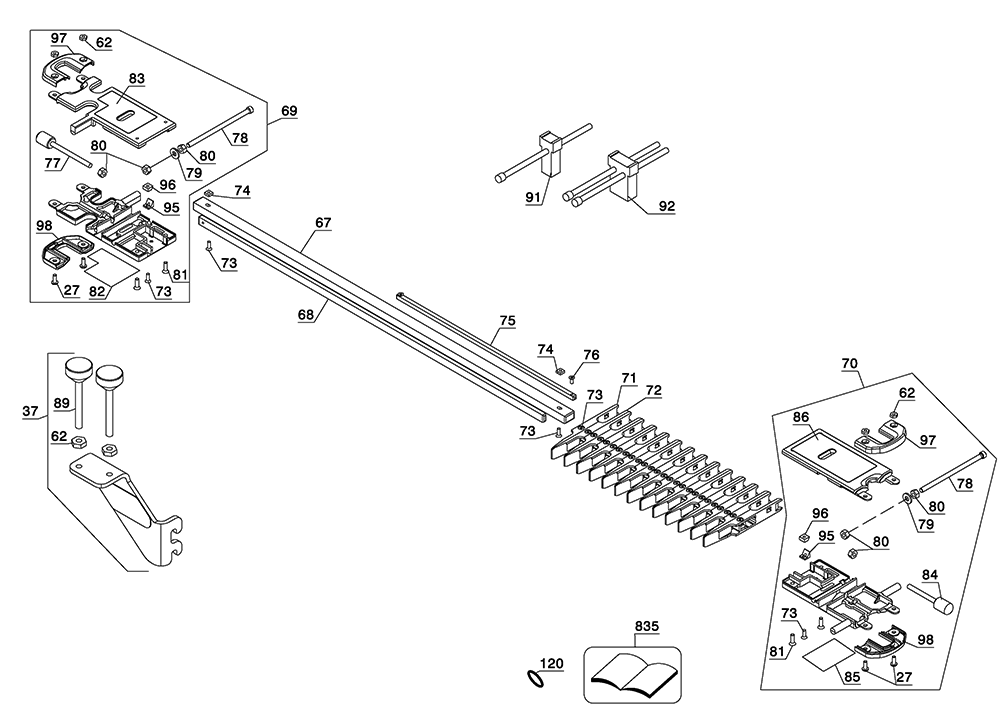

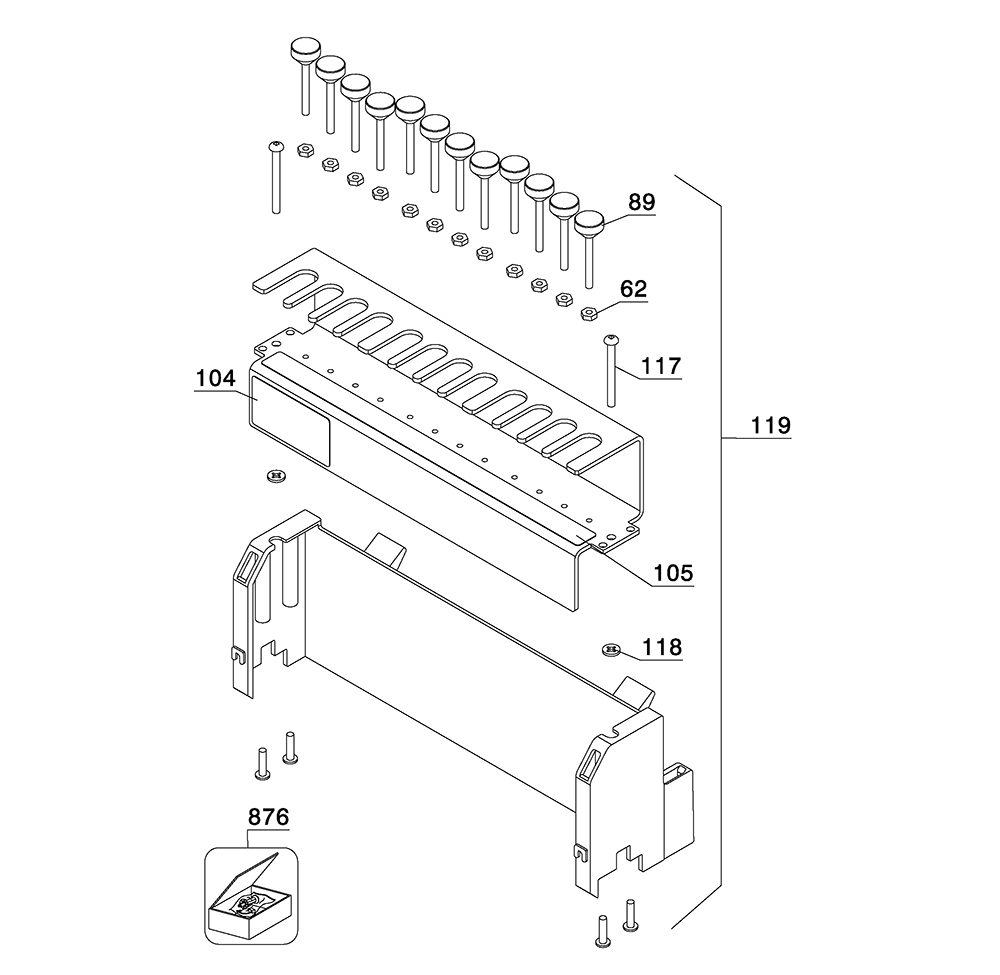

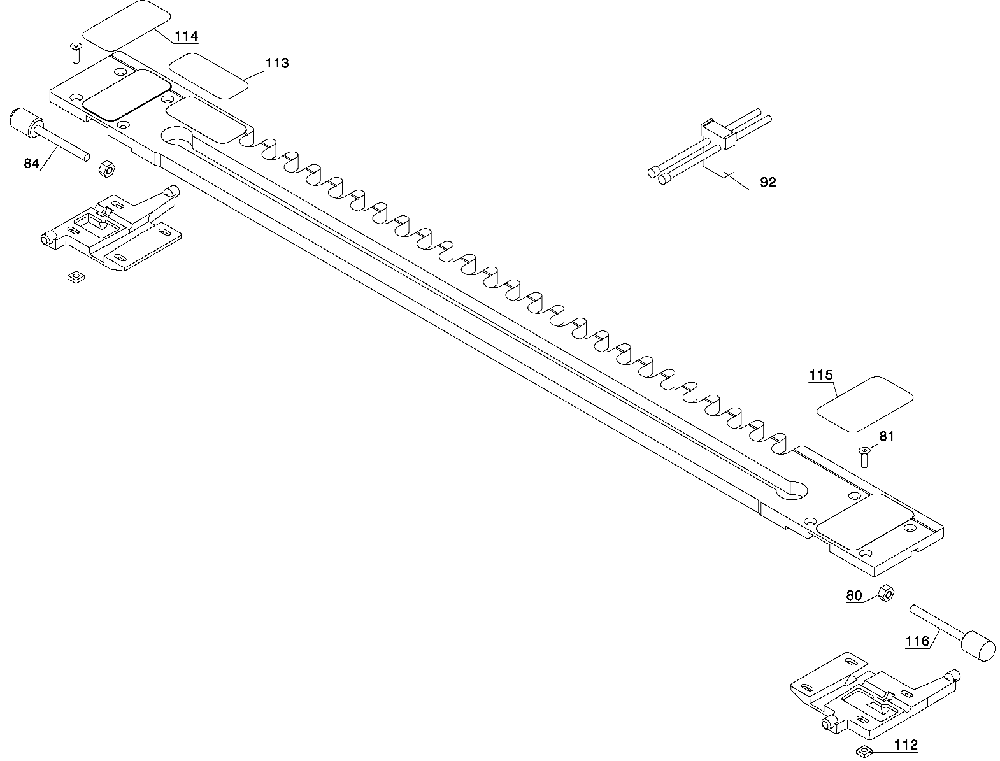

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
2	A20730	EXTRUSION	$113.43
3	A20753	WASHER	$1.98
4	A15019	SCREW	$1.12
9	A20891	CAP	$6.69
10	A20892	CAP	$5.27
11	A20786	SCREW	$1.12
14	A20958	INDICATOR	$2.63
16	A20772	BRACKET	$10.05
17	A20771	BRACKET	$1.12
18	A21005	DUST COVER	$3.61
19	A20766	T-NUT	$2.76
21	A16764	THREADED ROD	$1.39
22	A15661	SPRING	$1.28
23	A23157	SPRING RETAINER	$1.28
24	A25277	CLAMP ASSEMBLY	$38.04
27	A21282	SCREW	$1.12
28	A09542	CLAMP BLOCK	$1.41
29	A19168	END CAP	$1.12
30	A09496	SUPPORT	$1.12
31	A09498	SUPPORT	$10.25
32	A20346	WASHER	$1.12
33	A16762	SPACER	$2.13
34	A19153	KNOB	$3.92
37	A21098	DEPTH STOP	$13.74
38	A15081	SCREW	$1.12
40	A20355	SPEC PLATE	$1.41
41	A20373	ID LABEL	$1.12
51	A20972	CLAMP ASSEMBLY	$79.02
54	A20976	CLAMP ASSEMBLY	$1.12
55	A20371	ID LABEL	$1.12
56	A21245	CHIP DEFLECTOR	$36.95
57	A13201	LEFT BRACKET	$2.98
58	A13202	RIGHT BRACKET	$2.98
59	A13510	KNOB	$1.12
60	99361-10	WASHER	$1.17
61	A20457	SCREW	$1.12
62	406-00	NUT	$1.24
63	A12646	HANDLE	$1.98
64	A10659	SCREW	$1.12
65	A20377	INSTRUCTION LABEL	$2.50
66	A20380	WARNING LABEL	$1.12
67	A09356	CLAMPING BAR	$25.78
68	A13111	BAR	$4.27
68	A09357	BAR	$3.78
69	A12722	BRACKET ASSEMBLY	$31.74
69	A10763	BRACKET ASSEMBLY	$1.98
70	A12723	BRACKET ASSEMBLY	$31.74
70	A10766	BRACKET ASSEMBLY	$1.98
71	A13014	FINGER	$4.96
71	A09451	FINGER	$4.96
72	A13015	FINGER	$4.96
72	A09450	FINGER	$4.96
73	A10317	SCREW	$1.12
74	A10316	SQUARE NUT	$1.12
75	A09358	BAR	$3.78
76	A12883	SCREW	$1.12
77	A13515	THUMB SCREW	$1.12
78	A24059	STOP	$2.20
79	5130830-00	FLAT WASHER	$1.05
80	A14169	NUT	$1.12
81	A20238	SCREW	$1.12
82	A20385	INSTRUCTION LABEL	$1.12
82	A20381	INSTRUCTION LABEL	$1.12
83	A20386	INSTRUCTION LABEL	$1.12
83	A20382	INSTRUCTION LABEL	$1.12
84	A13516	THUMB SCREW	$1.12
85	A20387	INSTRUCTION LABEL	$1.12
85	A20383	INSTRUCTION LABEL	$1.12
86	A20388	INSTRUCTION LABEL	$1.12
86	A20384	INSTRUCTION LABEL	$1.12
89	A24499	KNOB	$2.36
90	A13518	THUMB SCREW	$1.12
91	A21708	STOP ASSY.	$8.70
91	A21709	STOP ASSY.	$8.70
91	A20447	STOP ASSY.	$8.70
91	A20448	STOP ASSY.	$8.70
92	A21707	STOP ASSY.	$16.46
92	A21706	STOP ASSY.	$16.46
92	A20499	STOP ASSY.	$20.54
92	A20500	STOP ASSY.	$20.54
92	A20446	STOP ASSY.	$16.46
92	A20445	STOP ASSY.	$16.46
92	A20450	STOP ASSY.	$16.46
92	A20449	STOP ASSY.	$16.46
95	A09354	WEDGE	$1.41
96	A09355	WEDGE	$2.63
97	A12610	HANDLE HALF	$1.41
98	A22839	HANDLE HALF	$1.41
99	A13728	DRIVER	$5.84
100	A15253	WRENCH	$1.84
101	A20957	LOCK NUT	$1.12
104	A20510	INSTRUCTION LABEL	$1.12
105	A20511	LABEL	$1.41
106	A23681	THREADED INSERT	$1.09
107	A25280	SCREW	$1.36
108	A24444	SPRING	$2.20
109	A11251	ROLL PIN	$1.12
110	A13107	FINGER	$8.40
111	A13108	FINGER	$8.40
112	A14002	SQUARE NUT	$1.12
113	A23267	LABEL	$1.12
114	A23268	LABEL	$1.12
115	A23266	INSTRUCTION LABEL	$1.12
116	A15302	THUMB SCREW	$1.12
117	A13842	SCREW	$1.09
118	A13843	RETAINER WASHER	$1.09
119	A20351	DEPTH GAUGE	$68.20
120	A24496	O-RING	$1.09
835	A20467	DVD	$5.65
835	A20466	GUIDE	$1.62
861	A22444	STORAGE CASE	$151.40
876	A24746	LABEL SET	$2.25
