Porter Cable 7539-Type-2 Router Parts

Porter Cable 7539-Type-2 Router Parts Image

Porter Cable 7539-Type-2 Parts

Download Schematic

Time to buy a new tool?

Porter Cable 7539-Type-2

Speedmatic 3-1/4 HP ...

$382.26

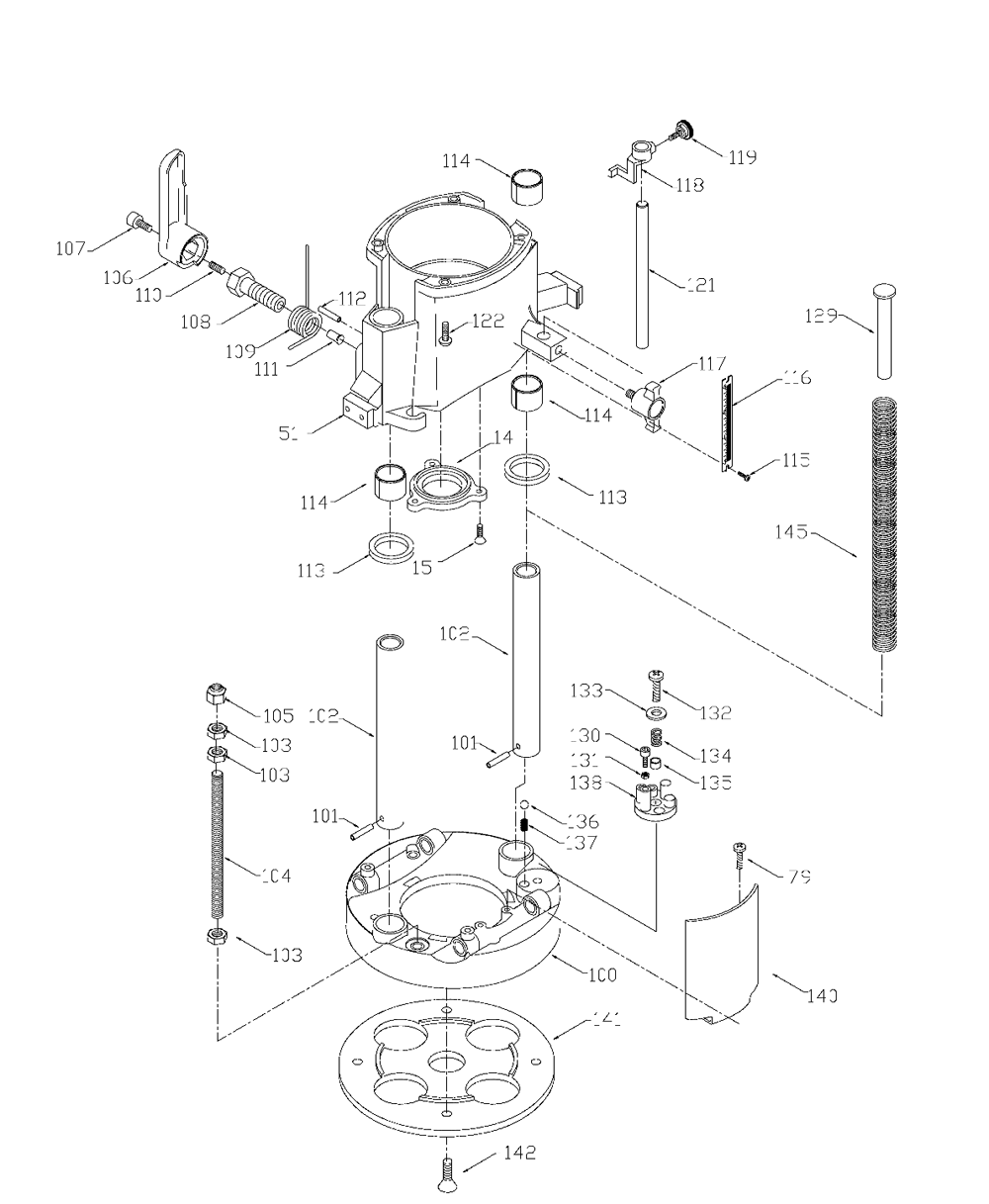

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	874586	ARMATURE-220	$282.82
1	873638	ARMATURE	$136.56
1	875931	FAN	$9.88
2	874587	FIELD-220	$102.98
2	873637	FIELD	$100.83
3	N031634	BRUSH	$3.38
3	698844	BRUSH HOLDER	$4.13
4	876774	SWITCH	$30.64
5	825713	115V CORD	$26.67
5	879758	CORD-EURO	$24.98
6	698874	BRUSH INSULATOR	$1.36
7	698872	SPRING	$7.92
9	881098	SPEED CONTROL (220)	$132.14
9	875087	SPEED CONTROL	$114.72
9	877288	INSULATOR	$2.55
10	852310	SCREW	$1.36
11	330003-75	BEARING, BALL	$9.12
11	146555-01	BEARING, BALL	$16.32
12	874160	CONTROL LEVER	$3.01
14	698811	BRG RETAINER	$4.13
15	849819	SCREW	$1.36
51	877480	MOTOR FRAME	$126.35
52	A22557	HOUSING	$35.56
52	884854	MOTOR HSG/BEARING	$51.14
52	A15259	COVER	$10.41
56	5140071-52	HANDLE MOUNT	$5.92
57	885318	HANDLE SET R.H.	$15.80
57	698847	HANDLE SET-LH	$15.80
78	879678	SCREW	$1.18
79	850596	SCREW	$1.36
80	872766	SPRING-STRAIN RELVR	$1.36
81	859069	PLUG	$3.49
82	874514	SCREW	$1.36
83	698807	CHUCK	$39.37
83	5140103-66	COLLET ASSY.	$24.86
83	823030	SNAP-RING	$1.36
83	876671	COLLET 1/2 INCH	$15.62
83	875893	COLLET NUT	$11.35
84	874468	LEAD	$1.36
87	885373	PLATE	$2.93
88	892778	SCREW	$1.84
89	872535	WASHER	$5.28
90	872519	SCREW	$1.36
91	882703	SCREW	$1.36
94	899411	SCREW	$1.09
95	872534	WASHER	$1.36
96	874845	BUSHING KIT	$4.13
98	689032	CONNECTOR	$1.36
100	873650	BASE & COLUMN ASSY	$107.12
101	873311	ROLLED PIN	$1.28
102	698827	COLUMN	$25.13
103	800190	NUT	$1.36
104	698842	ROD-UPSTART	$4.37
105	698835	LOCK NUT	$1.36
106	892552	LEVER	$4.55
107	872242	SCREW	$1.36
108	699675	CLAMP SCREW	$11.61
109	892531	SPRING SS/A	$4.88
110	699563	SET SCREW	$1.36
111	699552	CLAMP PLUG	$2.74
112	872729	ROLLED PIN	$1.36
113	865090	SEAL	$5.96
114	698814	BUSHING	$5.12
115	873499	SCREW	$1.36
116	884824	SCALE 230V	$6.45
116	698899	SCALE	$3.13
117	897162	KNOB	$1.77
118	699988	POINTER	$4.13
119	882054	THUMB SCREW	$1.36
121	699991	DEPTH ROD	$6.12
122	872520	SCREW	$1.36
129	899725	INSERT,SPRING	$1.44
130	872659	SCREW	$1.36
131	862641	NUT	$2.18
132	800191	SCREW	$1.36
133	685533	WASHER	$1.28
134	850552	SPRING	$1.36
135	895591	WASHER	$1.18
136	860687	BALL	$1.43
138	698805	TURRET	$5.12
140	872762	SHIELD	$3.72
141	695870	BASE-SUB	$11.51
142	800539	SCREW	$1.36
145	698829	SPRING	$2.74
183	802648	WASHER	$1.36
184	848148	SCREW	$1.36
185	849314	TERM	$1.36
188	889639	FILTER	$105.27
189	A22709	OPEN-END WRENCH	$3.96
189	A22709	OPEN-END WRENCH	$3.96
