Porter Cable 75182-Type-3 Router Parts

Porter Cable 75182-Type-3 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

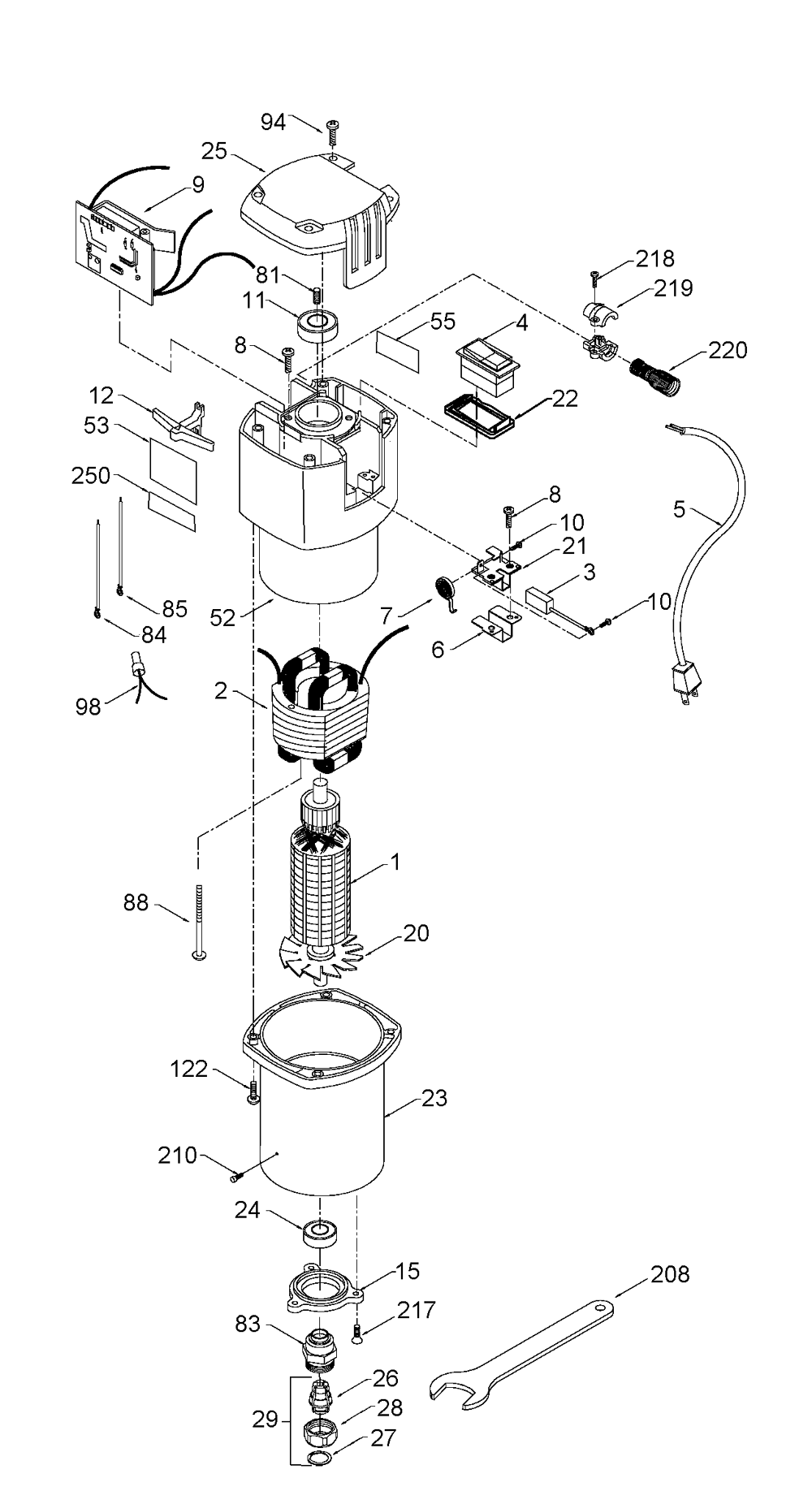

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	873638	ARMATURE	$136.56
4	A22805	ROCKER SWITCH	$27.27
2	873637	FIELD	$100.83
23	A23246	LOWER HOUSING ASSY	$46.55
3	N031634	BRUSH	$3.38
53	A22800	SPEC PLATE	$1.12
250	A22976	WARNING LABEL	$1.41
5	875691	CORDSET	$22.93
6	698874	BRUSH INSULATOR	$1.36
7	698872	SPRING	$7.92
8	882703	SCREW	$1.36
9	875087	SPEED CONTROL	$114.72
9	877288	INSULATOR	$2.55
10	852310	SCREW	$1.36
11	330003-75	BEARING, BALL	$9.12
12	874160	CONTROL LEVER	$3.01
15	698811	BRG RETAINER	$4.13
20	875931	FAN	$9.88
21	698844	BRUSH HOLDER	$4.13
22	873222	PLATE	$2.74
24	146555-01	BEARING, BALL	$16.32
25	A04582	COVER	$10.87
26	876670	COLLET 3/8 INCH	$18.12
26	876669	COLLET 1/4 INCH	$15.62
26	876671	COLLET 1/2 INCH	$15.62
27	823030	SNAP-RING	$1.36
28	875893	COLLET NUT	$11.35
52	A22556	HOUSING	$35.56
55	A24391	WARNING LABEL	$1.12
81	859069	PLUG	$3.49
83	698807	CHUCK	$39.37
84	874473	LEAD	$4.96
85	874535	LEAD	$5.29
88	892778	SCREW	$1.84
94	899411	SCREW	$1.09
98	689032	CONNECTOR	$1.36
122	872520	SCREW	$1.36
208	A22709	OPEN-END WRENCH	$3.96
210	800980	PIN	$1.36
217	849819	SCREW	$1.36
218	874514	SCREW	$1.36
219	874845	BUSHING KIT	$4.13
220	872766	SPRING-STRAIN RELVR	$1.36
