Porter Cable 75182-Type-1 Router Parts

Porter Cable 75182-Type-1 Parts

Download Schematic

Time to buy a new tool?

Porter Cable 75182-Type-1

Variable Speed Route...

$325.89

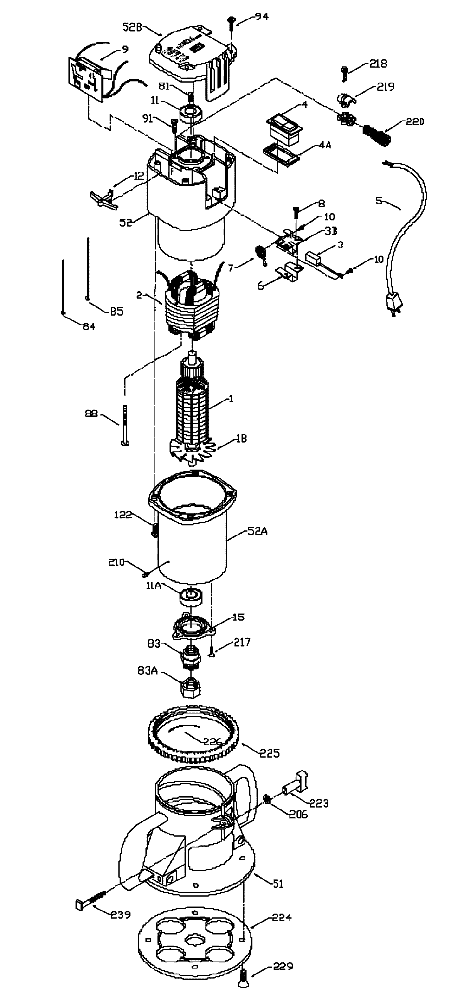

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	873638	ARMATURE	$136.56
1	875931	FAN	$9.88
2	873637	FIELD	$100.83
3	N031634	BRUSH	$3.38
3	698844	BRUSH HOLDER	$4.13
4	873227	ROCKER SWITCH	$27.67
4	873222	PLATE	$2.74
5	875691	CORDSET	$22.93
5	EC142	Power Tools Replacement Electical Cords (SJO) 14...	$16.19
6	698874	BRUSH INSULATOR	$1.36
7	698872	SPRING	$7.92
8	882703	SCREW	$1.36
9	875087	SPEED CONTROL	$114.72
9	877288	INSULATOR	$2.55
10	852310	SCREW	$1.36
11	330003-75	BEARING, BALL	$9.12
11	146555-01	BEARING, BALL	$16.32
12	874160	CONTROL LEVER	$3.01
15	698811	BRG RETAINER	$4.13
52	A22556	HOUSING	$35.56
52	874476SV	LOWER HOUSING ASSY	$79.15
52	A04582	COVER	$10.87
81	859069	PLUG	$3.49
83	698807	CHUCK	$39.37
83	876671	COLLET 1/2 INCH	$15.62
83	875893	COLLET NUT	$11.35
83	823030	SNAP-RING	$1.36
83	876669	COLLET 1/4 INCH	$15.62
83	875893	COLLET NUT	$11.35
83	823030	SNAP-RING	$1.36
83	876670	COLLET 3/8 INCH	$18.12
83	875893	COLLET NUT	$11.35
83	823030	SNAP-RING	$1.36
84	874473	LEAD	$4.96
85	874535	LEAD	$5.29
88	892778	SCREW	$1.84
91	882703	SCREW	$1.36
94	899411	SCREW	$1.09
122	872520	SCREW	$1.36
210	800980	PIN	$1.36
217	849819	SCREW	$1.36
218	874514	SCREW	$1.36
219	874845	BUSHING KIT	$4.13
220	872766	SPRING-STRAIN RELVR	$1.36
240	689032	CONNECTOR	$1.36
241	A22709	OPEN-END WRENCH	$3.96
241	A22709	OPEN-END WRENCH	$3.96
