Porter Cable 7301-Type-1 Laminate Trimmer Parts

Porter Cable 7301-Type-1 Laminate Trimmer Parts Image

Porter Cable 7301-Type-1 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

Page-1

Page-2

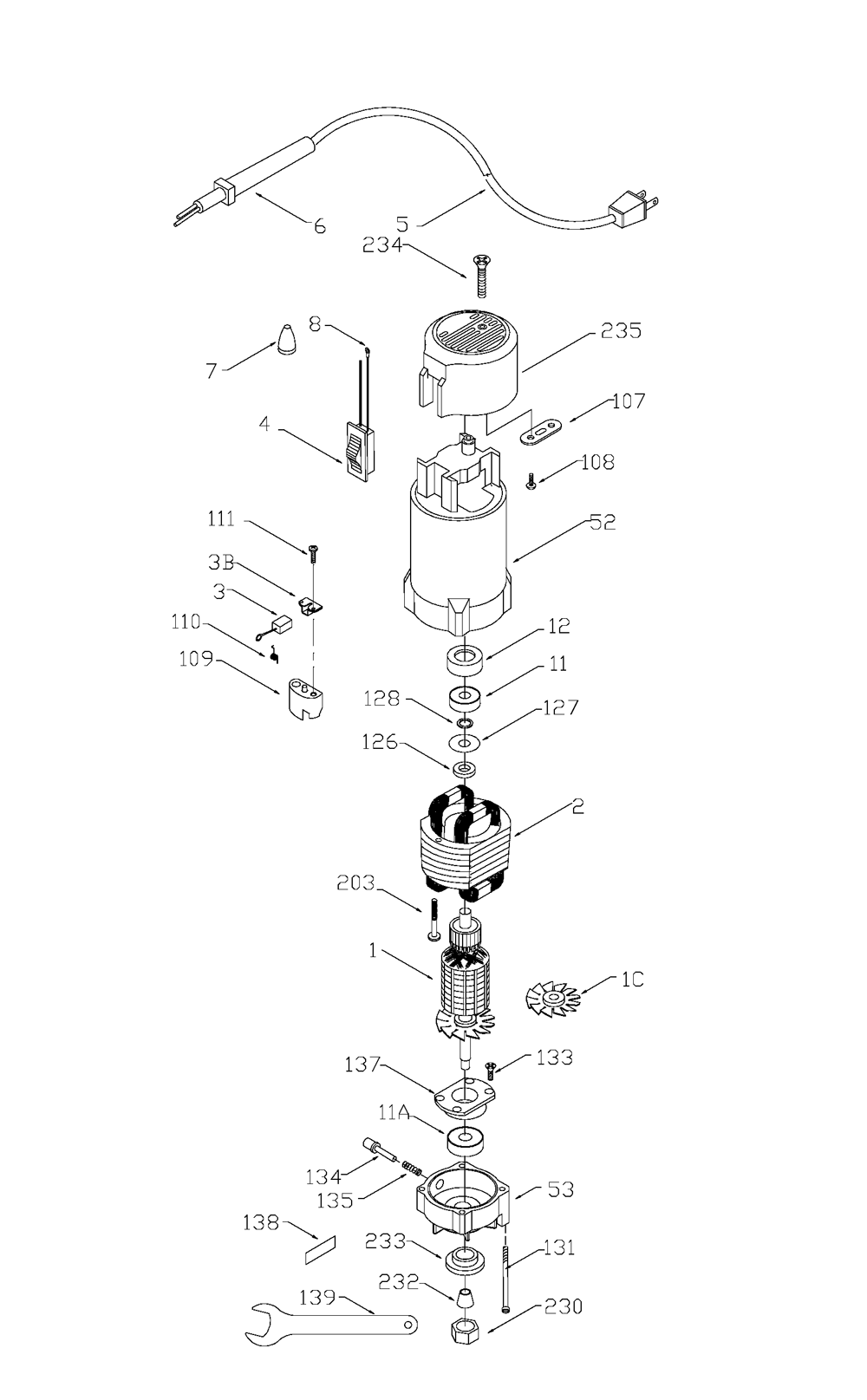

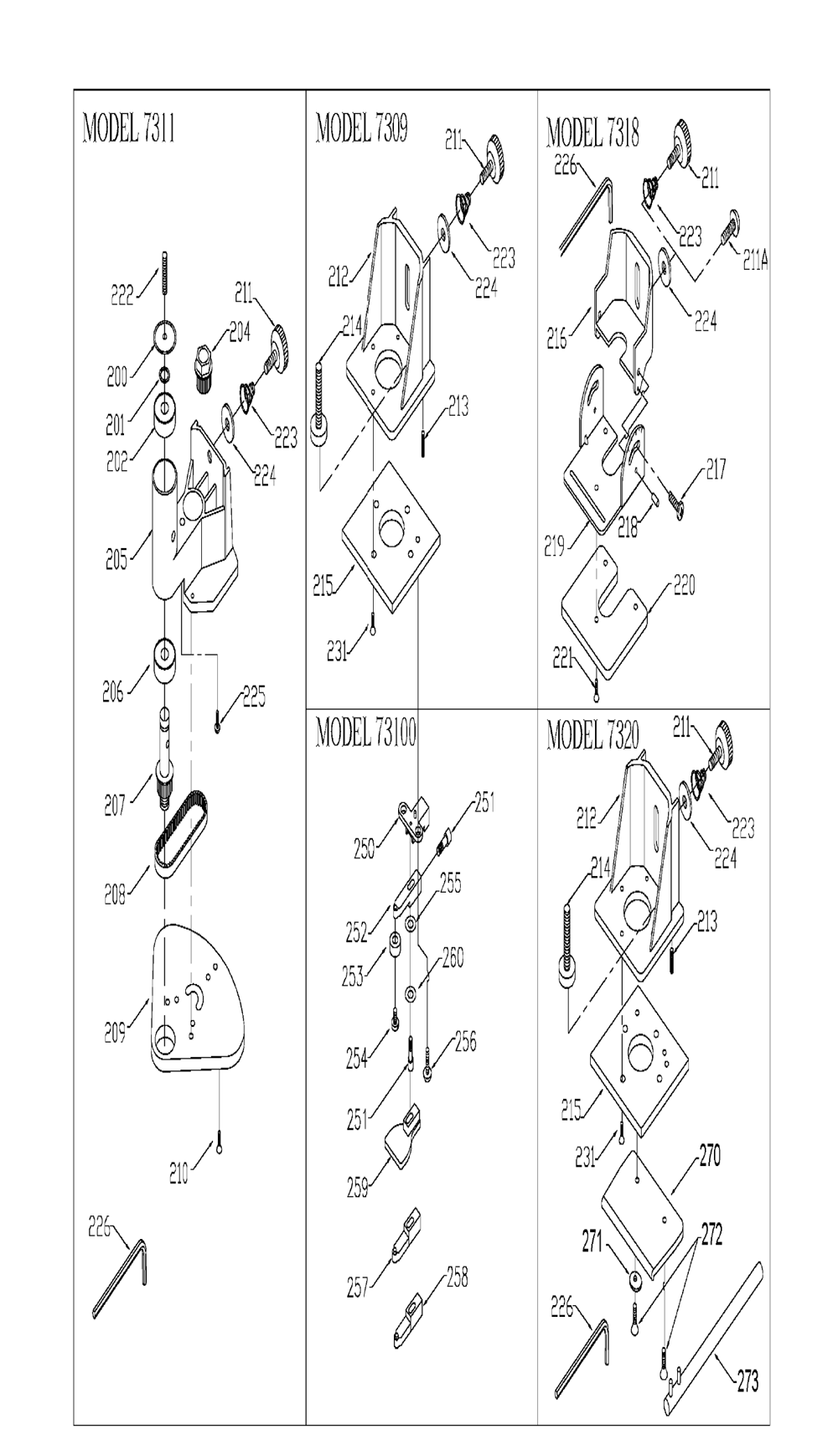

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	879364SV	ARMATURE	$70.51
1	901706	FAN	$1.91
1	845339	FAN	$11.43
1	882248	ARMATURE 220V	$90.81
2	891117	FIELD	$40.22
4	911374	SWITCH	$5.12
3	888028	BRUSH/HLDR ASSY 220V	$10.64
5	330072-97	CORD/10 FT/18-2	$19.23
5	891461	CORD & PLUG	$30.94
3	690741	BRUSH	$5.69
6	810716	RELIEVER	$4.13
3	690742	BRUSH HOLDER	$10.31
7	682063	CONNECTOR VS	$1.36
12	694432	BEARING MOUNT	$1.36
52	887284	MOTOR HSG.	$32.82
53	873678	FRONT HOUSING	$23.15
53	874536	HELICOIL-1/4-20X3/8	$1.36
11	855284	BEARING	$11.21
11	874538SV	BALL BEARING	$4.74
109	690740	BRUSH HOLDER BASE	$2.41
110	868775	BRUSH SPRING	$2.25
111	854805	SCREW	$1.36
126	698394	INSULATING TUBE	$1.36
127	695893	WASHER	$1.36
131	694015	SCREW	$1.36
134	698708	SPINDLE LOCK	$1.91
135	698709	SPRING	$1.36
137	874537	GUIDE RETAINER	$2.49
138	885833	CAUTION LAB-SPIN LCK	$1.28
200	698928	CAP	$2.28
201	698165	SNAP-RING	$1.36
202	883096	BEARING	$14.01
203	695185	FIELD SCREW	$1.36
204	699952SV	DRIVE PULLEY	$16.45
205	874731	BASE CASTING	$35.35
207	698704	SHAFT ASSY	$40.22
207	880822	SHAFT ASSY	$42.12
208	698419	BELT	$16.45
209	875051	SUB BASE	$26.18
211	876641	KNOB KIT	$4.73
212	893128	BASE	$18.32
213	875497	SET-SCREW	$2.17
214	874017	THUMB SCREW	$6.11
216	698773	BASE	$32.76
217	872944	SCREW	$1.36
219	882026	BRACKET	$13.73
220	698714	SUB BASE	$26.86
222	881034	SET-SCREW	$7.28
223	876676	SAFETY SPRING NV50A1/AP/AA	$1.36
225	694772	SCREW	$1.36
232	889516	6 MM COLLET	$22.18
234	872708	SCREW	$1.36
235	891223	END CAP	$5.12
250	874145	BASE	$8.39
251	873649	SCREW.	$1.09
252	699909	GUIDE	$16.51
253	872848	ROLLER	$3.14
254	872847	SCREW	$7.92
256	689229	SCREW	$1.36
257	699911	BEVEL GUIDE	$3.49
258	699907	STRAIGHT GUIDE	$3.49
259	699913	GUIDE	$3.53
261	843076	WRENCH HEX 9/64X23/8	$1.36
270	912616	GUIDE PLATE	$9.31
272	893071	SCREW	$1.18
273	913050	WRENCH	$2.93
861	872827	CARRY CASE	$77.58
861	892898	CARRYING CASE	$42.64
107	861434	CORD CLAMP	$1.36
108	882185	SCREW MACHINE STEEL	$1.36
128	849328	SPACER	$1.36
133	803157	SCREW	$1.36
139	683875	WRENCH OPEN END	$12.36
206	330003-64	BALL BEARING	$8.54
210	802289	SCREW	$1.36
215	893130	SUB BASE	$7.55
218	698775	PIN	$1.36
221	802768	SCREW	$1.36
224	859359	WASHER	$1.36
226	698110	ALLEN WRENCH T2	$1.28
226	802876	ALLEN WRENCH	$3.78
230	691257	NUT COLLET	$6.49
231	802289	SCREW	$1.36
231	873982	SCREW	$1.36
232	684718	COLLET	$9.88
233	849826	RETAINER	$8.80
255	802995	WASHER	$1.36
256	894223	SCREW	$1.54
260	802648	WASHER	$1.36
271	878513	ECCENTRIC	$4.24
