Porter Cable 6902-Type-1 Router Parts
Porter Cable 6902-Type-1 Parts
Download Schematic
Time to buy a new tool?
Porter Cable 6902-Type-1
1-3/4 HP Router Moto
...
$138.57

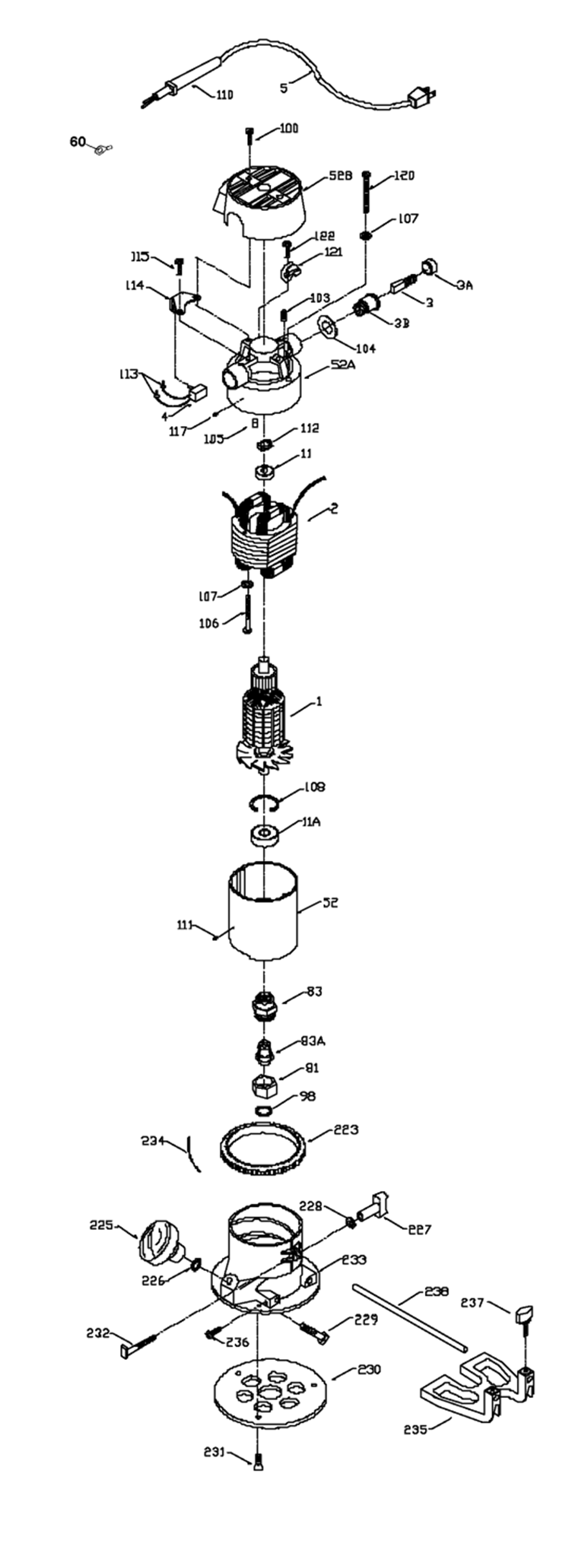

Tool Diagram
(Click image to Zoom in)
View larger Image
ToolspartsPro
Fig.
Part #
Part Name
Price
Qty.
1
874588
ARMATURE-220
$151.99
1
682058
ARMATURE 115V
$158.53
2
874589
FIELD-220
$97.75
2
803104
LEAD
$5.62
3
N031652
BRUSH
$9.10
3
803483
BRUSH CAP
$2.25
3
873497
BRUSH HOLDER
$10.64
4
842606SV
SWITCH
$20.64
4
876320
SWITCH.
$24.81
5
879758
CORD-EURO
$24.98
5
A11126
CORDSET
$15.80
11
855284
BEARING
$11.21
11
858464
BEARING
$30.99
52
903967SV
CASING & PINS FRONT
$26.19
52
899192SV
REAR HOUSING
$24.81
52
888727
MOTOR HOUSING CAP
$14.29
60
849314
TERM
$1.36
81
875893
COLLET NUT
$11.35
83
872793
CHUCK
$37.27
83
876671
COLLET 1/2 INCH
$15.62
83
876669
COLLET 1/4 INCH
$15.62
83
876670
COLLET 3/8 INCH
$18.12
98
823030
SNAP-RING
$1.36
100
878813
SCREW
$1.28
103
804360
SCREW
$1.36
104
803496
WASHER
$1.36
105
842597
PLUG
$1.36
106
863393
SCREW
$7.70
107
802430
LOCKWASHER
$1.36
108
802426
RING
$2.17
111
800835
PIN
$1.36
112
842610
SPRING-PRELOAD
$1.56
113
682063
CONNECTOR VS
$1.36
114
842598
BRACKET SWITCH
$2.74
114
876396
BRACKET
$7.28
115
802764
SCREW
$1.36
117
801374
SCREW
$1.36
120
681260
SCREW & WASHER
$1.09
121
874137
CORD CLAMP
$5.96
122
877817
SCREW
$1.36
239
849314
TERM
$1.36
241
696696
SCREW
$5.12
856
A22709
OPEN-END WRENCH
$3.96
856
883356
BIT
$54.09
856
A22709
OPEN-END WRENCH
$3.96
856
683157
WRENCH OPEN END
$18.91
856
683157
WRENCH OPEN END
$18.91
861
902829
CARRYING CASE
$48.13
