Porter Cable 55160 Dovetail & Template Parts

Porter Cable 55160 Parts

Download Schematic

Time to buy a new tool?

Porter Cable 55160

16 Inch Omnijig - Do...

$438.75

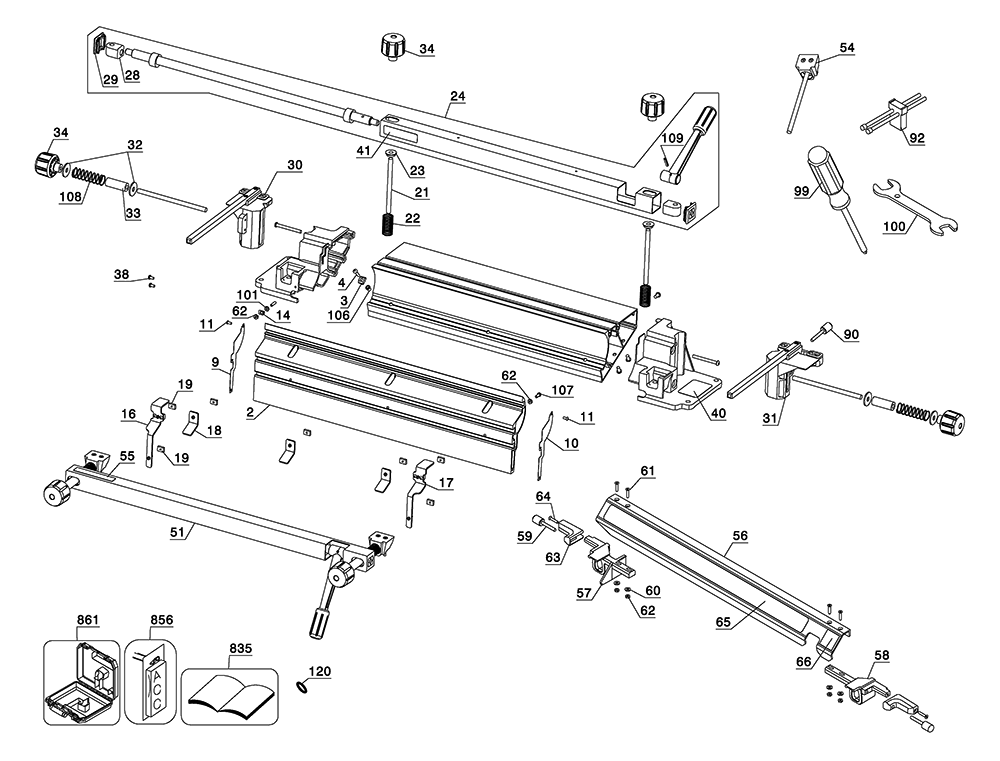

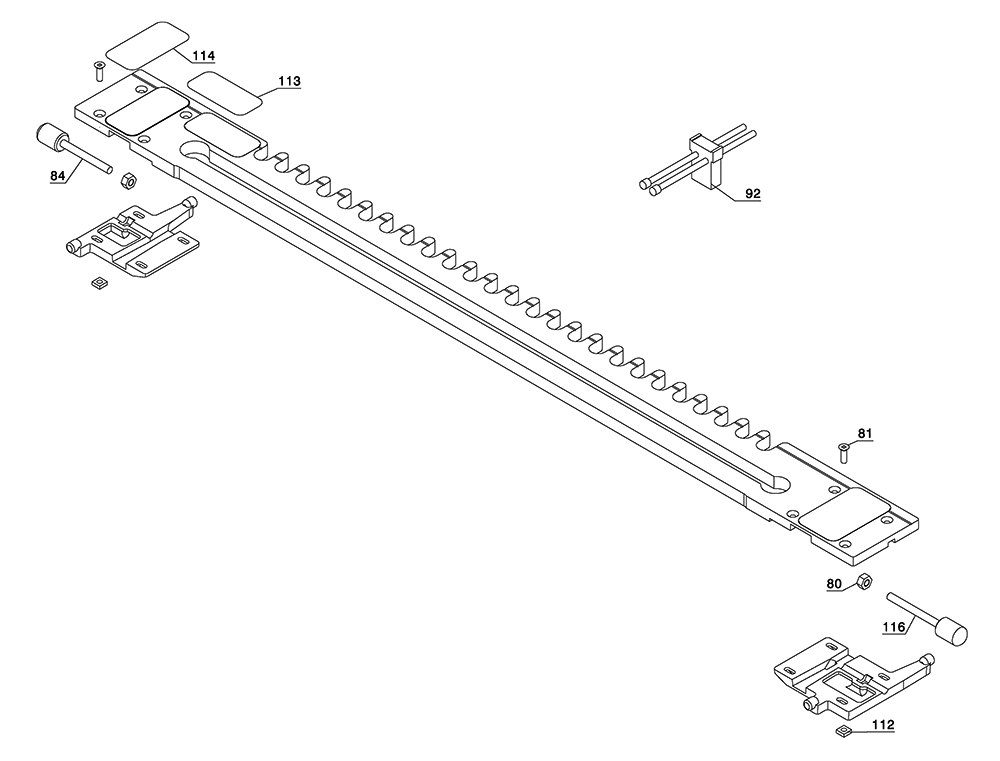

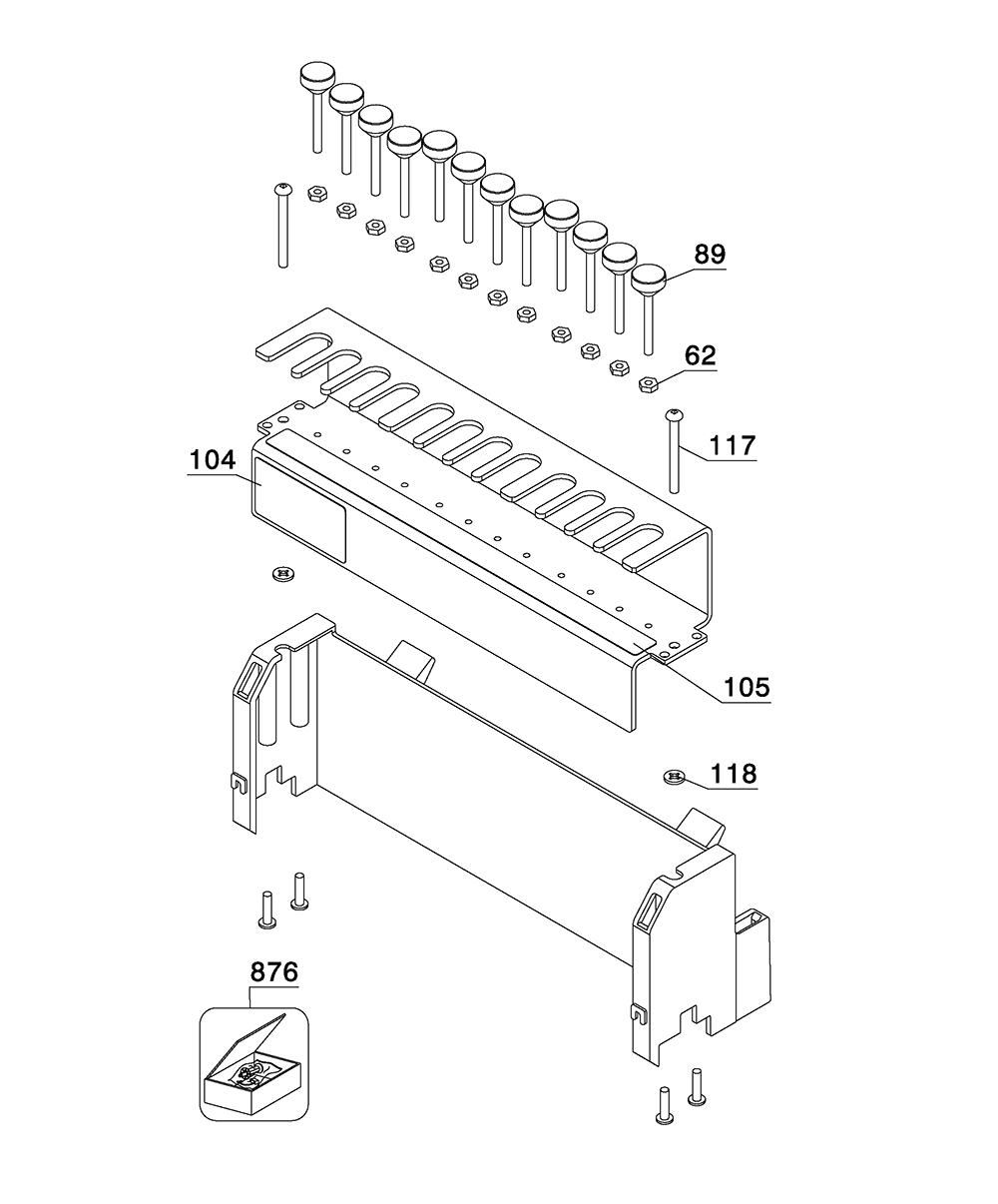

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
2	A20731	EXTRUSION	$91.09
3	A20753	WASHER	$1.98
4	A15019	SCREW	$1.12
9	A20891	CAP	$6.69
10	A20892	CAP	$5.27
11	A20786	SCREW	$1.12
14	A20958	INDICATOR	$2.63
16	A20772	BRACKET	$10.05
17	A20771	BRACKET	$1.12
18	A21005	DUST COVER	$3.61
19	A20766	T-NUT	$2.76
21	A16764	THREADED ROD	$1.39
22	A15661	SPRING	$1.28
23	A23157	SPRING RETAINER	$1.28
24	A25278	CLAMP ASSEMBLY	$38.04
28	A09542	CLAMP BLOCK	$1.41
29	A19168	END CAP	$1.12
30	A09496	SUPPORT	$1.12
31	A09498	SUPPORT	$10.25
32	A20346	WASHER	$1.12
33	A16762	SPACER	$2.13
34	A19153	KNOB	$3.92
38	A15081	SCREW	$1.12
40	A20374	SPEC PLATE	$1.28
41	A20373	ID LABEL	$1.12
51	A21254	CLAMP ASSEMBLY	$71.27
54	A20976	CLAMP ASSEMBLY	$1.12
55	A20371	ID LABEL	$1.12
56	A14505	CHIP DEFLECTOR	$30.27
57	A13201	LEFT BRACKET	$2.98
58	A13202	RIGHT BRACKET	$2.98
59	A13510	KNOB	$1.12
60	99361-10	WASHER	$1.17
61	A20457	SCREW	$1.12
62	406-00	NUT	$1.24
63	A12646	HANDLE	$1.98
64	A10659	SCREW	$1.12
65	A20378	INSTRUCTION LABEL	$1.98
66	A20380	WARNING LABEL	$1.12
80	A14169	NUT	$1.12
81	A20238	SCREW	$1.12
84	A13516	THUMB SCREW	$1.12
89	A24499	KNOB	$2.36
90	A13518	THUMB SCREW	$1.12
92	A20500	STOP ASSY.	$20.54
92	A20499	STOP ASSY.	$20.54
99	A13728	DRIVER	$5.84
100	A15253	WRENCH	$1.84
101	A20957	LOCK NUT	$1.12
104	A24407	LABEL	$1.56
105	A24405	LABEL	$1.62
106	A23681	THREADED INSERT	$1.09
107	A12959	SCREW	$1.12
108	A24444	SPRING	$2.20
109	A11251	ROLL PIN	$1.12
112	A14002	SQUARE NUT	$1.12
113	A23267	LABEL	$1.12
114	A23268	LABEL	$1.12
116	A15302	THUMB SCREW	$1.12
117	A13842	SCREW	$1.09
118	A13843	RETAINER WASHER	$1.09
120	A24496	O-RING	$1.09
835	A20467	DVD	$5.65
861	A22444	STORAGE CASE	$151.40
876	A24746	LABEL SET	$2.25
