Porter Cable 424MAG-Type-2 Electric Saw Parts

Porter Cable 424MAG-Type-2 Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

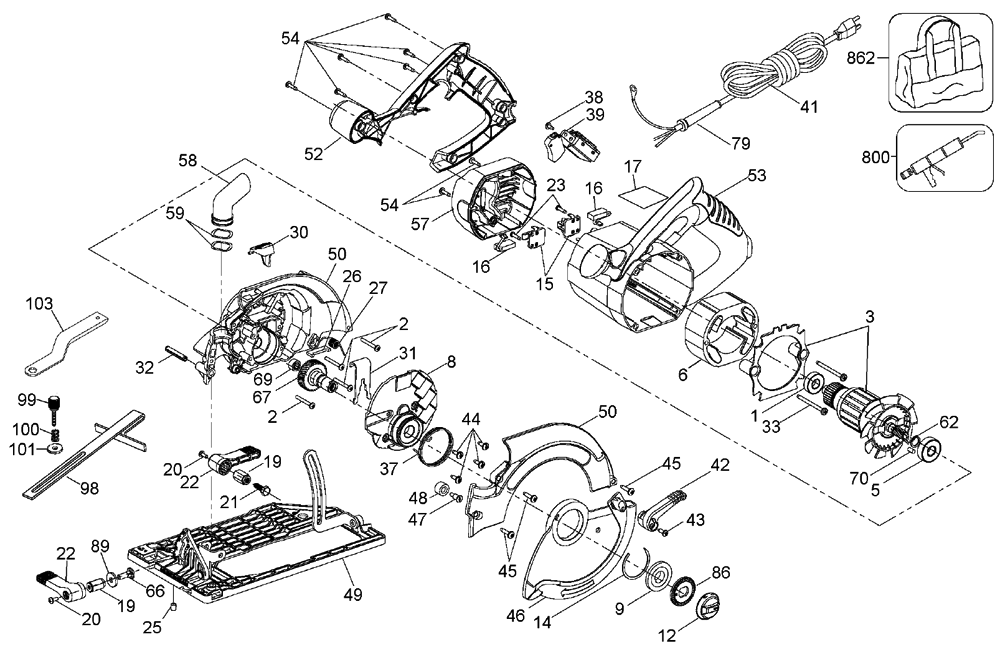

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	886333SV	BALL BEARING	$5.12
2	864721	SCREW	$1.36
3	A01959	SS/A-ARMATURE	$74.76
5	879010	BEARING	$21.21
6	A01961	SS/A-FIELD (BRAKE)	$59.86
8	913223	GEARBOX COVER	$13.97
9	880253	INNER BLADE FLANGE	$2.74
12	A02179	BLADE BOLT	$2.10
12	648112-01	BOLT ASSY	$12.85
14	879289	SNAP RING	$1.21
15	A03069	BRUSH HOLDER	$7.41
16	A05003	BRUSH	$3.49
17	648670-00	NAMEPLATE	$1.56
19	910619	NUT	$2.36
20	802764	SCREW	$1.36
21	907860	HEX BOLT	$1.59
22	907828	ADJUSTING LEVER	$1.59
23	893792	SCREW	$1.18
25	876016	SET SCREW	$1.28
26	909936	FELT SEAL	$1.58
27	911907	SPRING	$1.58
30	907815	SPINDLE LOCK BUTTON	$1.58
31	A03141	LOCK PLATE	$2.17
32	A05556	ROLL PIN	$1.21
33	872906	FIELD SCREW	$1.36
37	A03692	SPRING	$2.84
38	882185	SCREW MACHINE STEEL	$1.36
39	A01954	SS/A-SWITCH 20A (BRA	$19.89
41	A05055	CORDSET	$26.39
42	907855	ADJUSTING LEVER	$1.59
44	886538	SCREW	$1.18
45	890753	SCREW	$1.18
46	A15710	LOWER GUARD	$24.00
47	610134-00	SCREW, SHOULDER	$1.12
48	389132-00	BUMPER	$1.24
49	A01965	SS/A-BASE ASSEMBLY	$34.48
50	A05808	GEAR HSG ASSY	$59.49
52	907853	HANDLE	$10.54
53	907852	MOTOR HSG	$24.31
54	879678	SCREW	$1.18
57	907822	MOTOR CAP	$5.12
58	908792-01	DUST TUBE	$5.58
59	881171	LOAD WASHER	$1.36
62	684179	RETAINING RING	$1.10
66	913225	SCREW	$1.59
67	654842-00	SS/A-JACKSHAFT ASSEM	$65.05
69	684188	BEARING	$5.69
70	810425	PLUG	$1.36
79	901266	STRAIN RELIEVER	$1.77
86	634988-00	WASHER	$2.72
89	859359	WASHER	$1.36
99	842935	SCREW	$3.49
100	823383	SPRING	$1.36
101	802318	WASHER	$1.36
103	145378-01	WRENCH	$2.68
800	878499	TUBE GREASE	$9.00
800	879751	LUBRICANT 4 LBS	$52.48
