Porter Cable 390 Electric Sander & Polisher Parts

Porter Cable 390 Parts

Download Schematic

Time to buy a new tool?

Porter Cable 390

5 Inch Low Profile R...

$106.11

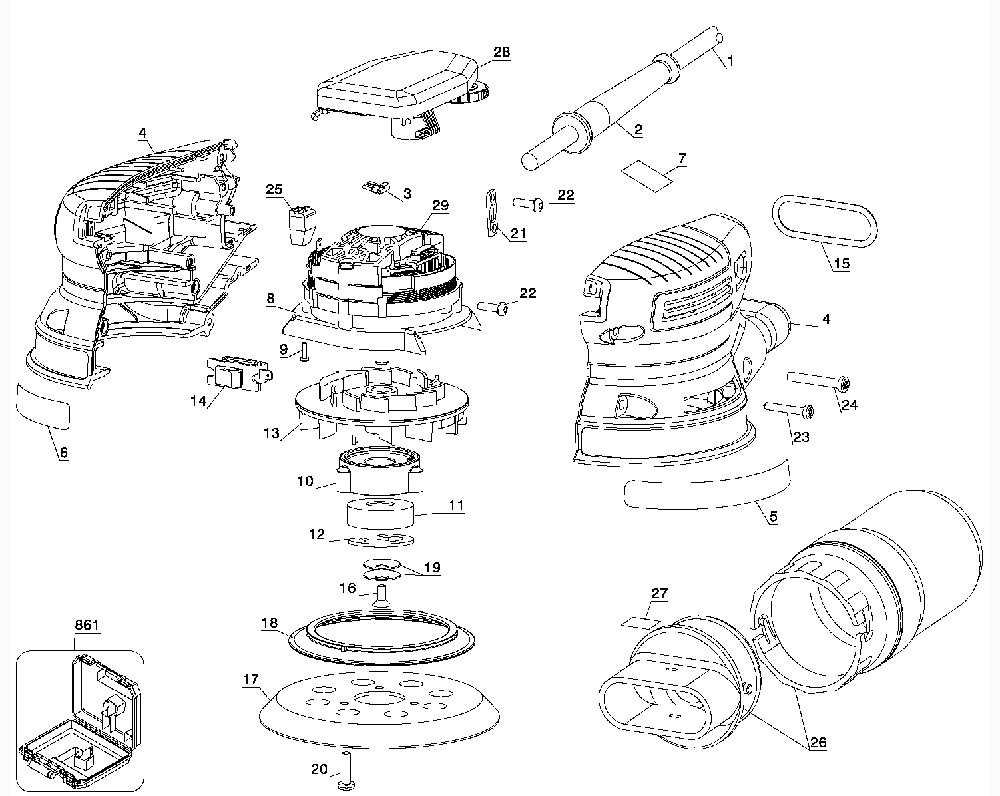

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	330072-98	CORD/8FT/18-2SJ	$11.53
1	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
2	330005-01	PROTECTOR, CORD	$4.63
2	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
3	445964-00	RECEPTACLE	$1.24
4	A20155	CLAMSHELL SET	$23.26
5	A20156	ID LABEL	$1.21
6	A20157	SPEC PLATE	$1.21
7	A26745	WARNING LABEL	$1.09
8	A20160	BAFFLE	$1.70
9	330019-70	SCREW	$1.09
10	A22189SV	BEARING RETAINER	$11.28
11	330003-75	BEARING, BALL	$9.12
12	802426	RING	$2.17
13	650976-00	FAN	$9.66
14	A23716	SWITCH	$2.30
15	56194-00	RING, O	$1.24
16	098012-11	MACH SCREW	$1.24
17	151281-08	PAD	$18.22
17	RSP26	5 Inch Sander Pad - Hook and Loop Replaces Dewal...	$9.99
17	SP390001	5 Inch Sander Pad - Hook and Loop Replaces Porte...	$15.99
18	A26817	BRAKE	$4.65
18	SP390001-PC	Dust Collector Seal / Sanding Pad Replacement Br...	$8.99
19	151652-00	WASHER, CONE	$1.40
20	158472-00	SCREW	$1.24
21	329301-00	CLAMP, CORD	$1.24
22	330019-02	SCREW, PLASTITE	$1.23
23	330019-05	SCREW, PLASTITE	$1.24
24	330019-42	SCREW	$1.12
25	650974-00	WIRE NUT	$1.22
26	A22897SV	DUST BAG ASSY	$18.05
27	A16309	WARNING LABEL	$1.09
28	A27372	CONTROL MODULE	$109.40
29	A27371	MOTOR ASSEMBLY	$81.04
861	A22901	KITBOX	$25.90
