Porter Cable 362V-Type-10 Electric Sander & Polisher Parts

Porter Cable 362V-Type-10 Electric Sander & Polisher Parts Image

Porter Cable 362V-Type-10 Parts

Download Schematic

Time to buy a new tool?

Porter Cable 362V-Type-10

4 Inch X 24 Inch VS ...

$268.88

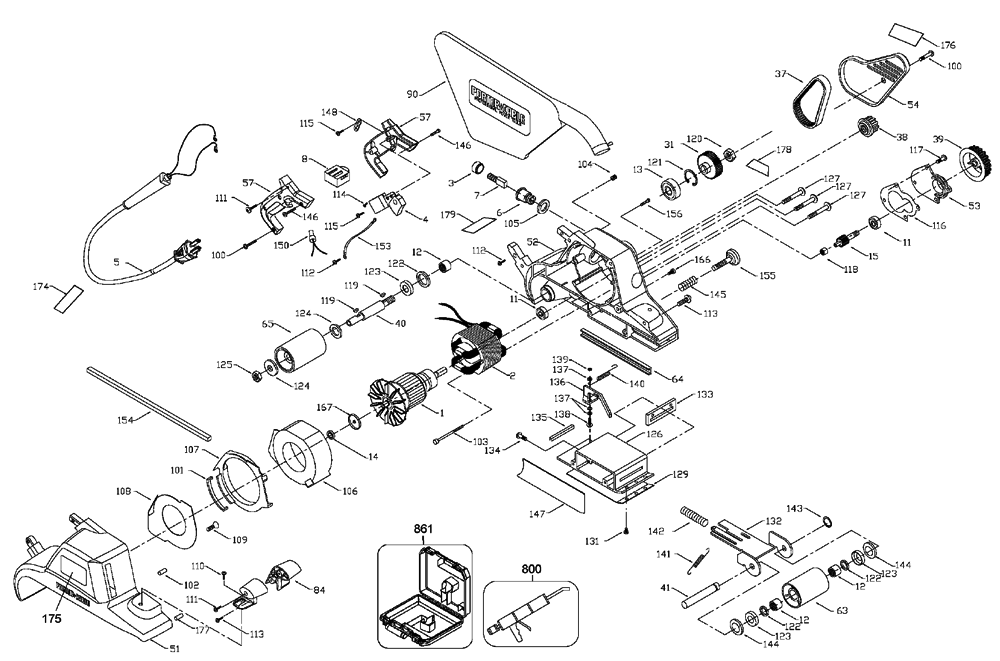

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	909832	ARMATURE	$106.55
2	887416	FIELD (360VS 362VS)	$78.43
3	803483	BRUSH CAP	$2.25
4	A22819	SWITCH	$26.26
5	882313	CORD	$21.61
6	873497	BRUSH HOLDER	$10.64
7	N031635	BRUSH & SPRING	$4.64
8	883201	SWITCH VS(360/2 VS)	$54.65
11	803876SV	BEARING	$4.34
12	804211	BEARING,NEEDLE	$9.88
13	803846SV	BEARING	$4.34
14	883202SV	BEARING	$5.60
15	D883500	PINION	$13.32
31	896468	GEAR	$19.27
37	903809	BELT	$17.44
38	903840	DRIVE PULLEY	$5.78
39	904252	DRIVEN PULLEY	$17.44
40	883196	SHAFT DRIVE PULLEY 4	$16.58
41	885104	PULLEY SHAFT 4	$28.06
51	A22833	RH FRAME	$67.71
52	A22835	LH FRAME & COVE	$84.60
53	882859	GEAR HSG COVER	$9.80
54	910499	COVER-BELT	$8.80
57	A23100	HANDLE SET	$10.13
63	698496	PULLEY	$41.82
64	839306	FRAME PROTECTOR BAR	$9.14
65	823466	DRIVE PULLEY	$46.61
84	A03070	SS/A HANDLE SET	$6.77
90	A23158	DUST BAG ASSY	$5.91
100	883485	SCREW	$1.28
101	888117	GASKET	$4.40
102	883782	RUBBER PLUG	$1.28
103	883483	SCREW	$1.28
104	802388	SCREW	$1.18
105	803496	WASHER	$1.36
106	883183	BAFFLE-COOLING SEC	$7.42
107	883182	BAFFLE-COOLING PRIM	$6.12
108	883010	DUST BAFFLE	$6.60
109	875322	SCREW	$1.36
110	886538	SCREW	$1.18
111	879678	SCREW	$1.18
112	892780	SCREW	$1.09
113	883480	SCREW	$1.28
114	694010	SCREW	$1.36
115	882185	SCREW MACHINE STEEL	$1.36
116	883192	GEAR HSG GASLET	$1.92
117	883486	SCREW	$1.28
118	855284	BEARING	$11.21
119	878563	KEY	$0.99
120	801372	NUT	$2.74
121	802942	RING	$2.18
122	801852	SEAL	$1.36
123	803365	CAP	$1.92
124	803341	WASHER	$1.36
125	823254	NUT	$3.01
126	A22837	TRACKING BOX	$58.63
127	883479	SCREW	$1.28
129	908909	SHOE ASSY	$11.27
131	852310	SCREW	$1.36
132	887650	YOKE	$16.60
133	698507	CONTROL PLATE	$8.91
134	883477	SCREW	$1.28
135	698511	WEAR PLATE	$2.84
136	698502	LEVER	$5.38
137	848741	WASHER	$1.36
138	874194	SHOULDER SCREW	$2.58
139	858136	NUT	$1.18
140	698504	SPRING	$2.74
141	873946	SPRING	$1.69
142	698500	SPRING	$2.74
143	853455	RING	$1.36
144	803317	WASHER	$1.69
145	873945	SPRING	$2.25
146	878262	SCREW	$1.28
147	A22840	COVER PLATE	$2.36
148	861434	CORD CLAMP	$1.36
150	682063	CONNECTOR VS	$1.36
153	887098	LEAD-ASSY360VS 362VS	$2.36
154	888569	GASKET	$5.62
155	897159	KNOB	$1.92
156	883484	SCREW	$1.28
166	894223	SCREW	$1.54
167	896743	COVER	$1.18
174	A11331	WARNING LABEL	$1.12
175	A23710	ID LABEL	$1.41
176	A23322	ID LABEL	$1.12
177	698775	PIN	$1.36
178	A22850	NAMEPLATE	$1.32
179	A23709	WARNING LABEL	$1.41
800	879751	LUBRICANT 4 LBS	$52.48
800	878499	TUBE GREASE	$9.00
861	A02028	CASE-CARRYING	$44.10
