Porter Cable 342-Type-1 Electric Sander & Polisher Parts

Porter Cable 342-Type-1 Parts

Download Schematic

Time to buy a new tool?

Porter Cable 342-Type-1

Quarter Sheet Palm-G...

$48.99

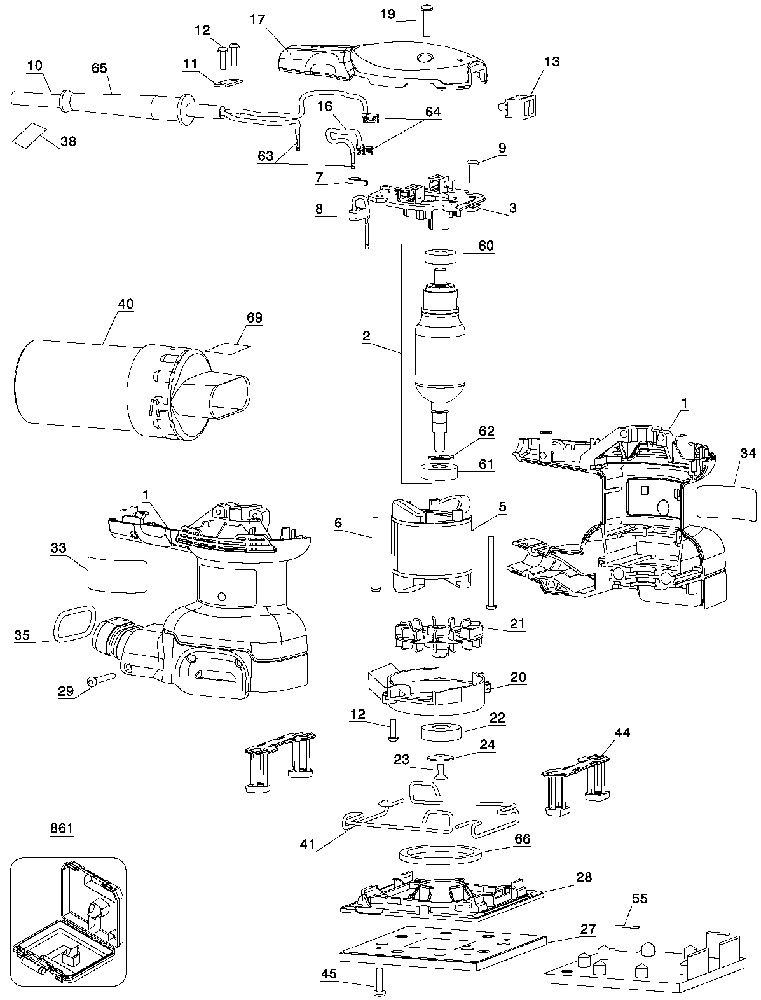

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	A22892	CLAMSHELL SET	$15.49
2	624309-03SV	ARMATURE & BRGS	$33.15
3	625034-00	BRUSH RING	$3.80
5	624277-00SV	FIELD	$13.38
6	330019-13	SCREW, M4X19	$1.24
7	445860-00	SPRING, BRUSH	$3.01
8	445861-20	BRUSH	$4.64
9	330019-11	SCREW	$1.24
10	330072-98	CORD/8FT/18-2SJ	$11.53
10	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
11	329301-00	CLAMP, CORD	$1.24
12	330019-02	SCREW, PLASTITE	$1.23
13	A22667	SWITCH	$3.78
16	144989-00	LEAD ASSEMBLY	$1.24
17	A22662	CAP	$5.57
19	330019-09	SCREW	$1.24
20	627645-00	FAN BAFFLE	$1.44
21	623655-01	FAN	$4.04
22	330003-64	BALL BEARING	$8.54
23	098012-11	MACH SCREW	$1.24
24	151652-00	WASHER, CONE	$1.40
27	151284-00SV	PAD	$19.09
28	148712-01	PLATEN	$5.99
29	900548	SCREW	$1.28
33	A10880	LABEL	$1.09
34	A10881	NAMEPLATE	$0.91
35	56194-00	RING, O	$1.24
38	A16308	WARNING LABEL	$1.09
40	A22897SV	DUST BAG ASSY	$18.05
41	151288-00	CLAMP, PAPER	$5.40
44	144988-02	FOOT	$3.01
45	464285-00	SCREW	$1.24
55	144954-00	PUNCH, PAPER	$6.69
60	330003-03	BEARING, BALL	$4.96
61	330003-17	BEARING, BALL	$9.84
62	151669-00	RING, RETAINING	$1.40
63	825209-00	TERMINAL	$1.23
64	445964-00	RECEPTACLE	$1.24
65	330005-01	PROTECTOR, CORD	$4.63
65	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
66	144974-00	SEAL, DUST	$3.01
69	A16309	WARNING LABEL	$1.09
861	A10302	KITBOX	$27.22
