Milwaukee 9573 Electric Chain Hoist

Milwaukee 9573 Electric Chain Hoist Image

Milwaukee 9573 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Milwaukee 9573
2 Ton 20 ft. Electri...
$2,044.99
Page-1
Page-2
Page-3
Page-4
Page-5
Page-6
Page-7
Page-8

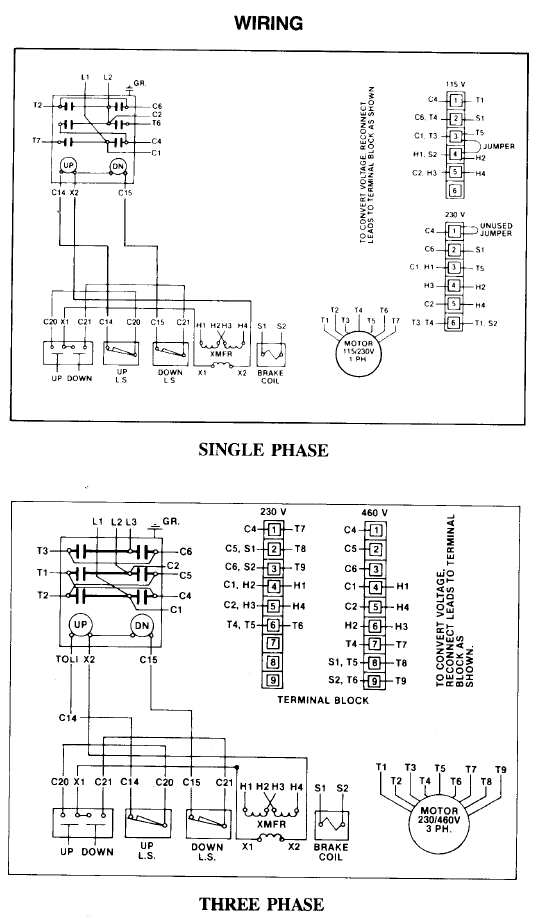

Tool Diagram    (Click image to Zoom in) View larger Image

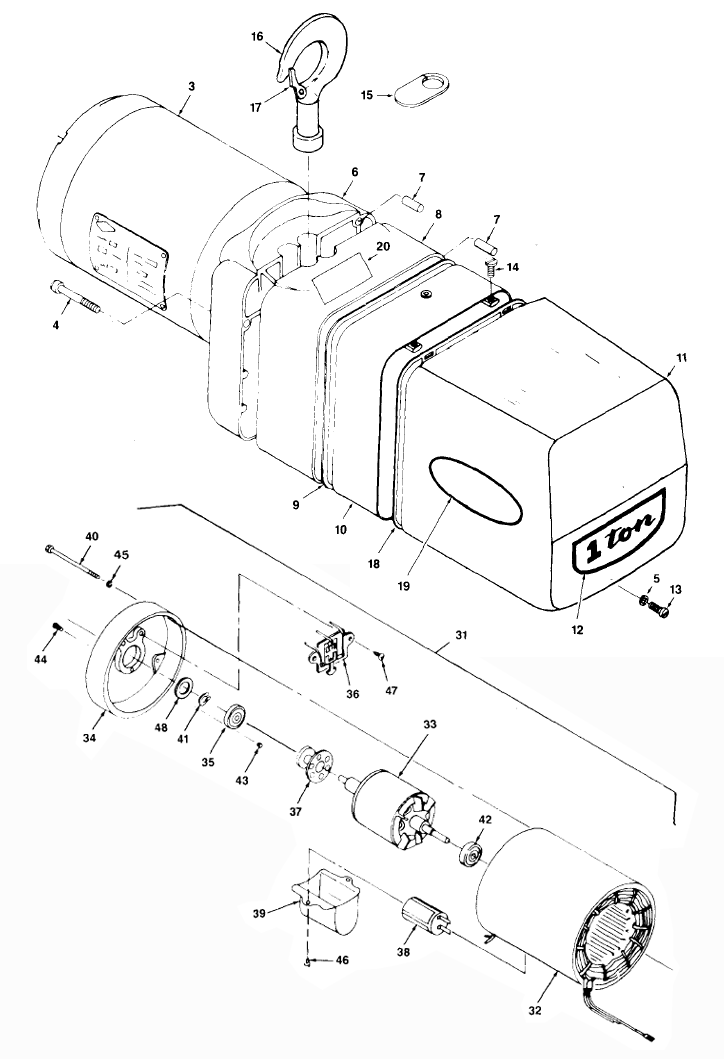

Milwaukee 9573 Electric Chain Hoist Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
5 06-97-4000 l/4” Split Ring Lcckwasher $0.86
7 06-65-3515 1/4 x 3/4 Dowel Pin $1.41
9 43-44-0820 Gear Case Gasket $11.20
10 42-92-0665 Gear Box Cover $196.96
14 06-95-0338 10-24 x 1/2 Pan Hd. Taptite $0.86
15 42-92-0670 Hook Hole Cover $2.29
18 43-44-0830 Cover Gasket $10.10
19 10-37-0070 Milwaukee Label $3.12

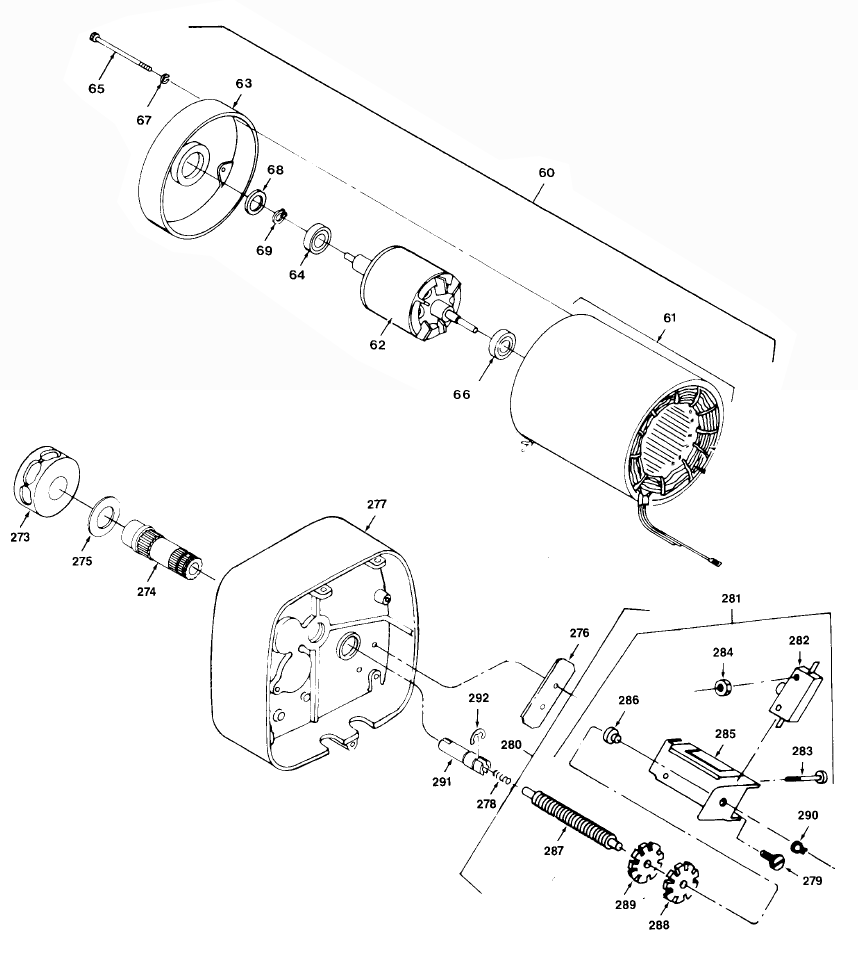

274 36-50-0010 Load Shaft Assembly $106.90
275 45-36-1340 Chain Spacer $4.05
276 43-86-0130 Insulator $1.41
277 42-92-0665 Gear Box Cover $196.96
278 40-50-8090 Spring $1.24
280 14-73-0210 Limit Switch & Shaft (Incl. Fig. 281 to 290) $160.83
281 14-78-0340 Limit Switch Assy. (Incl. Fig. 282 to 286) $56.85
282 23-66-1550 Switch $8.45
283 06-81-0725 #6-32 x 1 Fillister Head $0.86
284 06-57-6059 #6 - 32 Locknut $0.86
285 23-66-1555 Limit Switch $35.80
286 42-40-0910 Bushing $4.49
287 45-08-0280 Limit Switch Shaft $15.82
290 34-60-0510 Retaining Ring $0.86
291 45-08-0290 Limit Switch Stud Shaft $9.28
292 34-60-2470 E Ring $0.86

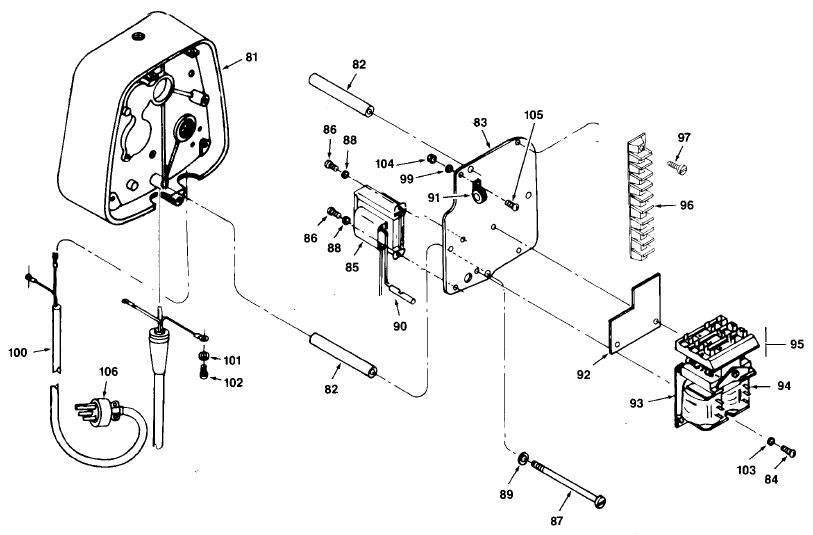

81 42-92-0665 Gear Box Cover $196.96
89 06-97-2600 1/4 Internal Tooth Lockwasher $0.86
91 42-68-0575 Cable Clamp $1.14
101 45-88-5220 "1/4"" I.D. Washer" $1.41
103 06-97-3400 10 Split Lockwasher $1.19

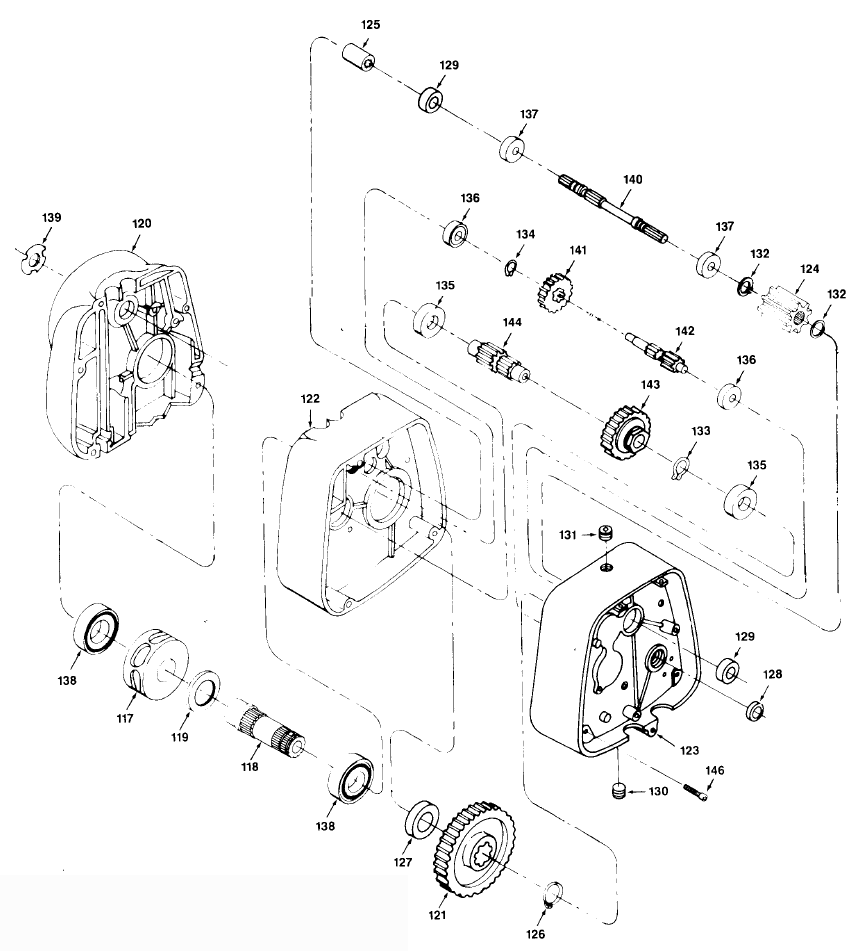

118 36-50-0010 Load Shaft Assembly $106.90
119 45-36-1340 Chain Spacer $4.05
123 42-92-0665 Gear Box Cover $196.96
124 42-04-3570 Adapter $25.80
125 42-90-0240 Motor Coupllng $10.65
126 34-60-2480 Retalnlng Rlng $0.86
127 45-06-0400 011 Seal $10.49
128 45-06-0410 011 Seal $25.23
130 44-68-0530 Dram Plug 318 N.P T. $7.19
132 34-60-1400 Snap Ring $0.86
133 34-60-2480 Retalnlng Rlng $0.86
134 34-60-1400 Snap Ring $0.86
135 02-04-1765 Ball Bearlng $54.80
136 02-04-1030 Ball Bearing $4.05
137 02-04-1705 Ball Bearlng $17.03
139 40-50-8100 Bearlng Sprlng $3.17
140 32-60-2320 Drlvlng Plnlon $169.95
141 32-60-2325 Hlgh Speed Gear $26.26
144 32-60-2340 lntermediateP lnlon $114.47
146 06-95-5680 Hex Washer Hd. 1 I4 - 20 x 2-1 14 Thread Formlng... $1.19
157 36-50-0010 Load Shaft Assembly $106.90
158 45-36-1340 Chain Spacer $4.05
160 06-65-3515 1/4 x 3/4 Dowel Pin $1.41
162 45-36-1350 Chain Guide Spacer $2.62
166 06-95-5647 1/4-20 x 1-1 I8 Thread Forming Screw $0.86
168 06-57-5000 1/4-20 Lock Nut $1.03
169 45-88-5220 "1/4"" I.D. Washer" $1.41
171 45-60-0490 Chain Support $12.91
172 44-60-1030 Chain Support Pin $3.45
173 44-60-1040 Cotter Pin $0.86
174 06-97-4200 "1/2"" Split Ring Lockwasher" $0.86
175 06-65-1535 Roll Pin 118 x 314 $0.86
176 06-57-7520 1/4 - 20 Jam Nut $1.41
177 45-04-0780 Chain Support Screw $12.63

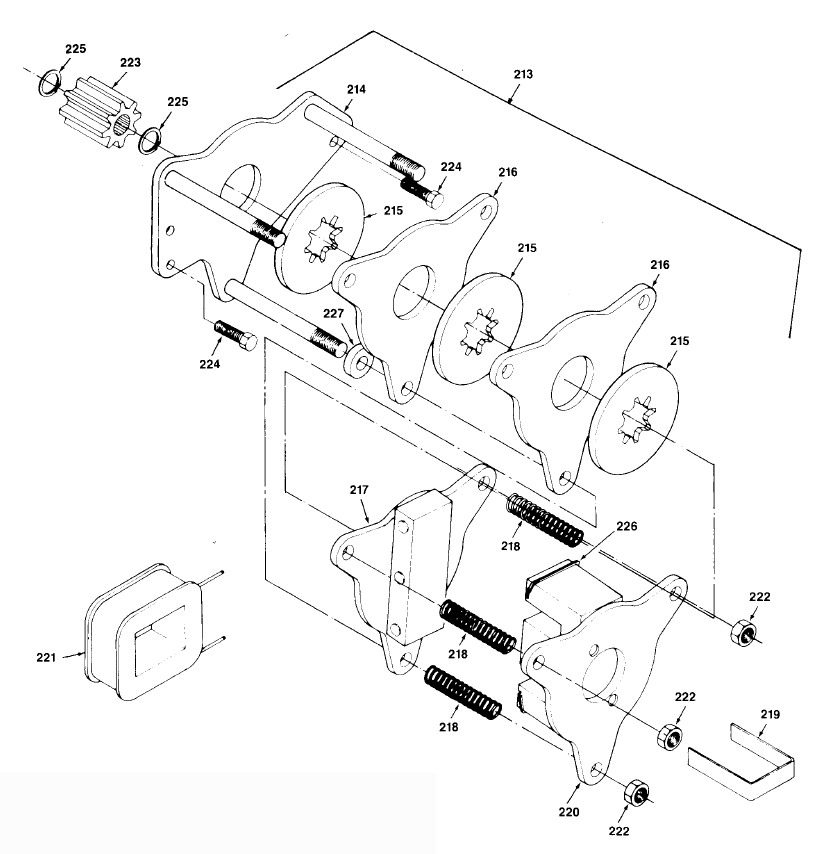

214 14-67-0230 Plate Et Stud Assembly $22.75
216 44-66-5660 Brake Plate $13.90
217 14-67-0240 Plate 8 Armature Assy. $99.25
218 40-50-8110 Spring $1.46
219 44-86-0500 Retainer $4.16
220 14-67-0250 Plate 8 Frame Assembly $173.98
223 42-04-3570 Adapter $25.80
225 34-60-1400 Snap Ring $0.86
226 22-51-0230 Shading Coil $2.13
35 02-04-1745 Ball Bearing $5.59
42 02-04-1701 Ball, Bearing $6.58
46 06-81-4564 #8-32 x 5/16 Round Hd. Machine Screw $0.86
64 02-04-1745 Ball Bearing $5.59
66 02-04-1701 Ball, Bearing $6.58
6 43-76-0510 Sheave Housin-a $146.14
8 43-76-0490 Gear Housing $280.29
100 22-64-2880 Cord Set' $118.78
120 43-76-0510 Sheave Housin-a $146.14
121 32-60-2315 Out Put Gear $111.94
122 43-76-0490 Gear Housing $280.29
142 32-60-2335 Hlgh Speed Plnlon $100.20
143 14-08-0160 Overload Clutch Assy. $504.36
213 14-04-0040 Disc Brake Assemblv $584.38
215 43-06-0580 Brake Et Disc $71.25

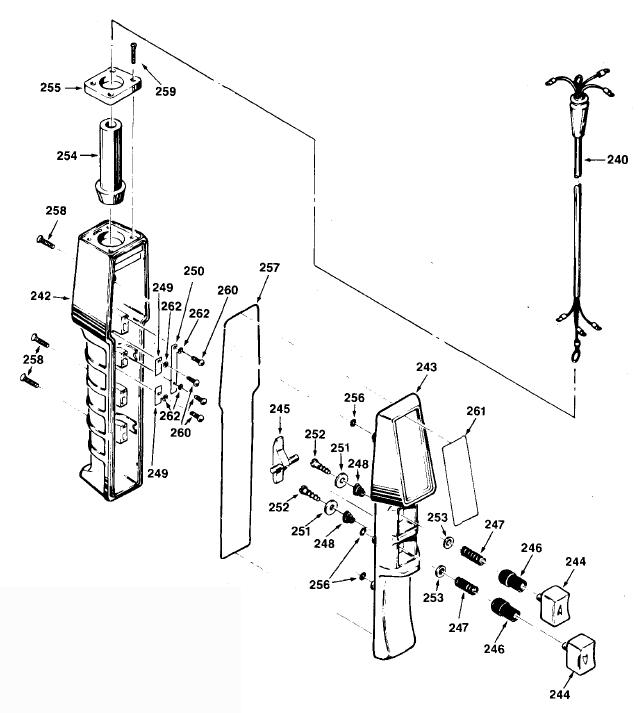

239 14-05-0030 Pushbutton & Cable Assy. 10' $388.98

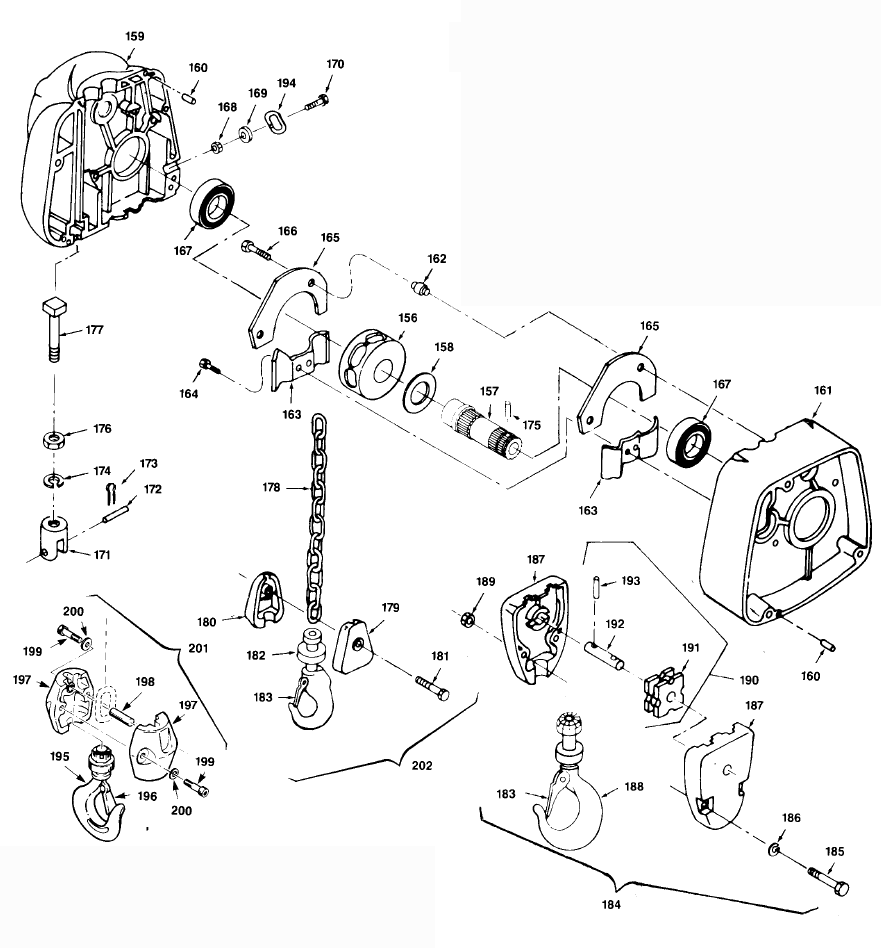

159 43-76-0510 Sheave Housin-a $146.14
161 43-76-0490 Gear Housing $280.29
163 43-56-0450 Chain Guide $17.14
165 44-66-5656 Chain Guide Plate $18.74
184 14-47-0620 Load Block Kit $507.22
185 45-04-0800 Load Block Screw 3/8 - 24 x 1-3/4 $1.14
188 14-36-0170 Bottom Hook w/Latch Assy. $225.19
189 06-55-2475 3/8 - 24 Hex Nut $2.57
190 14-73-0220 Sheave Shaft Assy. $115.68
192 36-74-0020 Sheave Shaft $23.74
