Milwaukee 9096-20 Electric Impact Wrench Parts

Milwaukee 9096-20 Parts

Download Schematic

Time to buy a new tool?

Milwaukee 9096-20

5/8 Hex Drive Impact...

$307.99

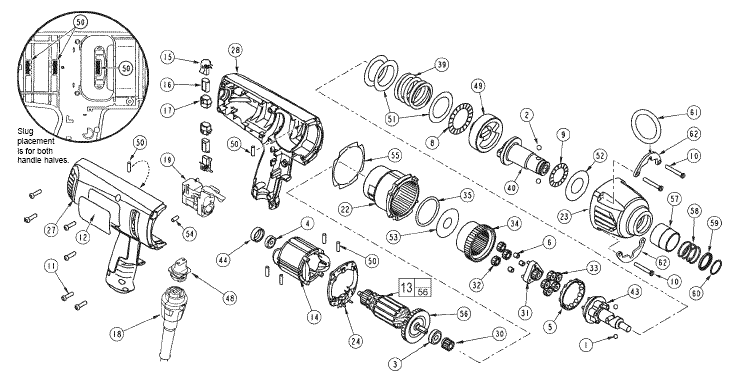

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
00	EC162V6	Power Tools Replacement Electical Cords (SJO) 16...	$15.19
1	02-02-0250	"1/4"" Ball"	$0.86
2	02-02-0275	7 mm Ball	$0.86
3	02-04-0852	Ball Bearing	$3.34
4	02-04-0645	Ball Bearing	$3.28
5	02-40-0050	Angular Contact Bearing	$6.03
6	02-50-3250	Unit Cage Bearing	$3.67
8	02-80-0200	Thrust Bearing	$4.60
9	02-80-3256	Thrust Bearing	$2.73
10	05-88-5988	K50 x 35mm Slt Pan Hd T-20 Screw	$0.86
11	06-95-6290	M5 x 2.24 x 18 Slotted T-20 PT Screw	$0.86
13	16-10-2275	Armature	$45.74
14	18-07-2275	Field	$34.52
15	22-18-0040	Brush Assembly	$2.02
16	22-20-0110	Brush Tube	$0.86
17	22-20-0465	Brush Tube Holder	$2.45
19	23-66-2765	Switch	$29.58
22	28-14-0175	Gearcase	$11.86
23	14-38-0100	Front Housing Assembly	$30.24
24	31-15-2045	Field Connector	$5.70
27	31-44-2176	Right Handle	$8.40
28	31-44-2181	Left Handle	$8.40
30	32-60-0150	Sun Gear	$1.19
31	32-60-0175	Sun Gear	$2.73
32	32-62-0200	Planet Gear	$0.86
33	32-62-0215	Planet Gear	$0.86
34	32-65-0005	Ring Gear	$7.41
35	34-40-0070	O-Ring	$1.24
39	40-50-0241	Spring	$2.95
40	14-73-0185	Anvil Assembly	$56.60
43	14-73-0300	Cam Shaft Assembly	$19.84
44	42-96-0015	Bearing Cup	$0.86
48	22-56-9070	Blade Housing Assembly	$4.11
49	44-82-0210	Ram	$22.48
50	45-30-0025	Rubber Slug	$0.86
51	45-88-0535	Washer	$1.30
52	45-88-1575	Washer	$1.03
53	45-88-3250	Washer	$1.03
54	45-30-0021	Rubber Slug	$0.86
55	43-44-0991	Gasket	$1.30
56	22-84-0375	Fan	$2.18
57	42-76-0195	Collar	$21.21
58	40-50-0375	Spring	$2.13
59	44-90-0035	Spring Support	$5.70
60	34-60-0055	Retaining Ring	$1.24
61	44-90-0095	Steel Ring	$0.86
62	43-72-0275	Tool Hanger	$1.30
