Milwaukee 8945 Electric Blower & Vacuum Parts

Milwaukee 8945 Parts

Download Schematic

Time to buy a new tool?

Milwaukee 8945

3 Stage Vacuum Clean...

$399.99

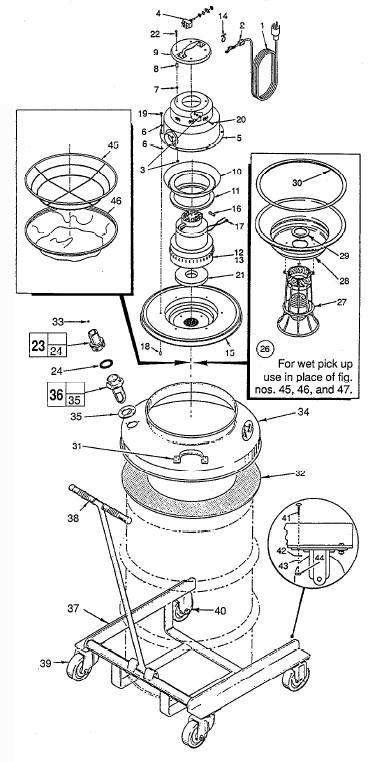

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	22-64-0700	Cord Set	$53.35
2	44-76-0020	Strain Relief	$8.40
3	06-55-3800	10-24 Hex Nut	$0.86
4	23-66-0870	Switch	$14.01
5	42-92-1055	Dome Assembly	$82.35
6	45-88-8680	#12 Internal Tooth Lockwasher	$0.86
7	45-88-8695	0.37 Dia. x 0.18 Nylon Spacer	$0.86
8	45-88-8700	0.37 Dia. x 0.56 Nylon Spacer	$0.86
9	44-66-6175	Dome Cap With Handle	$24.13
10	42-04-3595	Baffle	$22.42
11	43-44-1025	Top Motor Gasket	$9.77
12	23-30-0305	3 Stage Motor	$301.72
13	22-18-0905	Carbon Brush and Holder (Set)	$35.14
14	22-38-0170	Wire Tie	$0.86
15	42-92-1060	Cover Assembly	$63.45
16	23-71-0010	Wire Nut	$0.86
17	23-74-1280	Terminal	$0.86
18	44-76-0275	Screw Tip Protector	$0.86
19	06-81-1815	12 x 1/2 Phillips Type B Pan Hd. Screw	$0.86
20	06-81-1812	10-24 x 3/4” Phlp. Screw	$0.86
21	43-44-1030	Bottom Motor Gasket	$7.24
22	06-81-1825	10-24x 1” Round Hd. Phlp. Screw	$0.86
24	43-44-0275	Gasket	$2.24
27	42-46-0110	Float Cage Assembly	$42.89
28	44-54-0050	Wet Pan Adapter	$30.24
29	43-44-0340	Shut Off Gasket	$11.04
30	43-44-0330	Gasket	$17.14
31	43-62-0500	Handle	$4.71
32	43-44-0350	Gasket	$22.91
33	43-33-0490	Elbow (Not Shown)	$34.52
34	42-04-0430	Drum Adapter	$109.33
35	43-44-0370	Inlet Gasket	$1.24
36	42-86-0080	Inlet Connector Assembly	$10.87
38	43-62-0510	Handle Grip	$4.93
39	45-94-0300	5 Inch Swivel Caster	$41.76
40	45-94-0305	5 Inch Rigid Caster	$29.58
42	45-88-5220	"1/4"" I.D. Washer"	$1.41
43	06-97-4050	"1/4"" Split Ring Lock Washer"	$0.86
44	06-55-1525	"1/4""-20 Hex Nut"	$0.86
