Milwaukee 8925 Electric Blower & Vacuum Parts

Milwaukee 8925 Parts

Download Schematic

Time to buy a new tool?

Milwaukee 8925

3 Stage Wet/Dry Vacu...

$878.99

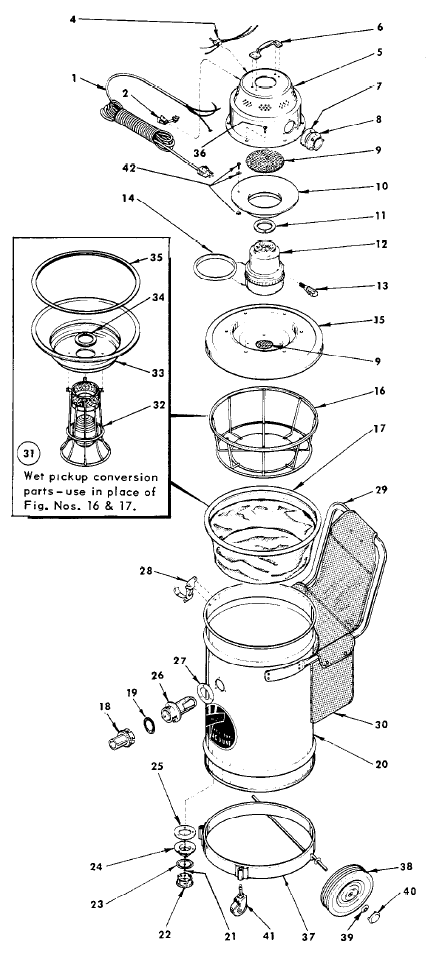

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	22-64-0700	Cord Set	$53.35
2	44-76-0020	Strain Relief	$8.40
4	23-66-0870	Switch	$14.01
5	42-92-0350	Motor Cover Assembly (Includes Fig. Nos. 6 thru ...	$74.60
6	43-62-0510	Handle Grip	$4.93
8	42-86-0070	Connector	$5.92
9	45-03-0120	Perforated Aluminum Screen	$4.88
10	42-04-0450	Motor Adapter	$28.20
11	43-44-0470	Motor Top Gasket	$2.40
12	23-30-0110	Large By Pass Motor Assembly	$285.43
13	22-18-0435	Carbon Brush and Holder (Set)	$10.82
14	43-44-0475	Motor Gasket	$6.08
15	42-92-0270	Container Cover with Screen	$52.90
19	43-44-0275	Gasket	$2.24
20	42-51-0390	Stainless Steel Dust Container Assy. (Includes F...	$528.12
21	42-60-0090	Chain	$4.16
23	43-44-0275	Gasket	$2.24
24	42-86-0070	Connector	$5.92
26	42-86-0080	Inlet Connector Assembly	$10.87
27	43-44-0370	Inlet Gasket	$1.24
32	42-46-0110	Float Cage Assembly	$42.89
33	44-54-0050	Wet Pan Adapter	$30.24
34	43-44-0340	Shut Off Gasket	$11.04
35	43-44-0330	Gasket	$17.14
36	06-85-2000	12 x 1/2 Phillips type B Pan Hd. Screw	$0.86
39	06-57-7505	Pal Locknut	$1.19
40	42-52-0220	Hub Cap	$2.24
41	45-94-0140	Swivel Bearing Caster	$7.02
42	06-05-0010	Ground Screw Assembly	$0.86
