Milwaukee 8912 Electric Blower & Vacuum Parts

Milwaukee 8912 Parts

Download Schematic

Time to buy a new tool?

Milwaukee 8912

3-Stage Wet/Dry Vacu...

$624.99

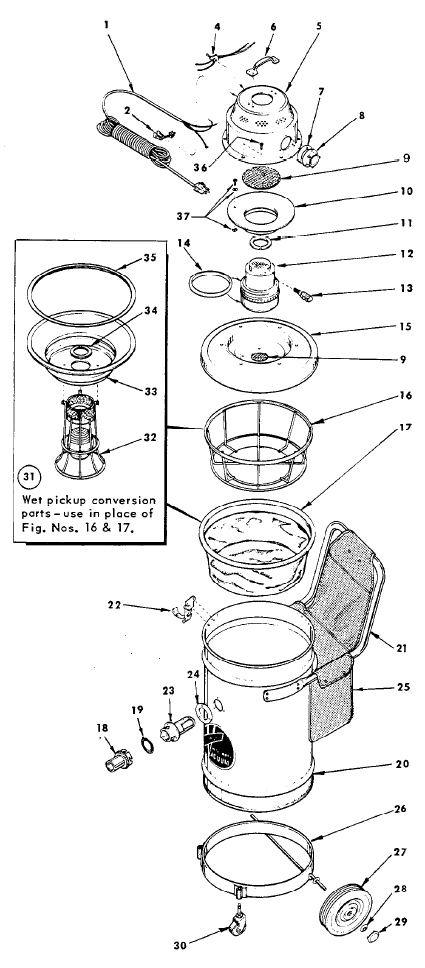

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	22-64-0700	Cord Set	$53.35
2	44-76-0020	Strain Relief	$8.40
4	23-66-0870	Switch	$14.01
5	42-92-0350	Motor Cover Assembly (Includes Fig. Nos. 6 thru ...	$74.60
6	43-62-0510	Handle Grip	$4.93
8	42-86-0070	Connector	$5.92
9	45-03-0120	Perforated Aluminum Screen	$4.88
10	42-04-0450	Motor Adapter	$28.20
11	43-44-0470	Motor Top Gasket	$2.40
12	23-30-0110	Large By Pass Motor Assembly	$285.43
13	22-18-0435	Carbon Brush and Holder (Set)	$10.82
14	43-44-0475	Motor Gasket	$6.08
15	42-92-0270	Container Cover with Screen	$52.90
19	43-44-0275	Gasket	$2.24
20	42-51-0350	Steel Dust Container Assy. (Incl. Fig. Nos. 21 t...	$245.61
23	42-86-0080	Inlet Connector Assembly	$10.87
24	43-44-0370	Inlet Gasket	$1.24
27	45-94-0130	Wheel	$18.19
28	06-57-7505	Pal Locknut	$1.19
29	42-52-0220	Hub Cap	$2.24
30	45-94-0140	Swivel Bearing Caster	$7.02
32	42-46-0110	Float Cage Assembly	$42.89
33	44-54-0050	Wet Pan Adapter	$30.24
34	43-44-0340	Shut Off Gasket	$11.04
35	43-44-0330	Gasket	$17.14
36	06-85-2000	12 x 1/2 Phillips type B Pan Hd. Screw	$0.86
37	06-05-0010	Ground Screw Assembly	$0.86
