ToolpartsPro » Milwaukee Parts » Nailer parts » Air Nailers » Milwaukee 7145-21 Parts

Milwaukee 7145-21 Air Nailers

Milwaukee 7145-21 Air Nailers Image

Milwaukee 7145-21 Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Milwaukee 7145-21
16 Gauge Straight Fi...
$161.99
Page-1

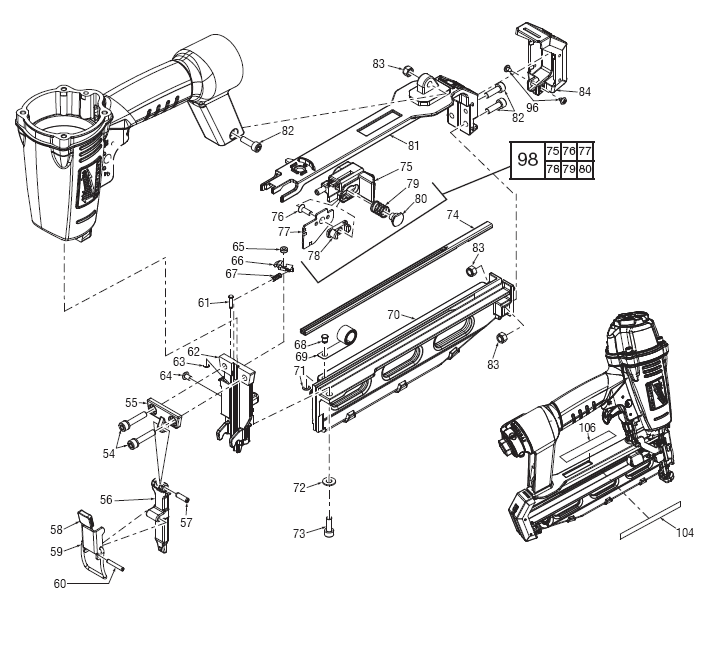

Page-2
Tool Diagram    (Click image to Zoom in) View larger Image

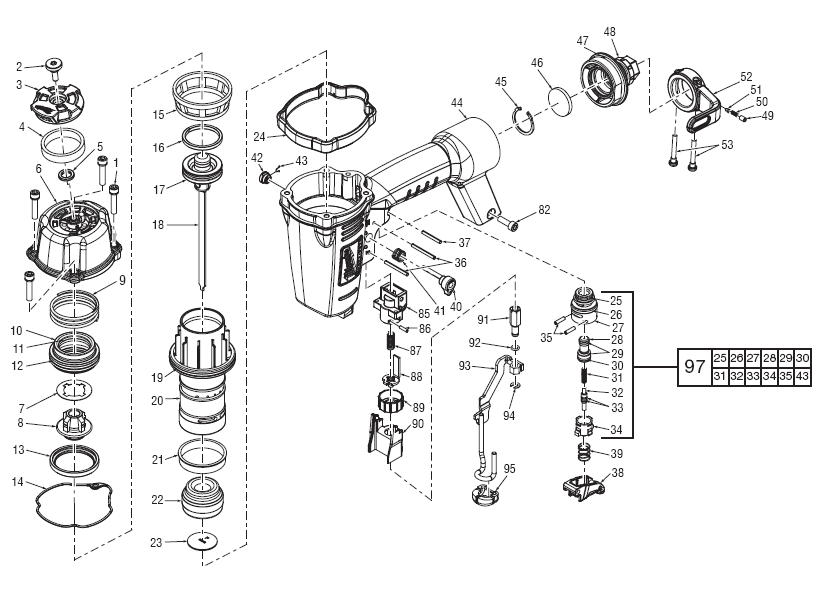

Milwaukee 7145-21 Air Nailers Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.

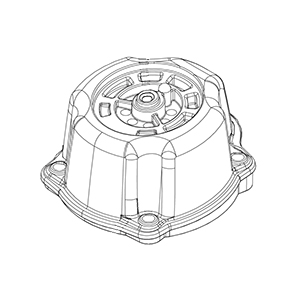

6 42-92-1420 Top Cap $30.90
7 45-06-0925 Seal Gasket $1.36
8 45-06-0940 Seal $7.79
9 40-50-3110 Upper Valve Spring $1.58

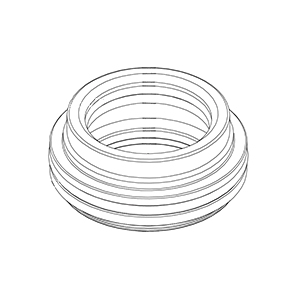

10 44-62-0250 Head Valve Piston $17.97
11 34-40-3240 O-Ring $0.86
12 34-40-3175 O-Ring $0.97
13 42-76-0800 Valve Collar $2.29
14 45-06-0910 Top Cap Seal $1.46
16 44-90-0820 Piston Ring $3.01
17 34-40-3220 O-Ring $0.86
18 43-12-0250 Driver Assembly $32.23
19 34-40-3270 O-Ring $0.86

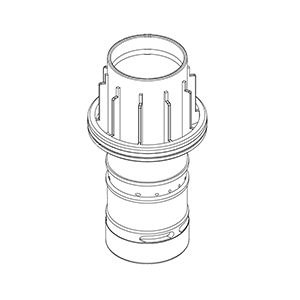

20 42-98-0350 Cylinder $5.43

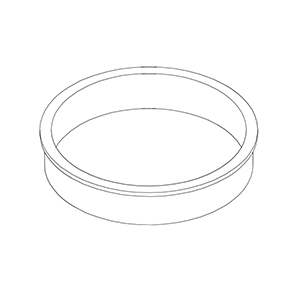

21 44-90-0800 Cylinder Spacer $0.97
22 42-38-0300 Bumper $5.76
23 43-56-0895 Driver Guide $0.86

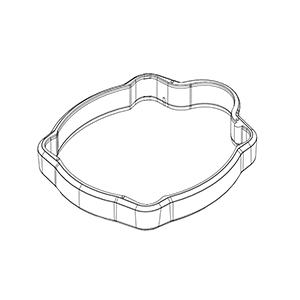

24 42-38-0360 Bumper Band $1.63
37 06-65-1480 Spring Pin $0.86
44 28-50-0800 Tool Body $63.60
45 44-90-0785 Snap Ring $1.41
48 42-92-1350 End Cap $12.19
52 42-70-0400 Spring Retainer (Belt Clip) $4.88
53 05-83-0525 Round Head Phillips Bolt $0.86
88 42-36-2050 Work Contact Assembly B $3.89
90 42-92-1495 Work Contact Element Cover $1.96
91 44-94-0570 Adjustment Rod $4.93
92 34-40-3310 O-Ring $0.86
93 42-36-1995 Work Contact Element Bracket A $16.98
95 42-38-0320 No-Mar Pad $1.14
54 05-84-0995 Bolt Assembly $0.86
55 42-92-1395 Driver Guide Cover B $8.89
56 42-92-1380 Driver Guide Cover A $16.37
57 06-65-1455 Spring Pin $0.86
59 44-20-0850 Lock Handle Assembly $4.44
61 44-60-1855 Fixed Pin $0.97
62 43-56-0855 Driver Guide $32.48
66 44-66-1305 Positional Plate $0.92
67 40-50-3030 Positioning Spring $0.86
68 31-10-0520 Bracket $0.86
69 40-50-3140 Spring $3.17
70 43-40-0455 Magazine A $18.90
72 45-88-1740 Flat Washer $0.86
73 05-84-0900 Socket Head Hex Screw $0.86
74 44-81-0050 Steel Channel $12.24
75 42-92-1475 Protecting Hood Cover $3.94
76 05-84-0940 Flat Head Hex Bolt $0.86
77 43-72-0350 Pusher $1.74
78 42-28-0350 Anchor Block $0.97
79 40-50-3150 Spring $0.86
80 42-42-0600 Pusher Button $0.86
81 43-40-0485 Magazine B $10.65
82 05-84-0905 Socket Head Hex Screw $0.86
83 05-59-2025 Lock Nut $0.86
84 42-92-1445 Magazine End Cover $2.24
96 05-78-0810 Tap Bolt (M3 x5 ) $0.86
98 45-24-0030 Magazine Pusher Assembly $8.45
1001 14-70-0180 Overhaul Kit (Not Shown) $33.81
1002 14-70-0185 Driver Maintenance Kit (Not Shown) $34.73
