Milwaukee 6742-20 Electric Screwdriver Parts

Milwaukee 6742-20 Parts

Download Schematic

Time to buy a new tool?

Milwaukee 6742-20

0-4000 RPM Drywall S...

$94.99

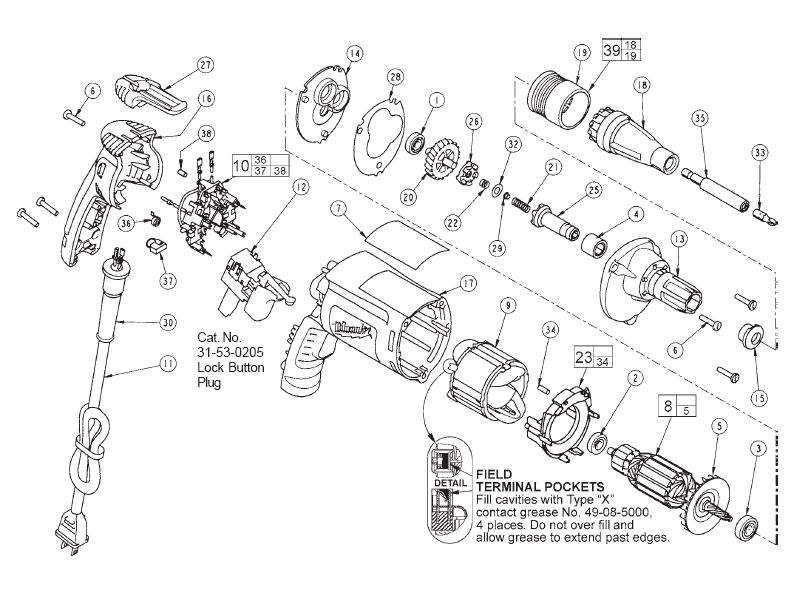

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	02-04-0640	Ball Bearing	$3.94
2	02-04-0645	Ball Bearing	$3.28
3	02-04-0852	Ball Bearing	$3.34
4	02-50-3245	Needle Bearing	$23.30
5	22-84-0840	Fan	$1.69
6	06-82-7275	7-18 x 3/4 Slotted Plastite T-20	$0.86
7	12-99-2665	Service Nameplate	$6.14
8	16-10-2201	Armature	$51.95
9	18-07-2200	Field	$29.12
10	22-18-1210	Brush Card Assembly	$11.81
11	22-64-6510	Cord Assembly	$11.31
11	EC182	Power Tools Replacement Electical Cords (SJO) 18...	$10.19
12	23-66-2585	Switch	$25.78
13	28-14-2375	Gearcase	$14.89
14	28-28-2315	Diaphragm	$5.59
15	30-37-0046	Drywall Nose Guide	$0.86
16	31-15-2010	Handle Halve	$4.27
17	31-50-2010	Motor Housing	$9.83
18	31-51-0095	Drywall Locator	$4.55
19	31-58-0515	Snap Sleeve	$1.41
20	32-10-0521	Clutch Gear Assembly	$21.05
21	40-50-0095	Separator Spring	$0.97
22	40-50-8515	Bias Spring	$0.86
23	42-14-0460	Baffle Assembly	$1.19
25	42-66-0715	Clutch Chuck Assembly	$17.80
26	42-70-0310	Drive Clutch	$6.25
27	42-70-5280	Belt Clip	$2.40
28	43-44-0985	Gasket	$0.86
29	44-60-0505	Thrust Pin	$2.29
30	44-76-0210	Cord Protector	$1.63
30	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
32	45-88-0555	Clutch Thrust Washer	$0.86
34	45-30-0030	Slug	$0.86
36	23-52-1610	Brush Spring	$0.92
37	22-18-1310	Brush Assembly	$6.80
38	45-30-0035	Slug	$0.86
