Milwaukee 6562-24 Cordless Caulking & Grease Guns

Milwaukee 6562-24 Parts

CAULK GUN 14.4V W/20 OZ. CARR

Download Schematic

Time to buy a new tool?

Milwaukee 6562-24

14.4 Volt Caulk/Adhe...

$255.99

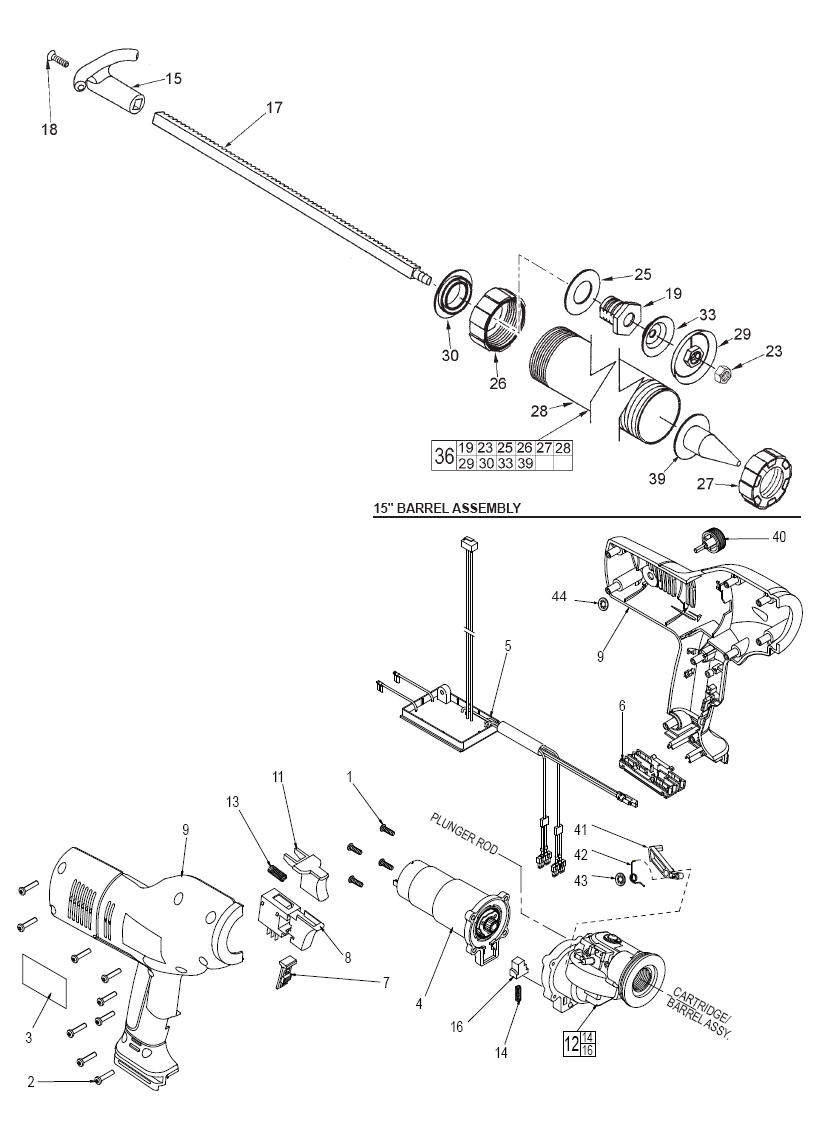

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	06-82-2625	Screw	$0.86
2	06-82-7470	Screw	$0.86
4	14-50-0750	Motor / Gearcase Assembly	$45.18
5	22-09-1681	P.C. Board Kit	$59.40
6	22-56-0195	Connector Block	$0.86
7	23-66-2230	Lock Switch	$0.86
8	23-66-2390	Switch	$24.68
9	31-50-1825	Housing Kit	$16.70
11	31-92-0340	Clutch Release Trigger	$1.03
12	32-48-0095	Output Gearcase Assembly	$134.50
13	40-50-0990	Trigger Spring	$1.30
14	40-50-3930	Lever Spring	$2.57
15	31-44-1025	Plunger Rod Hook	$1.96
16	44-10-0500	Clutch Release Lever	$2.18
18	45-04-0661	Screw-Plunger Rod	$0.97
19	45-04-0705	Barrel Screw	$4.66
23	06-55-2457	Retaining Nut	$0.86
25	45-88-0595	Washer	$0.86
26	42-52-1005	Cap Mount	$8.95
27	42-52-1000	Nozzle Cap	$3.34
28	30-06-0010	Barrel	$24.51
29	44-70-0040	Plunger-Plastic	$2.51
30	31-86-0220	Washer-Gray	$1.96
33	44-70-0300	Steel Plunger	$0.86
38	49-96-4670	Wrench (Not Shown)	$9.17
39	45-76-0525	Yellow Nozzle (Qty. 2 supplied with 36)	$2.13
40	43-98-0645	Speed Control Dial	$1.74
41	44-10-0470	Limit Switch Lever	$1.30
42	40-50-8930	Spring	$0.86
43	42-70-0450	Clip	$0.86
44	42-70-0900	Clip	$0.86
