Milwaukee 6562-21 Cordless Caulking & Grease Guns

Milwaukee 6562-21 Parts

CAULK GUN 14.4V W/10 OZ. CARR & 1 BAT

Download Schematic

Time to buy a new tool?

Milwaukee 6562-21

14.4 Volt Caulk/Adhe...

$229.99

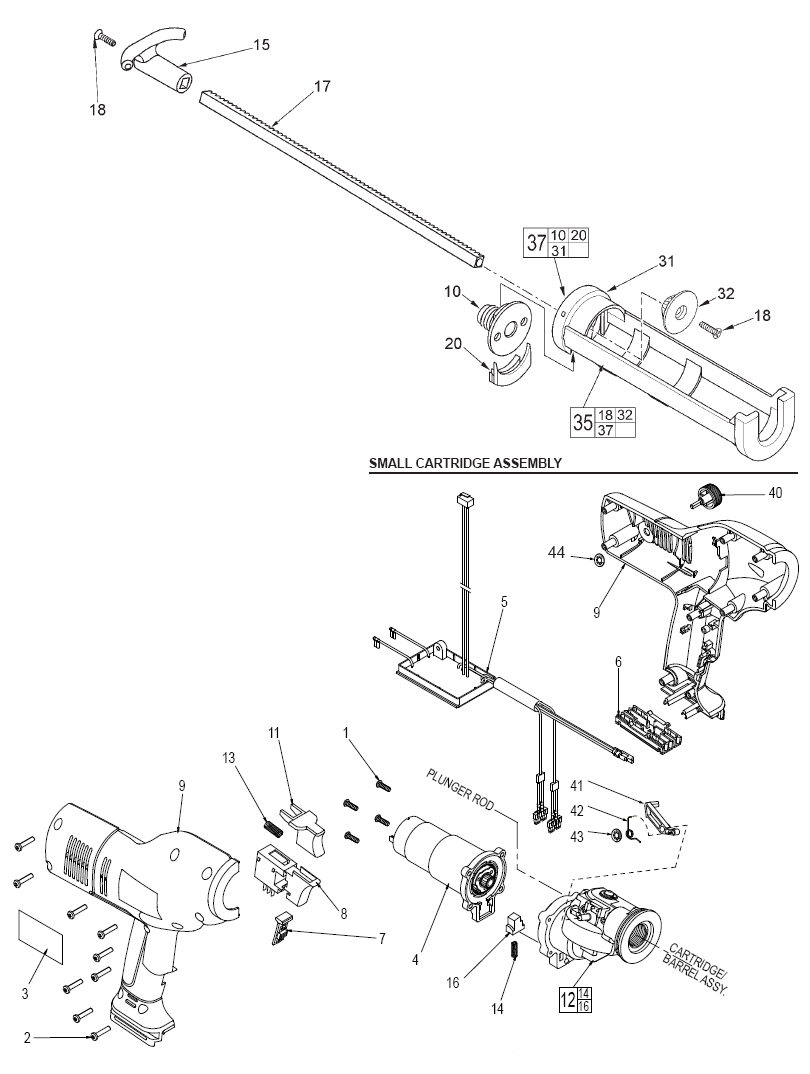

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	06-82-2625	Screw	$0.86
2	06-82-7470	Screw	$0.86
4	14-50-0750	Motor / Gearcase Assembly	$45.18
5	22-09-1681	P.C. Board Kit	$59.40
6	22-56-0195	Connector Block	$0.86
7	23-66-2230	Lock Switch	$0.86
8	23-66-2390	Switch	$24.68
9	31-50-1825	Housing Kit	$16.70
10	45-04-0715	Frame Mounting Screw	$19.67
11	31-92-0340	Clutch Release Trigger	$1.03
12	32-48-0095	Output Gearcase Assembly	$134.50
13	40-50-0990	Trigger Spring	$1.30
14	40-50-3930	Lever Spring	$2.57
15	31-44-1025	Plunger Rod Hook	$1.96
16	44-10-0500	Clutch Release Lever	$2.18
18	45-04-0661	Screw-Plunger Rod	$0.97
20	31-12-0275	Frame Cap	$2.18
31	31-01-1700	Frame	$14.83
32	44-70-0630	Plunger	$1.80
37	31-01-1705	Cartridge Frame Assembly	$34.93
38	49-96-4670	Wrench (Not Shown)	$9.17
40	43-98-0645	Speed Control Dial	$1.74
41	44-10-0470	Limit Switch Lever	$1.30
42	40-50-8930	Spring	$0.86
43	42-70-0450	Clip	$0.86
44	42-70-0900	Clip	$0.86
