Milwaukee 6545-6 Cordless Screwdriver Parts

Milwaukee 6545-6 Parts

SCREWDRIVER 2 SP 2.4V TOOL ONLY

Download Schematic

Time to buy a new tool?

Milwaukee 6545-6

2.4 Volt Two Speed C...

$63.99

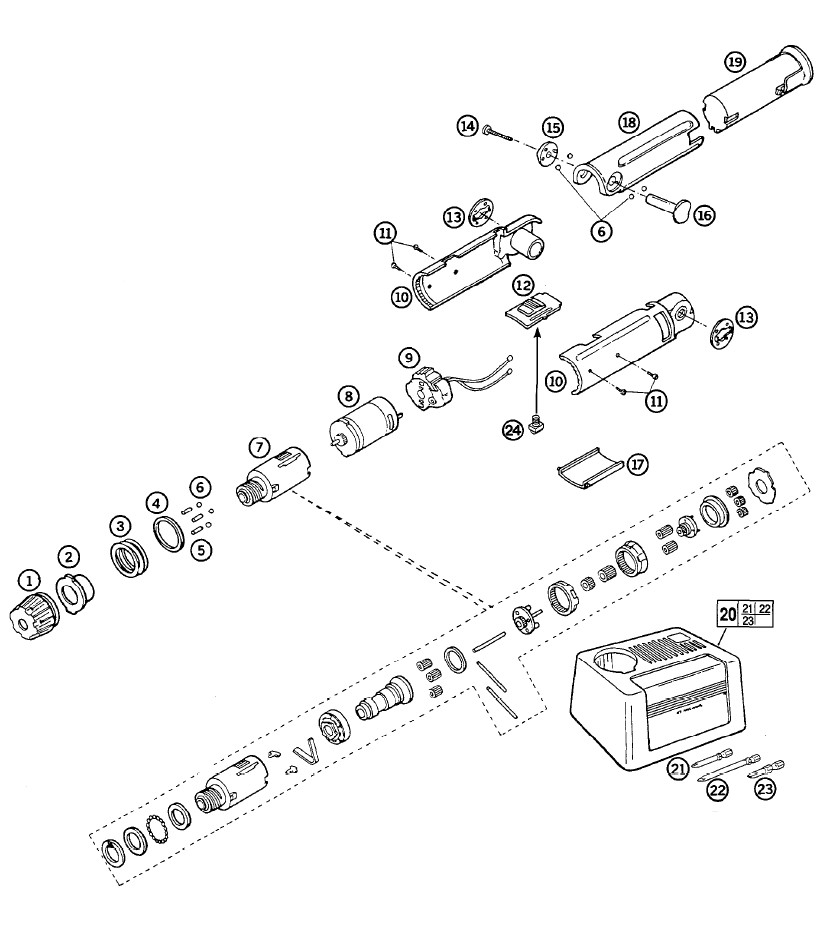

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price

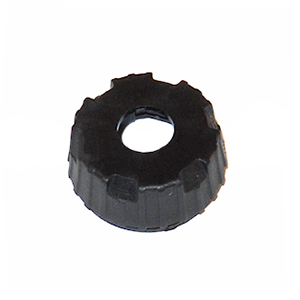

1	31-58-0070	Clutch Adjustment Ring	$2.79

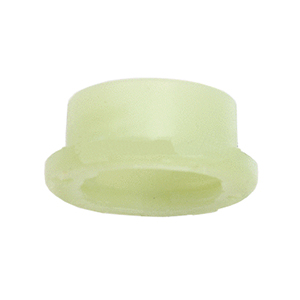

2	44-90-4300	Clutch Ring	$2.02

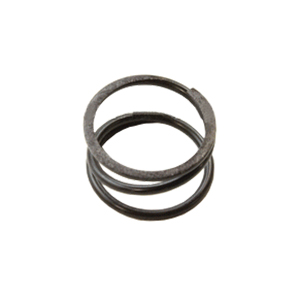

3	40-50-8250	Clutch Spring	$2.62

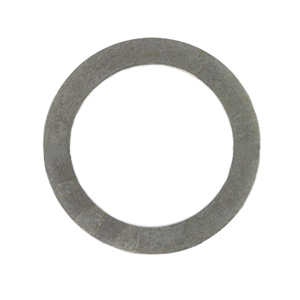

4	44-90-4290	Thrust Ring	$1.96
5	44-60-1130	Clutch Pin	$1.14
7	32-48-0080	Gear Box Assembly	$20.77
8	14-50-0490	Motor	$30.90

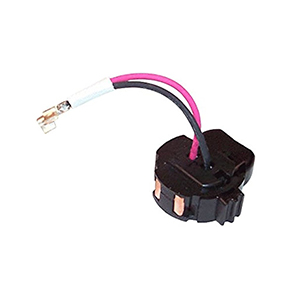

9	23-66-1740	Switch	$7.85

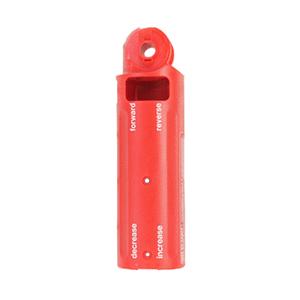

10	31-50-0760	Motor Housing Set	$7.02
11	05-78-0100	2 x 8 mm Self Tap. Phil. Screw	$0.86

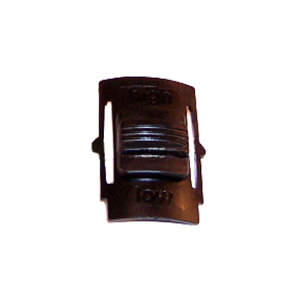

12	44-10-0270	Gear Change.Leier	$1.63

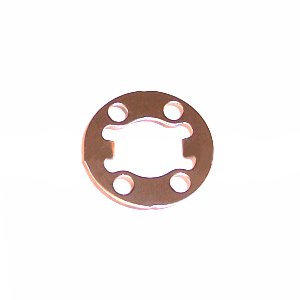

13	40-50-8260	Click Spring	$1.96
14	05-78-0700	Handle Screw Special	$0.86
15	45-88-7920	Decorative Washer	$1.03

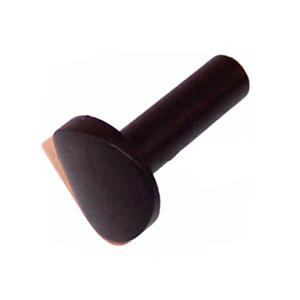

16	44-60-0810	Retaining Pin	$1.08

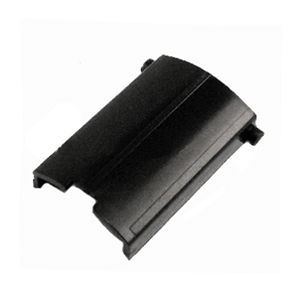

17	31-15-0360	Hinge CoVer	$1.08

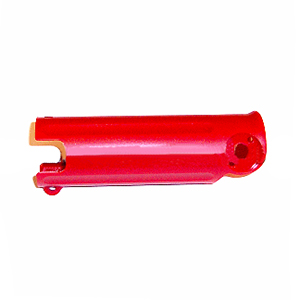

18	31-44-1560	Handle	$6.75
24	40-50-8410	Button & Sprfng Assembly	$1.08
	43-72-0130	Bit Holder Door	$2.68
	31-03-0040	Upper Housing	$5.70
	31-03-0035	Lower Housing	$5.65
	22-64-0325	Charger Cord Set	$6.58
	45-04-0700	Charger Screw	$0.86
