Milwaukee 6390-20 Electric Saw Parts

Milwaukee 6390-20 Electric Saw Parts Image

Milwaukee 6390-20 Parts

SAW CIRC 7-1/4

Download Schematic

Time to buy a new tool?

Milwaukee 6390-20

7 1/4 Inch 15 Amp Ti...

$124.99

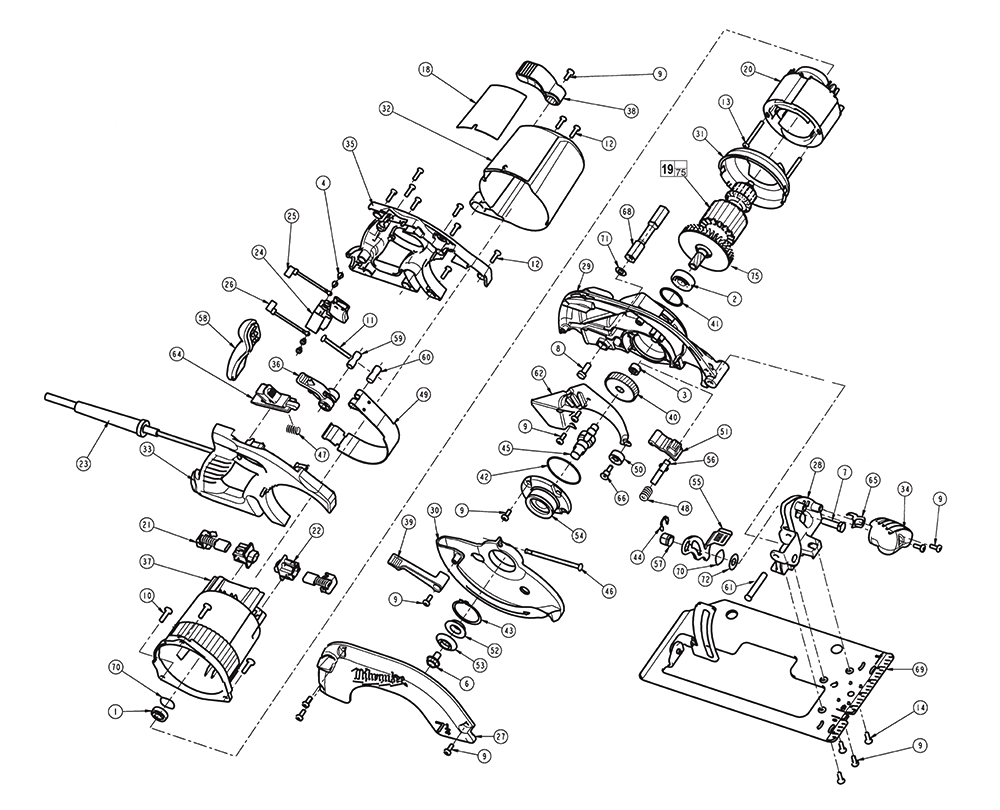

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	02-04-0850	Ball Bearing	$2.95
2	02-04-1850	Ball Bearing	$3.94
3	02-50-2423	Needle Bearing	$1.19
4	05-78-0305	M3.5 x 0.6 x 7mm Pan Hd. Slotted T-15	$0.86
7	06-75-5850	5/16 -18 L.H. Thread Bolt	$0.86
8	06-75-5860	"1/4-20 x 3/4"" Hex Hd. Screw"	$0.86
9	06-82-5314	10-24 x .5 Pan Hd. Tapt. T-25	$0.86
10	06-82-5358	"12-24 x 3/4"" Pan Hd. Taptite T-27"	$0.86
11	06-82-5474	"10-24 x 1-3/4"" Pan Hd. Taptite T-25"	$0.86
12	06-82-7270	"8-16 x 5/8"" Slt. Pan Hd. Plast. T-20"	$0.86
13	06-82-7395	8-16 x 1.75 Pan Hd. Slt. Plast. T-20	$0.86
14	06-82-8875	"5/8""-DG50 Thread Form Screw T-20"	$0.86
19	16-70-0055	Armature	$92.05
20	18-70-1045	Field	$45.39
21	22-18-0075	Brush Assembly	$3.12
22	22-22-0030	Brush Tube Assembly	$1.85
23	22-64-0100	Cord Assembly	$11.81
24	23-66-2115	Switch	$11.92
25	23-94-1180	Lead Assembly	$5.98
26	23-94-1185	Lead Assembly	$2.18
27	25-20-0120	Upper Guard Cover	$10.71
29	28-14-0100	Gearcase	$31.41
30	28-41-1030	Lower Guard	$24.18
31	31-05-0045	Baffl e	$0.86
32	31-15-0461	Motor Cover	$6.36
34	31-44-0060	Front Handle	$3.89
36	31-44-2156	Handle Lever	$1.24
37	31-50-0050	Motor Housing	$23.08
38	31-52-0015	Depth Lever	$1.46
39	31-52-0025	Guard Lever	$0.97
40	32-75-3205	Gear	$12.03
41	34-40-1375	O-Ring	$0.86
42	34-40-1380	O-Ring	$0.86
43	34-60-0320	External Retaining Ring	$0.86
44	34-60-2330	E-Clip	$0.86
45	38-50-0060	Spindle	$13.18
46	40-50-0045	Guard Spring	$1.41
47	40-50-0055	Compression Spring	$0.86
48	40-50-8040	Bevel Detent Spring	$0.86
49	42-16-0160	Handle Band	$4.38
50	42-38-0222	Rubber Bumper	$0.92
51	42-42-0275	Spindle Lock Button	$0.97
52	43-34-0790	Inner Flange	$1.24
53	43-34-0795	Outer Flange	$1.03
55	44-10-0130	Bevel Adjustment Lever	$1.30
56	44-20-0510	Spindle Lock Pin	$1.03
57	44-40-0780	Adjustment Nut	$0.86
58	44-52-0681	Grip	$3.01
59	44-60-0075	Thru Pin	$0.86
60	44-60-0085	Tapped Pin	$0.86
61	44-60-1180	Pivot Pin	$0.86
62	44-66-0065	Retaining Plate	$2.29
64	44-66-0200	Lock Plate	$1.03
65	44-72-0050	Pointer	$0.86
66	45-04-0485	Bumper Screw	$0.86
69	45-16-0160	Shoe Assembly	$20.44
70	45-88-0577	Wave Spring Washer	$0.86
71	45-88-1515	Washer	$0.86
72	45-88-8460	"5/16"" I.D. Washer"	$0.86
74	49-96-6205	Blade Wrench (Not Shown)	$2.40
