Milwaukee 6140-33 Electric Grinder Parts

Milwaukee 6140-33 Electric Grinder Parts Image

Milwaukee 6140-33 Parts

"4.5"" 7A SAG - SLIDE"

Download Schematic

Time to buy a new tool?

Milwaukee 6140-33

7 Amp 4-1/2 Inch Sma...

$79.99

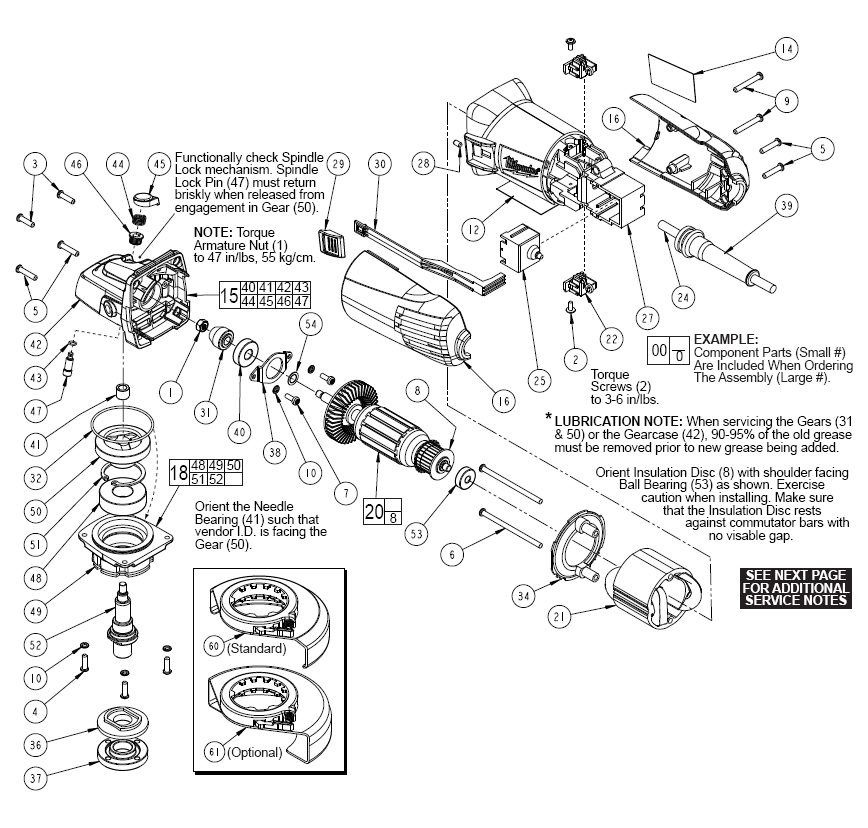

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	05-55-0620	M5 Hex Nut	$0.86
2	05-88-1100	M3 x 10 Pan Hd. Screw	$0.86
3	05-88-1200	M4 x 16 T-20 Screw	$0.86
4	05-88-1210	M4 x 14mm Pan Hd. T-20 Screw	$0.86
5	05-88-1250	M4 x 20 Pan Hd. T-20 Screw	$0.86
6	05-88-1275	M4 x 70 Screw	$0.86
7	05-88-1280	M4 x 10 Pan Hd. T-20 Screw	$0.86
9	05-88-1525	M4 x 30 T-20 Screw	$0.86
10	05-90-0225	Split Washer	$0.86
15	14-29-0300	Gearcase Assembly	$20.06
16	14-34-0700	Rear Handle Assembly	$3.12
18	14-73-0400	Spindle/Hub Assembly	$32.74
20	16-10-7005	Service Armature Assembly	$51.20
21	18-07-2290	Service Field	$21.59
22	22-22-1560	Carbon Brush Assembly	$3.17
24	22-64-2021	Cord	$8.73
25	23-66-2665	Switch	$5.54
27	31-50-3340	Motor Housing	$4.00
28	31-53-0240	Bearing Retaining Plug	$0.86
29	31-92-0430	Slide Switch Button	$0.86
30	31-92-0460	Switch Pole	$0.86
31	32-60-1390	Bevel Pinion	$5.98
32	34-40-0560	O-Ring	$0.86
34	42-14-0475	Fan Baffl e	$1.58
36	43-34-0036	Disk Flange	$3.23
37	44-40-0035	Flange Nut	$2.95
38	44-66-0450	Bearing Retainer	$0.86
39	44-76-0210	Cord Protector	$1.63
39	Boot-C	Strain Relief fits 18/2 AWG only	$4.19
40	02-04-0620	Ball Bearing	$1.58
41	02-50-1195	Needle Bearing	$1.46
42	28-14-0710	Gearcase	$15.22
43	34-40-0450	O-Ring	$0.86
44	40-50-1330	Spring	$0.86
45	42-42-0575	Spindle Lock Button	$0.86
46	42-42-0580	Spindle Lock Tube	$1.36
48	02-04-1150	Ball Bearing	$3.23
49	28-53-0400	Lower Gearcase Hub	$8.50
50	32-05-1090	Bevel Gear	$17.42
51	34-80-2275	Internal Snap Ring	$0.86
52	38-50-1275	Spindle	$13.62
54	45-88-0406	Washer	$0.86
60	43-54-1070	"4.5"" T27 Guard Assembly"	$7.35
61	43-54-1090	"4.5"" T1 Guard Assembly"	$10.71
1001	42-62-0100	Side Handle (Not Shown)	$7.02
1002	49-96-7205	Spanner Wrench (Not Shown)	$5.32
