Milwaukee 6116-33 Electric Grinder Parts

Milwaukee 6116-33 Electric Grinder Parts Image

Milwaukee 6116-33 Parts
"4/5"" 12A SAG - SLIDE"

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Milwaukee 6116-33
4-1/2 Inch 5 Inch 12...
$124.99

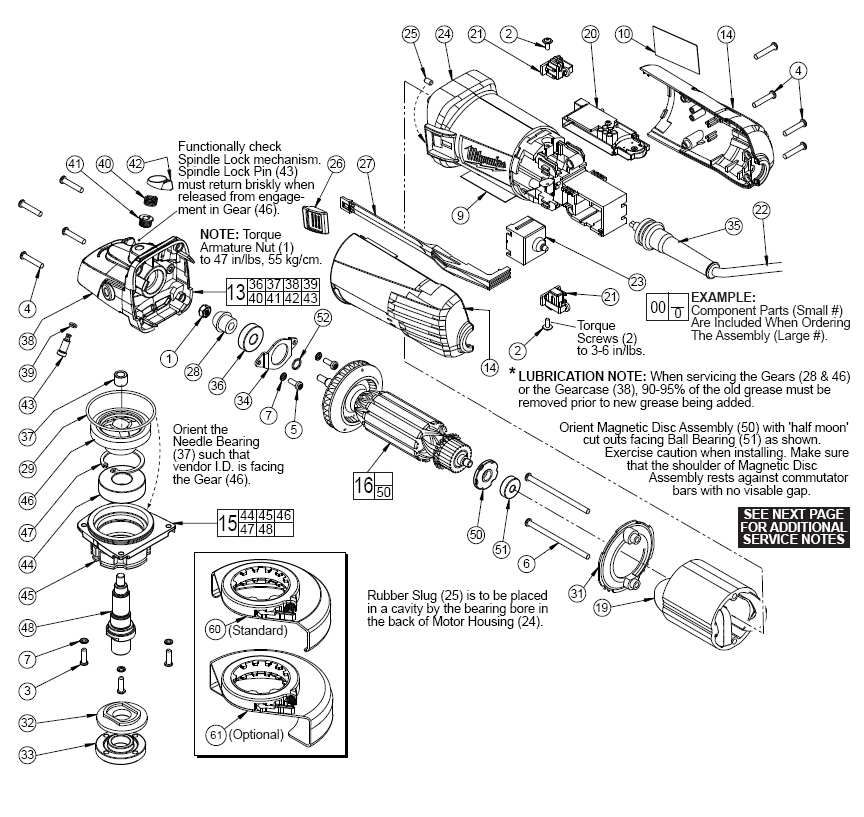

Tool Diagram    (Click image to Zoom in) View larger Image
Milwaukee 6116-33 Electric Grinder Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 05-55-0620 M5 Hex Nut $0.86
2 05-88-1100 M3 x 10 Pan Hd. Screw $0.86
3 05-88-1210 M4 x 14mm Pan Hd. T-20 Screw $0.86
4 05-88-1255 M4 x 22 Pan Hd. T-20 Screw $0.86
5 05-88-1280 M4 x 10 Pan Hd. T-20 Screw $0.86
6 05-88-1290 M4 x 76 T-20 Screw $0.86
7 05-90-0225 Split Washer $0.86
13 14-29-0310 Gearcase Assembly $21.93
14 14-34-0720 Rear Handle Assembly $2.95
15 14-73-0410 Spindle/Hub Assembly $29.02
16 16-10-7010 Service Armature Assembly $48.50
19 18-07-2305 Service Field $25.90
20 22-09-1735 Module Assembly $39.72
21 22-22-1560 Carbon Brush Assembly $3.17
22 22-64-2020 Cord $8.73
22 EC162 This item will be shipped Free Power Tools Replacement Electical Cords (SJO) 16... $14.19
23 23-66-2665 Switch $5.54
24 31-50-3370 Motor Housing $4.82
25 31-53-0240 Bearing Retaining Plug $0.86
26 31-92-0430 Slide Switch Button $0.86
27 31-92-0470 Switch Pole $0.86
28 32-60-1310 Bevel Pinion $9.72
29 34-40-0180 O-Ring $0.86
31 42-14-0490 Fan Baffl e $0.86
32 43-34-0036 Disk Flange $3.23
33 44-40-0035 Flange Nut $2.95
34 44-66-0450 Bearing Retainer $0.86
35 44-76-0210 Cord Protector $1.63
35 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
36 02-04-0620 Ball Bearing $1.58
37 02-50-0025 Needle Bearing $2.84
39 34-40-0450 O-Ring $0.86
40 40-50-1330 Spring $0.86
41 42-42-0580 Spindle Lock Tube $1.36
42 42-42-0590 Spindle Lock Button $0.86
43 42-60-1660 Spindle Lock Pin $0.86
44 02-04-1150 Ball Bearing $3.23
45 28-53-0410 Lower Gearcase Hub $7.74
46 32-05-1310 Bevel Gear $10.32
47 34-80-2275 Internal Snap Ring $0.86
48 38-50-1280 Spindle $7.90
50 23-27-0110 Magnetic Disc Assembly $1.80
52 45-88-0406 Washer $0.86
60 43-54-1070 "4.5"" T27 Guard Assembly" $7.35
61 43-54-1075 "5"" T27 Guard Assembly (Standard)" $7.24
61 43-54-1090 "4.5"" T1 Guard Assembly" $10.71
61 43-54-1095 "5"" T1 Guard Assembly (Optional)" $11.15
1001 42-62-0100 Side Handle (Not Shown) $7.02
1002 49-96-7215 Spanner Wrench (Not Shown) $5.15
