Milwaukee 6089-31 Electric Grinder Parts

Milwaukee 6089-31 Electric Grinder Parts Image

Milwaukee 6089-31 Parts

"7/9"" ROTO-LOK ™ LAG (NON LOCK-ON)"

Download Schematic

Time to buy a new tool?

Milwaukee 6089-31

7/9 Inch 15.0 Amp Ro...

$174.99

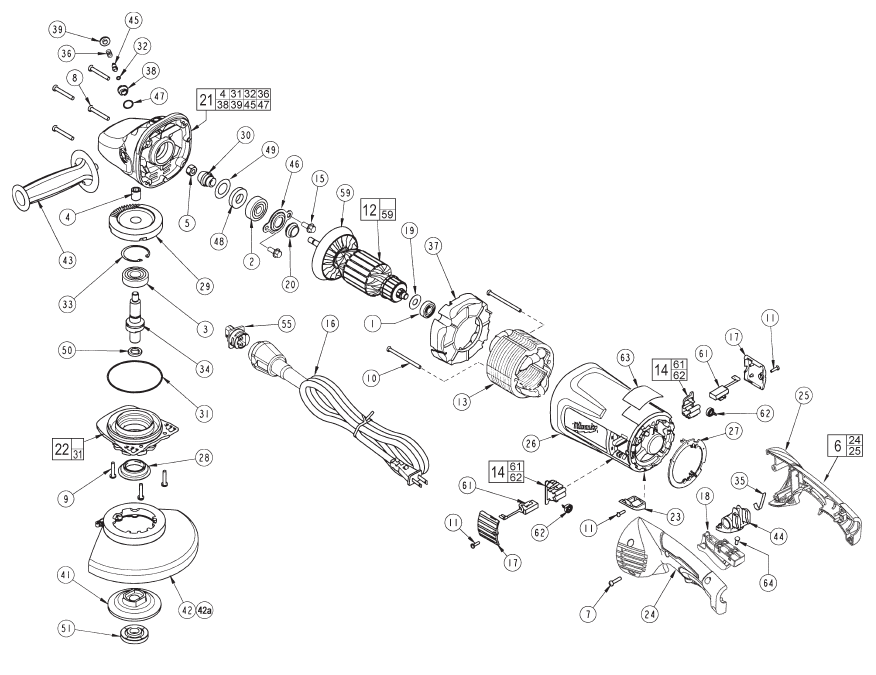

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	02-04-1675	Ball Bearing	$8.23
2	02-04-1680	Ball Bearing	$13.79
3	02-04-1745	Ball Bearing	$5.59
4	02-50-2429	Needle Bearing	$2.40
5	06-55-2455	Hex Nut	$0.86
6	14-34-0564	Handle Kit	$15.05
7	06-82-0055	8-16 Torx Plastite Screw T-20	$0.86
8	06-82-0060	10-14 Torx Plastite Screw T-25	$0.86
9	06-82-0065	10-32 x 1 Pan Hd. Taptite T-25 Screw	$0.86
10	06-82-0070	8-16 Torx Plastite Screw T-15	$0.86
11	06-82-7240	"6-19 x 1/2"" Pan Hd. Plastite"	$0.86
12	16-70-7132	Armature Assembly	$84.10
13	18-70-7130	Field	$42.99
14	22-20-0120	Brush Holder Assembly	$14.01
15	06-75-0510	1/4-20 x .625 Hex Flange Screw	$0.86
17	23-44-0255	Brush Cover	$1.14
18	23-66-2726	Switch	$18.79
19	45-06-0830	Bearing Seal	$0.86
20	31-55-0290	Dust Shield	$0.92
21	28-14-1131	Gearcase Assembly	$59.40
22	28-53-0151	Spindle Hub Assembly	$27.18
23	31-15-0166	Cover	$0.97
26	31-50-1785	Motor Housing	$18.24
27	31-53-0161	Plug	$0.92
28	31-55-0150	Bearing Shield	$1.03
29	32-05-1505	Gear	$19.95
30	32-60-1505	Pinion Gear	$8.50
31	34-40-0505	O-Ring	$1.08
32	34-40-4300	O-Ring	$0.86
33	34-80-2960	Retaining Ring	$1.03
34	38-50-2500	Spindle Shaft	$27.10
35	40-50-1375	Flat Spring	$1.85
36	40-50-1550	Compression Spring	$0.86
37	42-14-0425	Baffl e	$2.13
38	42-30-0150	Lock Body	$2.73
39	42-42-0290	Button	$0.86
41	43-34-0825	5/8 Back Flange	$8.50
42	49-12-0010	"7"" Guard Assembly (Type 27)"	$31.92
42a	49-12-0020	"9"" Guard Assembly (Type 27)"	$35.49
43	43-62-1266	Side Handle	$8.01
44	44-20-0502	Rotating Handle Lever	$1.03
45	44-60-1650	Lock Pin	$1.69
46	44-86-0040	Bearing Retainer	$0.97
47	34-40-4555	O-Ring	$0.86
48	45-06-0710	Seal	$0.97
49	45-88-7880	Shim Washer	$0.86
50	45-88-8466	5/8-11 Spindle Washer	$0.86
51	49-05-0110	Flange Nut	$4.38
55	22-56-1051	Blade Housing Assembly	$4.60
59	22-84-0540	Fan Assembly	$3.61
61	22-18-0126	Carbon Brush Assembly	$6.14
63	12-99-5008	Nameplate Blank	$2.40
64	05-78-0305	M3.5 x 0.6 x 7mm Pan Hd. Slotted T-15	$0.86
1001	49-96-7205	Spanner Wrench (Not Shown)	$5.32
