Milwaukee 6072 Sanders & Polishers Parts

Milwaukee 6072 Parts

"7/9"" 5000 13A DI SANDER "

Download Schematic

Time to buy a new tool?

Milwaukee 6072

7/9 Inch max HP, 500...

$183.99

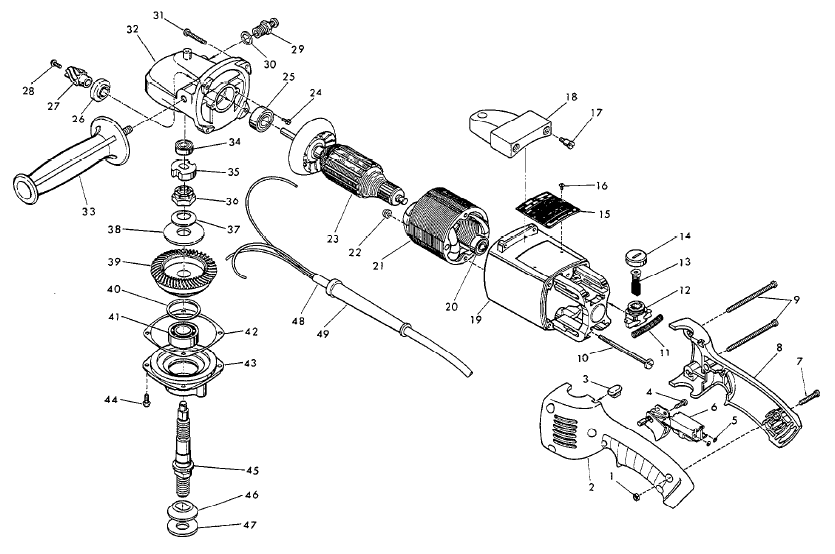

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	06-55-1050	10-24 Hex Nut	$0.86
3	42-38-0190	Bumper	$1.46
11	40-50-7770	Brush Holder Spring	$0.86
12	22-22-1325	Brush Holder Assembly	$2.29
13	22-18-0680	Carbon Brush Assembly	$8.99
13	N09	Carbon Brush Set Replaces Milwaukee 22-18-0680, ...	$8.50
14	23-44-0210	Brush Retaining Screw	$2.18
18	31-70-0140	Tool Rest	$3.94
20	02-04-0845	Ball Bearing	$5.26
21	18-50-0170	120 V. Field	$56.10
22	06-57-3005	10-32 Locking Hex Nut	$2.40
29	44-20-0235	Spindle Lock Assembly	$5.04
30	45-88-5320	Flat Washer	$0.86
34	02-04-0820	Ball Bearing	$3.56
35	42-74-0080	Spindle Locking Cog	$3.12
40	34-80-2960	Retaining Ring	$1.03
42	45-14-0185	Shim .005 Thick	$0.86
44	06-95-0325	10-24 x 3/8” Pan Hd. Taptite Screw	$0.86
46	49-05-0060	Spindle Washer - Flange	$2.62
48	22-64-0121	Cord Set	$14.45
48	EC162	Power Tools Replacement Electical Cords (SJO) 16...	$14.19
49	44-76-0050	Strain Relief	$1.63
