Milwaukee 6066-6 Sanders & Polishers Parts

Milwaukee 6066-6 Sanders & Polishers Parts Image

Milwaukee 6066-6 Parts

"7/9"" 6000 15A SANDER W/LOCK-ON "

Download Schematic

Time to buy a new tool?

Milwaukee 6066-6

3.5 max HP, 7 Inch /...

$178.99

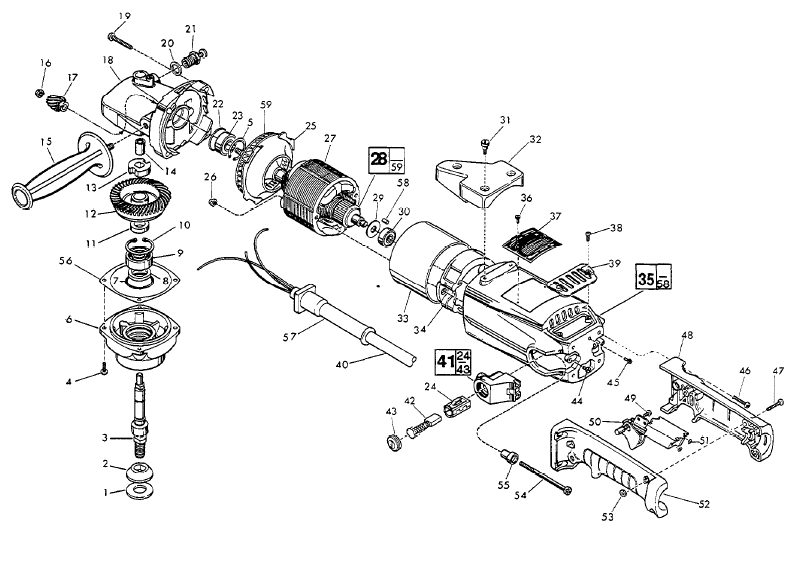

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
2	49-05-0060	Spindle Washer - Flange	$2.62
3	38-50-5560	Spindle Shaft	$26.05
5	34-80-2600	Retaining Ring - Internal	$0.86
6	28-14-1735	Lower Gear Case	$16.76
8	45-06-0330	Felt Seal.	$0.86
10	34-80-2960	Retaining Ring	$1.03
13	42-74-0080	Spindle Locking Cog	$3.12
14	02-50-2428	Needle Bearing	$17.53
18	28-14-2035	Upper Gear Case	$33.35
19	06-82-5716	1/4-20 x 1 -1/4” Pan Hd. Ton:	$0.86
20	45-88-5320	Flat Washer	$0.86
21	44-20-0235	Spindle Lock Assembly	$5.04
22	34-40-1375	O-Ring	$0.86
24	22-20-0360	Brush Tube	$1.19
25	42-14-0300	Baffle	$3.01
26	06-57-3005	10-32 Locking Hex Nut	$2.40

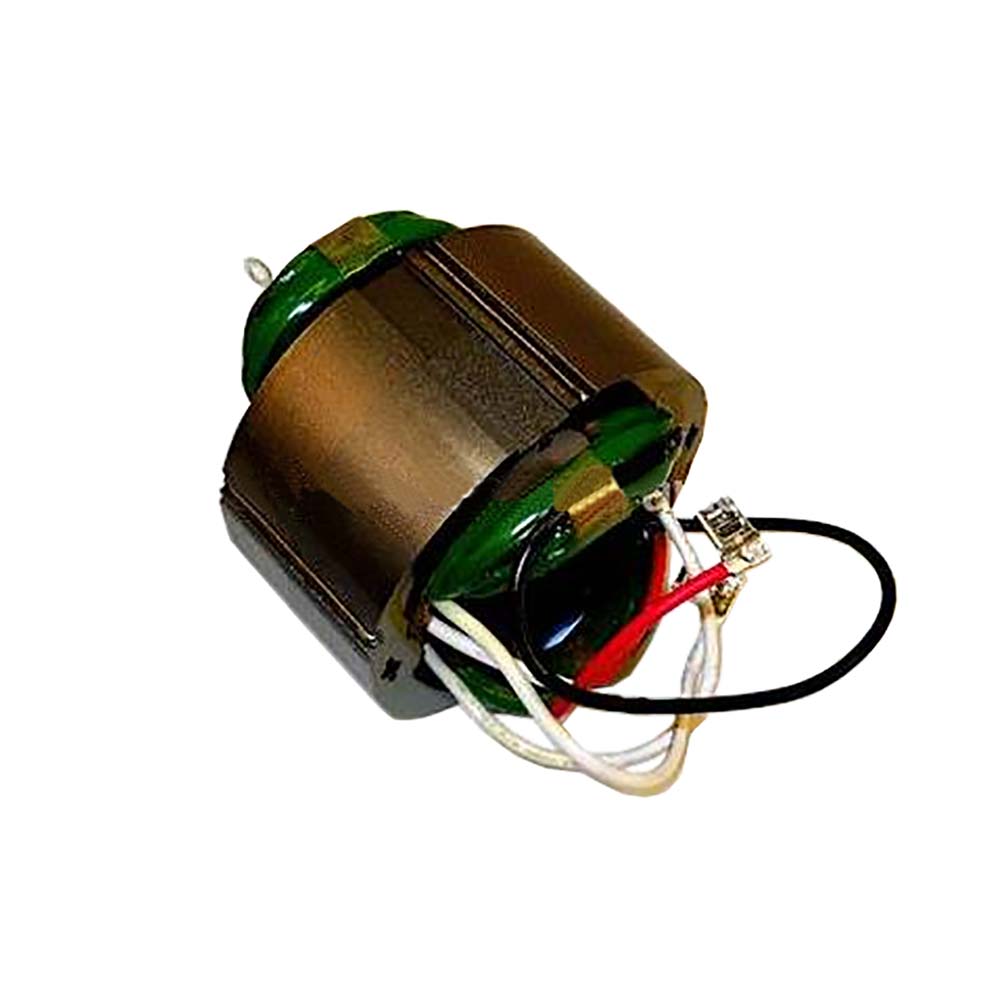

27	18-70-0260	120 Volt Fie lJ	$83.95
28	16-70-0300	120 Volt Armature	$114.81
29	45-06-0390	Dust Seal	$0.86
30	02-04-0911	Ball Bearing	$5.76
32	31-70-0150	Tool Rest	$3.01
33	23-16-0950	Insulating Sleeve	$1.52
34	31-55-0110	Coil Shield	$2.62
35	28-50-6351	Motor Housing	$31.46
39	31-15-0310	Cover Plate	$1.19
40	22-64-3000	Cord Set	$20.94
40	EC143V6	Power Tools Replacement Electical Cords (SJO) 14...	$23.19
41	22-22-0401	Brush Holder Assembly	$5.54
43	23-44-0170	Brush Retaining Cap	$1.30
44	06-82-7252	"8-32 x 3/8"" Pan Hd. Slt. Tapt. T-20 Screw"	$0.86
45	06-95-5200	6-32 x 5/16’ Slot Hex Hd. Screw	$0.86
46	06-82-5574	"10-24 x 7/8"" Pan Hd. Tapt. T-25 Screw"	$0.86
47	06-82-2378	10-24 x 1’ Pan Hd. Torx Screw	$0.86
48	31-44-0606	Right Handle Half	$4.16
49	06-82-7409	"8-16 x 1/2"" Slot. Pan Hd. T-20 Screw"	$0.86
51	06-97-1800	Switch Lockwasher - No. 6 Internal	$1.52
52	31-44-0607	Left Handle Half	$4.16
53	06-55-1050	10-24 Hex Nut	$0.86
55	31-86-0160	lnsulatin Bushin	$1.03
57	44-76-0170	Cord Protector	$2.07
58	45-30-0070	Bearing Retaining Slug	$0.86
59	22-64-0800	Cord	$9.33
