Milwaukee 6065-6 Sanders & Polishers Parts

Milwaukee 6065-6 Sanders & Polishers Parts Image

Milwaukee 6065-6 Parts

"7/9"" 5000 15A SANDER W/LOCK-ON "

Download Schematic

Time to buy a new tool?

Milwaukee 6065-6

7/9 Inch 5,000 Rpm 1...

$172.99

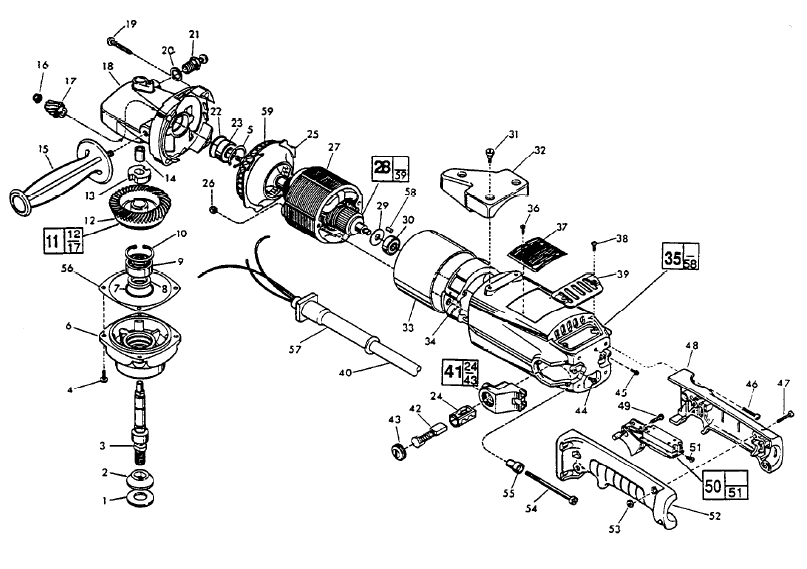

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	45-88-8465	Spindle Washer	$0.86
2	49-05-0060	Spindle Washer - Flange	$2.62
3	38-50-5560	Spindle Shaft	$26.05
4	06-82-8880	lo-24 x 5/8” Pan Hd. Taptite, T-25	$0.86
6	28-14-1735	Lower Gear Case	$16.76
7	34-40-1550	O-Ring	$0.86
8	45-06-0330	Felt Seal.	$0.86
9	02-04-1745	Ball Bearing	$5.59
10	34-80-2960	Retaining Ring	$1.03
11	14-46-4330	Bevel Gear Kit	$37.68
12	32-05-2191	Spiral Bevel Gear	$26.60
13	42-74-0080	Spindle Locking Cog	$3.12
14	02-50-2428	Needle Bearing	$17.53
16	06-57-0500	l/4 - 26 Locking Hex Nut	$0.86
17	32-60-1286	Spiral Bevel Pinion	$14.06
18	28-14-2035	Upper Gear Case	$33.35
19	06-82-5716	1/4-20 x 1 -1/4” Pan Hd. Ton:	$0.86
20	45-88-5320	Flat Washer	$0.86
21	44-20-0235	Spindle Lock Assembly	$5.04
22	34-40-1375	O-Ring	$0.86
23	02-04-1229	Ball Bearing	$4.71
24	22-20-0360	Brush Tube	$1.19
25	42-14-0300	Baffle	$3.01
26	06-57-3005	10-32 Locking Hex Nut	$2.40
27	18-70-0260	120 Volt Fie lJ	$83.95
28	16-70-0300	120 Volt Armature	$114.81
29	45-06-0390	Dust Seal	$0.86
30	02-04-0913	Ball Bearing	$3.45
31	45-04-0720	Shoulder Screw	$0.86
32	31-70-0150	Tool Rest	$3.01
33	23-16-0950	Insulating Sleeve	$1.52
34	31-55-0110	Coil Shield	$2.62
35	28-50-6351	Motor Housing	$31.46
36	06-82-5270	"6-32 x 1/4"" Pan Hd. Slt. Tapt. T-15"	$0.86
37	12-99-0408	Nameplate Blank	$2.02
38	06-82-3792	"8-32 x 3/8"" Flat Head Taptite T-15"	$0.86
39	31-15-0310	Cover Plate	$1.19
40	22-64-3000	Cord Set	$20.94
40	EC143V6	Power Tools Replacement Electical Cords (SJO) 14...	$23.19
41	22-22-0401	Brush Holder Assembly	$5.54
42	22-18-0730	Carbon Brush Assembly	$7.30
43	23-44-0170	Brush Retaining Cap	$1.30
44	06-82-7252	"8-32 x 3/8"" Pan Hd. Slt. Tapt. T-20 Screw"	$0.86
45	06-95-5200	6-32 x 5/16’ Slot Hex Hd. Screw	$0.86
46	06-82-5574	"10-24 x 7/8"" Pan Hd. Tapt. T-25 Screw"	$0.86
47	06-82-2378	10-24 x 1’ Pan Hd. Torx Screw	$0.86
48	31-44-0606	Right Handle Half	$4.16
49	06-82-7409	"8-16 x 1/2"" Slot. Pan Hd. T-20 Screw"	$0.86
51	05-78-0305	M3.5 x 0.6 x 7mm Pan Hd. Slotted T-15	$0.86
52	31-44-0607	Left Handle Half	$4.16
53	06-55-1050	10-24 Hex Nut	$0.86
54	06-82-9600	10-32 x 3-3/16” Field Screw, T-25	$0.86
55	31-86-0160	lnsulatin Bushin	$1.03
57	44-76-0170	Cord Protector	$2.07
58	45-30-0070	Bearing Retaining Slug	$0.86
