Milwaukee 5619-20 Router Parts

Milwaukee 5619-20 Router Parts Image

Milwaukee 5619-20 Parts
ROUTER 1-3/4 MAX HP D-HANDLE

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Milwaukee 5619-20
1 3/4 Max HP D-Handl...
$169.00
Tool Diagram    (Click image to Zoom in) View larger Image

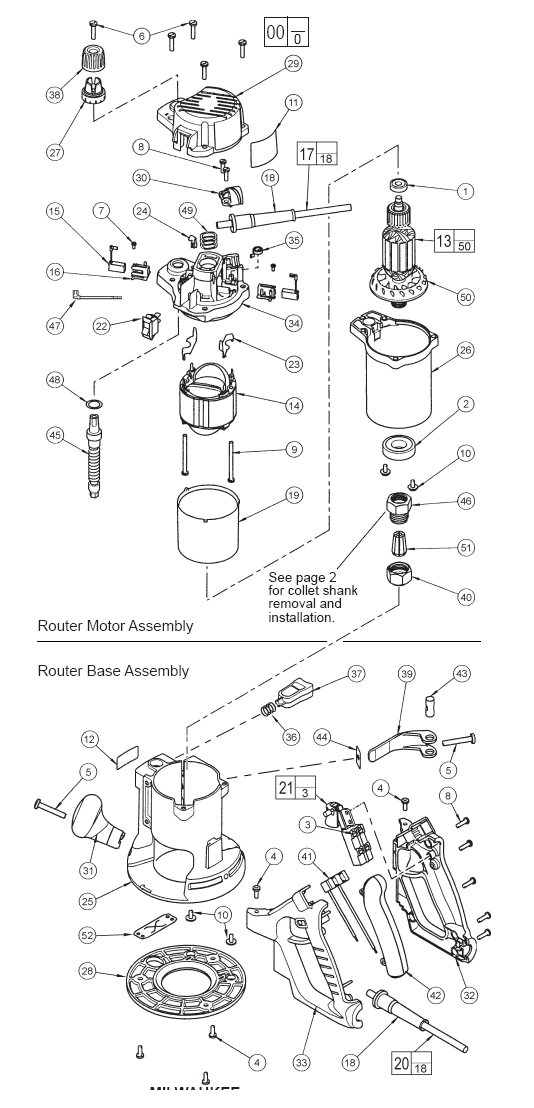

Milwaukee 5619-20 Router Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 02-04-0852 Ball Bearing $3.34
3 05-78-0305 M3.5 x 0.6 x 7mm Pan Hd. Slotted T-15 $0.86
4 06-82-5314 10-24 x .5 Pan Hd. Tapt. T-25 $0.86
5 06-82-5514 "1/4-20 x 1.50"" Slt. Pan Hd. Tapt. T-30" $1.03
6 06-82-5574 "10-24 x 7/8"" Pan Hd. Tapt. T-25 Screw" $0.86
7 06-82-7212 4-20x1/4” Pan Hd. Plastite T-10 $0.86
8 06-82-7270 "8-16 x 5/8"" Slt. Pan Hd. Plast. T-20" $0.86
9 06-82-7455 "8-16 x 2.38"" Pan Hd. Slt. Plast. T-20" $0.86
10 06-82-8865 "10-32 x .43"" Pan Hd. Tapt. Sems T-25" $1.24
12 12-25-0335 Nameplate $0.86
13 16-30-0011 Armature $66.15
14 18-30-1010 Field $43.75
15 22-16-0410 Carbon Brush $1.85
16 22-22-0165 Brush Tube $8.01
17 22-64-0815 Cord Set Assembly $4.00
18 44-76-0210 Cord Protector $1.63
18 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
19 23-16-0405 Field Insulator $2.95
20 22-64-0820 Cord Set Assembly $7.85
21 23-66-0168 Switch Assembly $10.32
22 23-66-2280 Rocker Switch $10.27
23 23-74-0025 Field Terminal $0.97
24 23-74-0055 Connector Terminal $0.97
25 26-06-0100 Base $35.75
26 28-50-0105 Motor Housing $22.75
27 31-01-0025 Depth Scale $2.79
29 31-15-0065 Motor Cover $5.04
30 31-17-0070 Cord Clamp $1.19
31 31-44-0130 Knob Handle $5.81
32 31-44-0140 Right Handle Halve $4.11
33 31-44-0145 Left Handle Halve $4.11
34 31-50-0106 Motor Frame $10.98
35 40-50-0190 Brush Spring $0.86
36 40-50-4005 Compression Spring $0.86
37 42-42-0126 Release Button $1.96
38 43-98-0531 Depth Knob $1.41
39 44-10-0435 Base Clamp Lever $2.73
40 44-40-0095 Collet Nut $4.38
41 23-33-0065 Receptacle Outlet $3.17
42 44-52-0681 Grip $3.01
43 44-60-0095 Thru Pin $2.02
44 44-66-0035 Wear Plate $0.92
45 45-08-0030 Depth Shaft Assembly $11.97
46 45-10-0081 Collet Shank (See reverse side for servicing) $8.62
47 23-94-0040 Leadwire Assembly $1.14
48 45-88-0045 Washer $0.97
49 45-88-0577 Wave Spring Washer $0.86
50 22-84-0380 Fan Assembly $6.08
51 48-66-0985 "1/4"" Collet" $28.50
51 48-66-1010 "1/2"" Collet" $28.50
52 45-12-0015 Dust Shield $0.86
1001 49-96-0365 "1-1/8"" Open End Wrench (Not Shown)" $5.54
