Milwaukee 5460-6 Sanders & Polishers Parts

Milwaukee 5460-6 Parts

POLISHER 7/9 0-1750 DI

Download Schematic

Time to buy a new tool?

Milwaukee 5460-6

7/9 Inch Dial Speed ...

$205.99

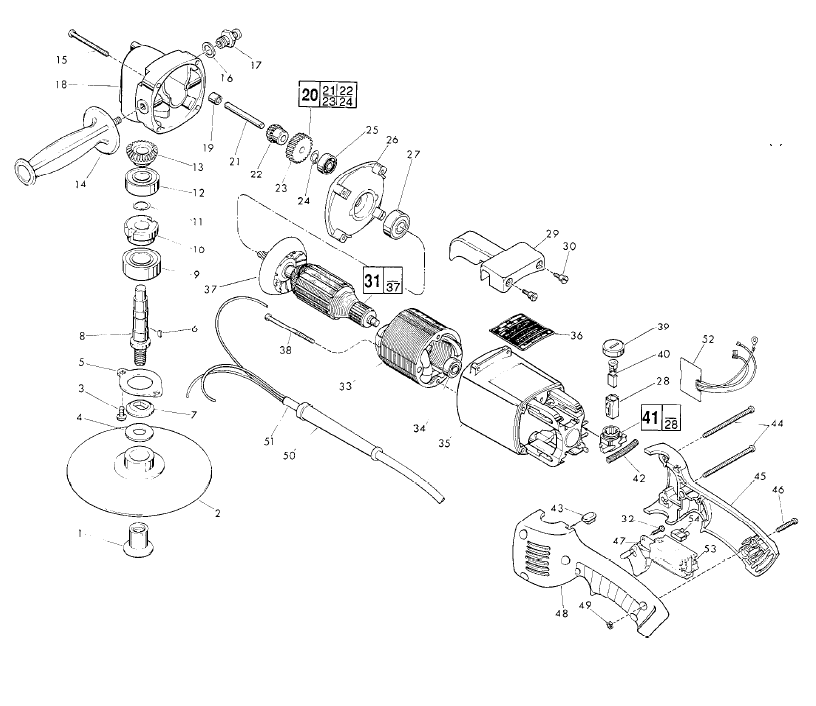

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	49-40-0390	Disc Nut	$9.39
3	06-82-5360	1/4-20 x .625 Taptite T-30	$0.86
5	45-88-7785	Spindle Retaining Washer	$1.74
6	06-42-1600	Woodruff Key	$0.86
7	49-05-0060	Spindle Washer - Flange	$2.62
8	38-50-5231	Spindle Shaft	$23.74
10	42-74-0070	Spindle Locking Cog	$2.35
12	02-04-1747	Ball Bearing	$4.33
13	32-05-1081	Bevel Gear	$19.40
15	06-82-7441	10-14 x 1-7/8” Pan Hd. Sit Plastite T-25	$0.86
16	45-88-5320	Flat Washer	$0.86
17	44-20-0211	Spindle Lock Assembly	$4.99
18	28-14-1430	Gear Case	$33.04
19	02-50-2200	Needle Bearing	$2.68
20	14-73-0130	Intermediate Gear Assy.	$29.68
25	02-04-0910	Ball Bearing	$3.56
26	28-28-1565	Diaphragm	$18.02
27	02-04-1229	Ball Bearing	$4.71
28	22-20-0660	Brush Tube	$0.86
29	31-70-0110	Tool Rest	$3.67
30	45-04-0720	Shoulder Screw	$0.86
32	06-82-7409	"8-16 x 1/2"" Slot. Pan Hd. T-20 Screw"	$0.86
33	18-50-0091	120 Volt Field	$52.25
34	02-04-0845	Ball Bearing	$5.26
37	22-84-0710	Fan	$5.43
38	06-82-7375	8-16 x 2.50 Slotted Plastite T-20	$0.86
39	23-44-0210	Brush Retaining Screw	$2.18
40	22-18-0680	Carbon Brush Assembly	$8.99
40	N09	Carbon Brush Set Replaces Milwaukee 22-18-0680, ...	$8.50
41	22-22-1325	Brush Holder Assembly	$2.29
42	40-50-7770	Brush Holder Spring	$0.86
43	42-38-0190	Bumper	$1.46
44	06-82-2598	"10-24 x 2-3/4"" Slot. Pan Hd. T-25 Screw"	$0.86
46	06-82-2568	"10-24 x 7/8"" Slot. Pan Hd. T-25 Screw"	$0.86
47	23-66-1940	Switch	$26.62
49	06-55-1050	10-24 Hex Nut	$0.86
50	44-76-0050	Strain Relief	$1.63
53	05-89-0045	Terminal Screw	$1.46
54	22-56-0456	Terminal Block	$0.86
