Milwaukee 5446-21 Demolition Tools

Milwaukee 5446-21 Demolition Tools Image

Milwaukee 5446-21 Parts

DML HMR 15LBS SDS-MAX

Download Schematic

Time to buy a new tool?

Milwaukee 5446-21

SDS-Max Demolition H...

$589.99

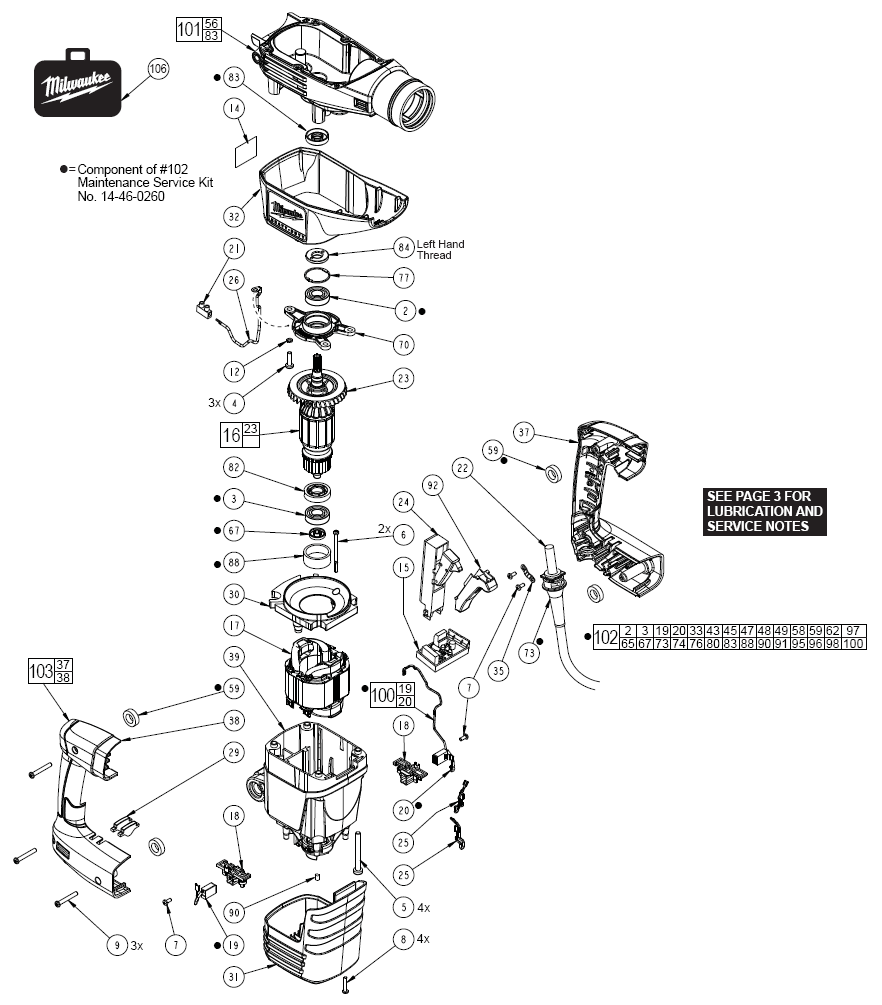

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

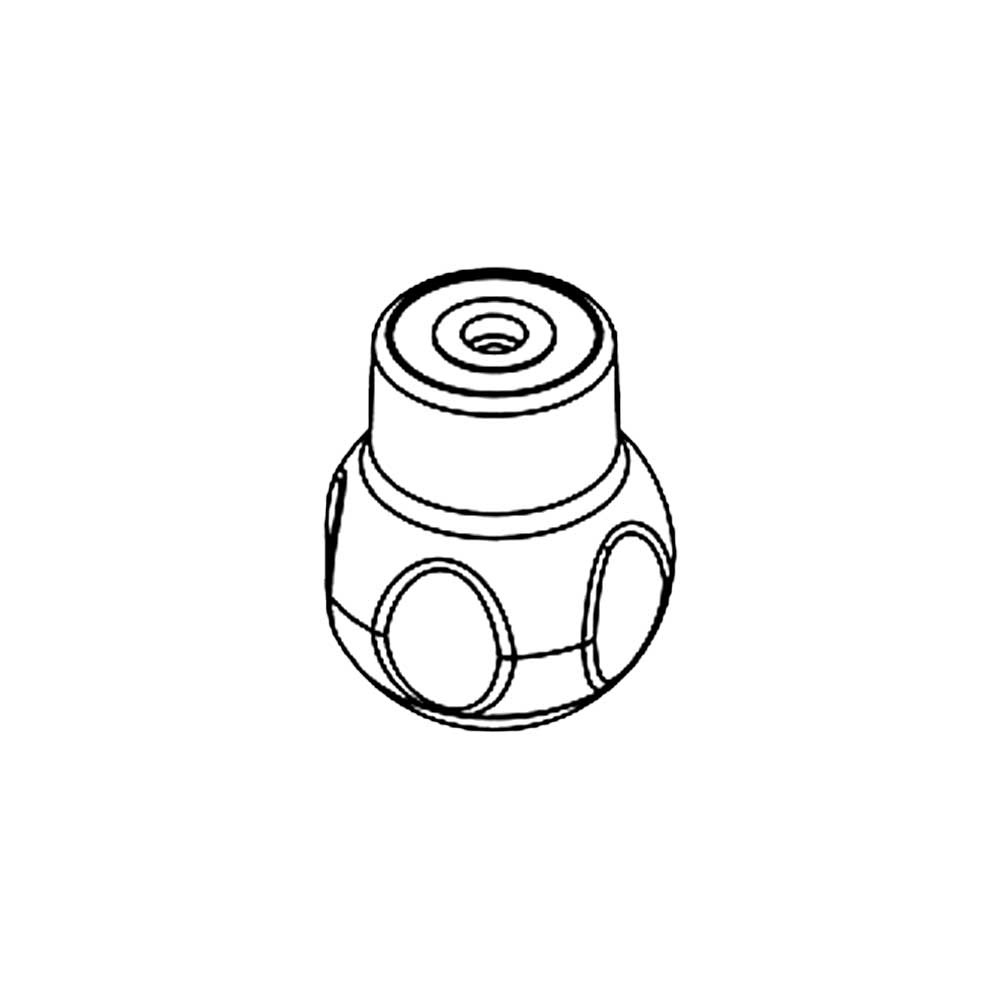

Fig.	Part #	Part Name	Price

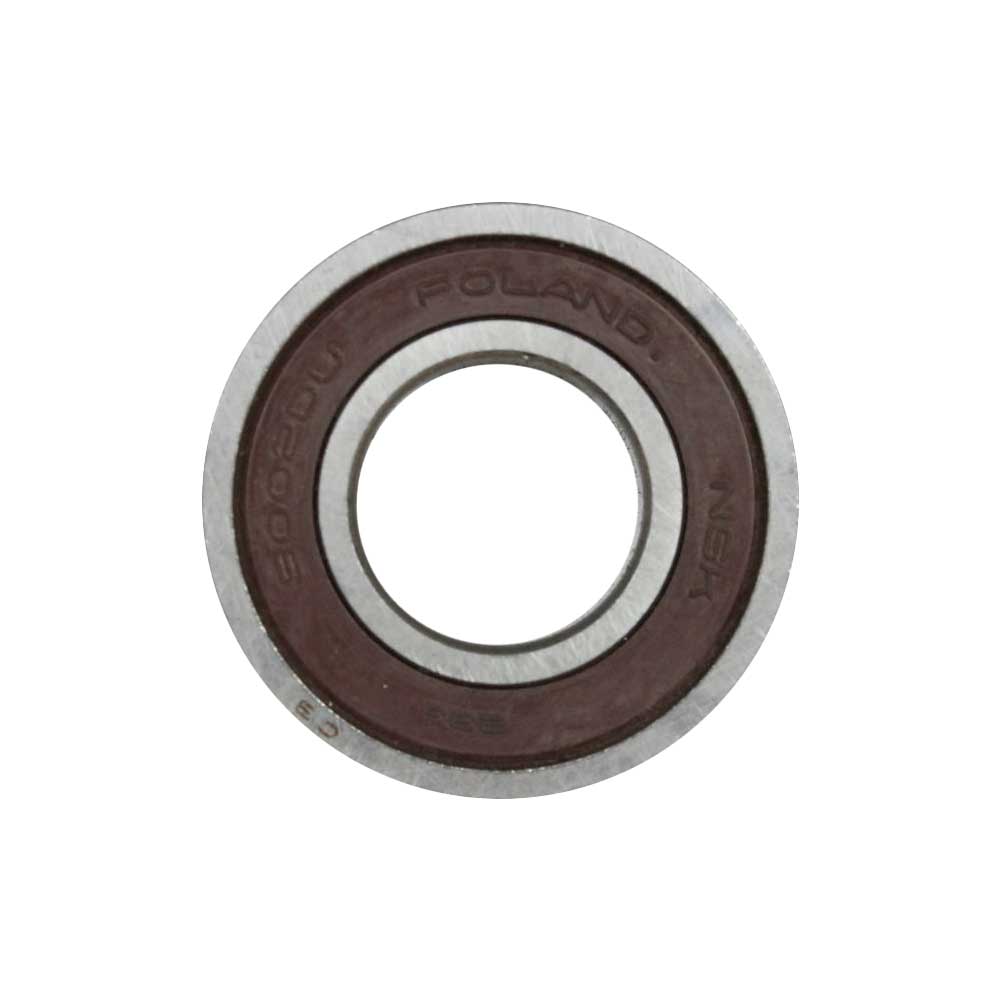

2	02-04-0140	Ball Bearing	$6.97
3	02-04-0150	Ball Bearing	$5.04
4	05-74-0060	M5 x 20 Taptite T-25 Screw	$0.86
5	05-74-0070	M6 x 60 Taptite T-30 Screw	$0.86
7	05-74-0250	M9 x 9.5 T-15 Screw	$0.86
8	05-74-0270	H-K4 x 22 T-15 Screw	$0.86
9	05-74-0280	M5 x 35 T-20 Screw	$0.86
12	05-90-0190	M5 Spring Washer	$0.86
15	14-20-0340	PC Board	$44.77
16	16-50-0120	Service Armature Assembly	$97.20
17	18-50-0120	Service Field Assembly	$74.65
18	22-20-0050	Brush Holder Assembly	$5.15
22	22-64-0880	Power Cord	$33.71
23	22-84-0010	Fan	$2.07
24	23-66-0033	Switch	$17.42
25	23-94-0110	Wire Harness	$0.92
26	23-94-0430	Grounding Wire Harness	$2.73
29	31-01-0090	Light Pipe	$2.51
30	31-05-0140	Fan Baffl e	$5.15
31	31-12-0070	Motor Cap	$12.36
32	31-12-0260	Shroud	$12.36
39	31-50-0100	Motor Housing	$19.23
59	42-42-0031	Bushing	$4.60
67	44-26-0090	Magnetic Disc	$10.49
70	44-66-0220	Bearing End Plate	$13.62
73	44-76-0320	Cord Protector	$4.00
77	44-90-0080	Internal Retaining Ring	$6.31
82	45-06-0020	Dust Seal	$10.21
83	45-06-0030	Armature Seal	$6.31
84	45-06-0120	Seal Ring-Left Hand Thread	$8.56
88	45-22-0110	Rubber Sleeve	$1.96
90	45-30-0055	Slug	$1.14
92	45-72-0020	Trigger	$2.40
100	14-46-0275	Brush Service Kit	$18.90
101	14-46-0355	Gearcase Service Kit	$96.20
103	14-46-0215	Handle Service Kit	$26.01
106	42-55-0190	Accessory Carrying Case	$83.60
1	02-04-0120	Needle Bearing	$2.51
10	05-74-0310	M5 x 25 Taptite T-25 Screw	$0.86
11	05-74-0320	M5 x 12 PE T-20 Grade 8.8 Screw	$0.86

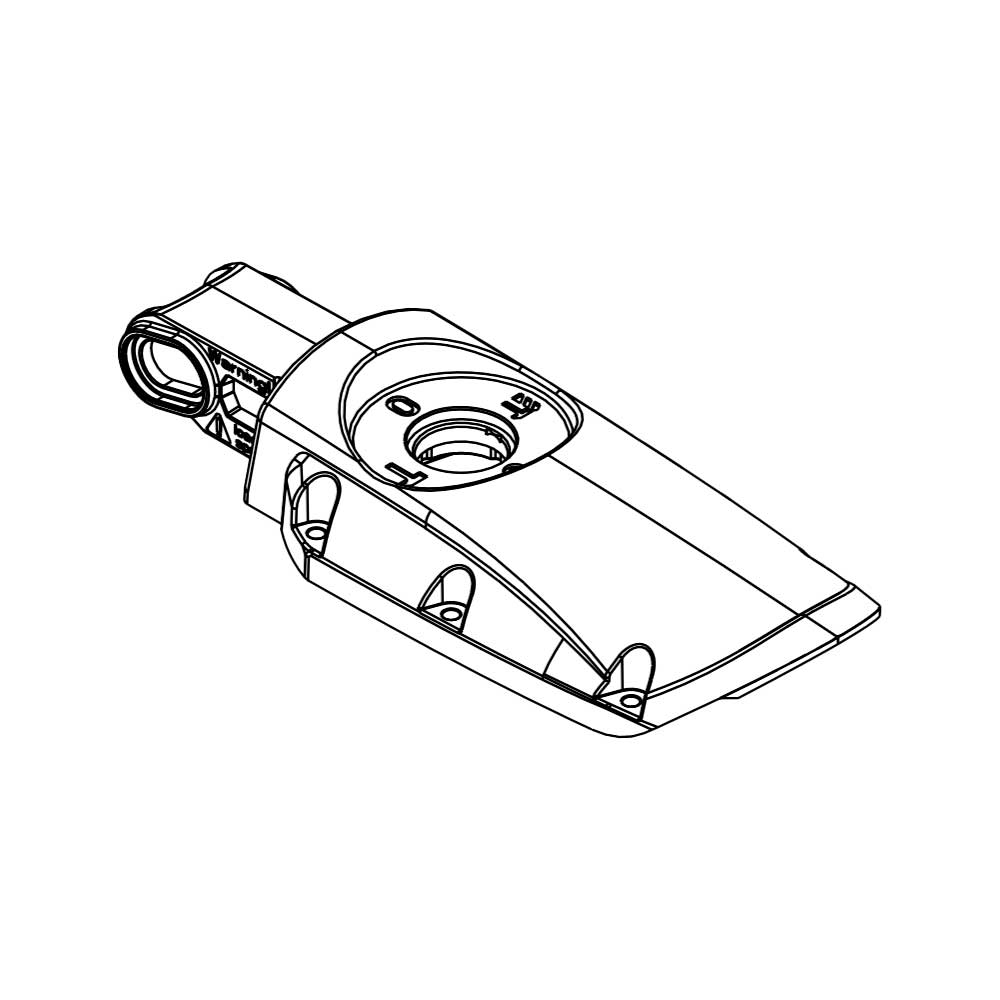

28	28-20-0030	Gearcase Cover	$48.45
33	31-12-0420	Rubber Cap	$3.23
34	31-44-0165	Auxiliary Handle Detent	$42.12
41	32-65-0010	Crank Gear	$13.24
43	34-40-0020	O-Ring	$0.86
44	34-40-0085	O-Ring	$4.16
45	34-40-0170	O-Ring	$0.86
46	34-40-0175	O-Ring	$0.86
47	34-60-0040	Core Lifter Ring	$4.82
48	34-60-0090	Internal Snap Ring	$2.73
49	34-60-0110	Internal Snap Ring	$0.86
50	34-80-0010	Internal Retaining Ring	$7.90
51	40-50-0610	Pressure Spring	$1.74
52	40-50-0620	Barrel Spring	$1.24
53	40-50-0630	Drive Selector Spring	$5.10
54	42-06-0010	Ram	$22.64
55	42-68-0045	Auxiliary Handle Clamp	$4.05
56	42-24-0010	Sleeve Bearing	$2.40
58	42-38-0410	Dampening Bumper	$2.07
60	42-76-0020	Idle Collar	$7.35
61	42-76-0030	Thrust Collar	$3.78
62	43-44-0120	Gearcase Gasket	$3.56
64	43-56-0100	Spring Guide	$2.73
65	43-96-0010	Interlock	$10.16
66	44-10-0190	Drive Selector Lever	$6.31
69	44-62-0010	Piston Assembly	$7.90
71	44-66-0370	Locking Plate	$4.60
72	44-66-0420	Latch Plate	$6.58
74	44-86-0020	Seal Retainer	$15.55
75	44-86-0140	Retaining Ring Key	$1.74
76	44-86-0160	Retaining Ring Key	$5.15
78	44-90-0301	Spindle Ring	$4.77
79	44-90-0440	Seal	$7.57
80	44-90-0510	Seal	$1.30
85	45-22-0020	Spindle Sleeve	$132.61
86	45-22-0030	Sleeve	$20.11
87	45-22-0040	SDS Sleeve	$1.85
89	45-24-0060	Drive Selector Slide	$6.31
91	45-56-0010	Striker	$44.77
93	45-88-0960	Cushion Washer	$6.31
94	45-88-1000	Washer	$0.86
95	45-88-1120	Washer	$2.73
96	45-88-1490	Washer	$5.15
98	45-88-1570	Stop Washer	$10.16
99	14-46-0295	Handle Service Kit	$51.55
101	14-46-0355	Gearcase Service Kit	$96.20
104	14-46-0285	Drive Selector Service Kit	$2.57
105	14-46-0345	Piston Service Kit	$10.87
107	14-46-0290	Spindle Sleeve Service Kit	$212.10
1001	49-08-4255	Type 'Q' Grease, 45gm (1.5 oz) Tube	$7.85
