Milwaukee 5378-20 Electric Drill & Driver Parts

Milwaukee 5378-20 Electric Drill & Driver Parts Image

Milwaukee 5378-20 Parts
DRILL HMR 1/2 PSTL DI

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Milwaukee 5378-20
1/2 Inch Pistol Grip...
$137.99
Tool Diagram    (Click image to Zoom in) View larger Image

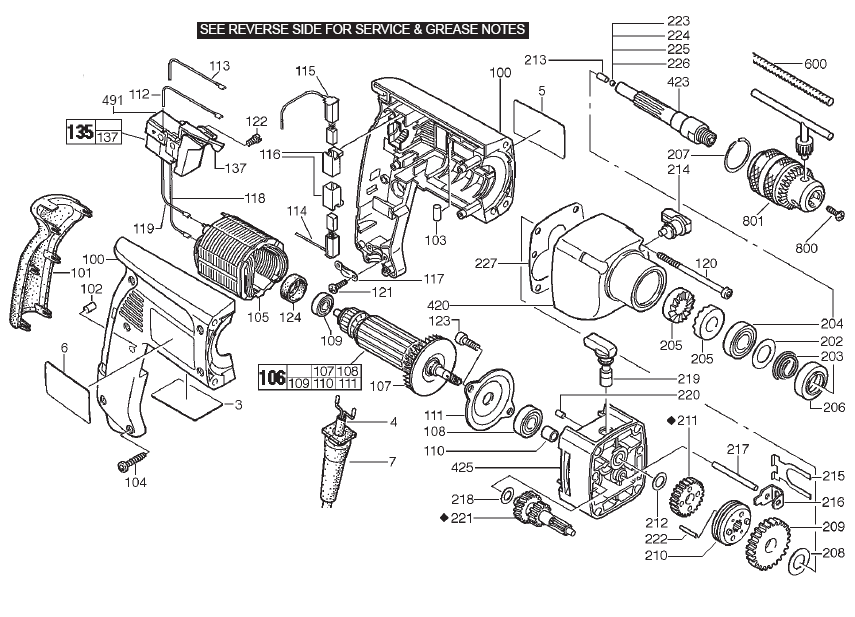

Milwaukee 5378-20 Electric Drill & Driver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
3 12-20-0415 Nameplate $6.31
4 22-64-0515 Cord Set $13.02
7 44-76-0290 Cord Strain Relief $1.08
7 Boot-C This item will be shipped Free Strain Relief fits 18/2 AWG only $4.19
100 14-38-0445 Housing Assembly $19.89
101 44-52-0585 Handle Cushion $2.40
102 45-30-0055 Slug $1.14
103 45-30-0195 Retaining Slug $0.86
104 05-78-0715 Screw $0.86
105 18-07-0150 Field $25.89
107 22-84-0930 Fan $1.36
108 02-04-1825 Ball Bearing $4.27
109 02-04-1820 Ball Bearing $6.91
110 42-40-1045 Bushing $3.23
111 42-92-0070 Bearing Cover $1.19
112 23-94-1045 Wire $0.86
113 23-94-1050 Wire $0.86
114 22-22-0885 Brush Assembly - Lower $11.64
115 22-22-0890 Brush Assembly - Upper $6.91
116 22-20-0225 Brush Holder $0.86
117 31-17-0240 Cord Clamp $0.86
118 23-94-1055 Wire $0.86
119 23-94-1060 Wire $0.86
120 06-82-9640 Screw $0.86
121 05-78-0720 Screw $0.86
122 05-81-0932 SCREW $0.86
123 05-81-0960 Screw $0.86
124 45-22-0550 Rubber Sleeve $0.86
137 44-10-0065 Switch Lever $6.80
202 45-88-8295 WASHER $0.86
203 40-50-8890 VIBRATION SPRING $0.86
204 02-04-1830 BALL BEARING $7.13
205 44-84-0295 RATCHET (SET OF 2) $2.45
206 44-90-0004 SEAL RING $2.45
207 44-90-0365 Snap Ring $0.97
208 45-88-1300 WASHER $0.86
209 32-75-1220 Spindle Gear $12.69
210 44-90-4505 Shift Ring $15.22
212 45-88-8335 Washer $0.86
213 44-60-1490 PIN $0.86
214 44-10-0095 Shift Lever $1.96
215 40-50-8355 Retaining Spring $0.86
216 42-70-0790 Shifting Clip $1.63
217 44-60-1470 PIN $0.97
218 45-88-8345 THRUST WASHER $0.86
219 44-10-0105 Shift Lever $3.61
220 44-60-1500 Pin $0.86
221 14-46-5378 Reduction Gear/Spindle Gear Kit $38.91
222 44-60-1475 PIN $0.86
223 02-02-0110 BALL - 4.0mm $0.86
224 02-02-0115 BALL - 3.8mm $0.86
225 02-02-0125 BALL - 3.6mm $0.86
226 02-02-0105 BALL - 3.4mm $0.86
227 43-44-0345 Gasket $0.97
420 31-40-0020 Gearcase $26.82
423 38-50-0042 Spindle $16.59
425 26-28-1865 Diaphragm $30.54
491 14-20-5378 Reverse module $26.87
800 05-80-0430 6MM LH SCREW $3.28
801 48-66-5185 1/2 in. Chuck and Key $28.76
1001 49-15-5300 SIDE HANDLE $11.75
