Milwaukee 5363-21 Electric Rotary Hammer Parts

Milwaukee 5363-21 Electric Rotary Hammer Parts Image

Milwaukee 5363-21 Parts
RTRY HMR 1 SDS COMPACT

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Milwaukee 5363-21
1 Inch Compact SDS R...
$294.99

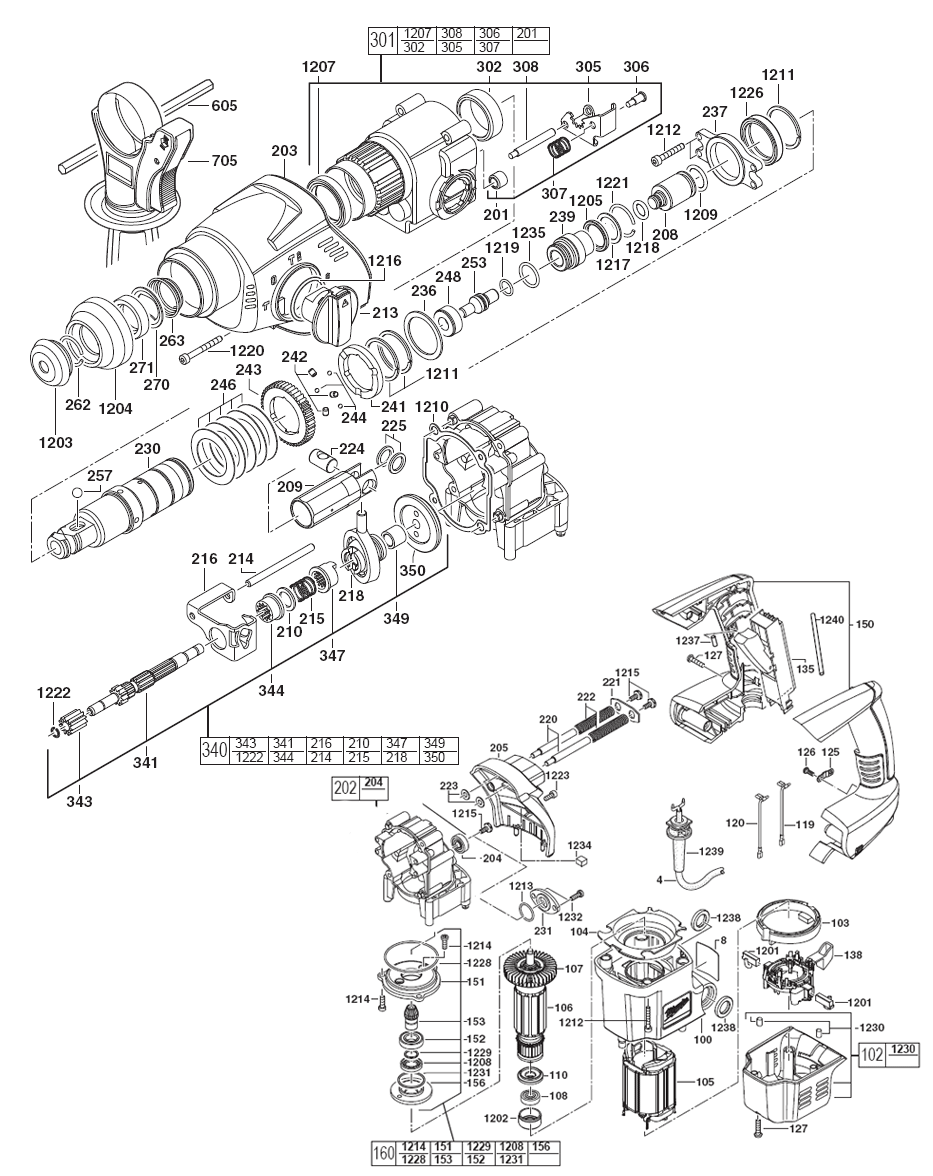

Tool Diagram    (Click image to Zoom in) View larger Image
Milwaukee 5363-21 Electric Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
201 02-50-2183 Needle Bearing $2.90
203 34-40-0186 Gear Box Housing Cover $10.71
208 45-56-0076 Ram $12.19
209 44-62-0055 Cylinder $9.55
210 45-88-1180 Disc $0.86
213 44-10-0670 Switch Handle $2.45
214 44-60-0756 Pin $1.08
215 40-50-0883 Spring $0.86
216 44-90-0500 Shift Ring $5.54
218 36-92-0583 Wobble Plate $21.81
224 44-60-0483 Wrist Pin $1.52
225 45-88-0283 Washer $0.86
230 32-75-0041 Spindle $93.35
236 45-88-0485 Washer $0.86
237 44-66-0085 Endplate Assembly $6.14
239 45-22-0705 Sleeve $13.57
241 42-70-0040 Clutch Disc $2.18
242 44-96-0183 Clutch Roller $0.86
243 32-75-1283 Spindle Gear $4.11
244 02-04-0683 Ball $1.03
246 40-50-0983 Belleville Spring (Five Required) $0.86
248 45-88-1770 Stop Washer $5.70
253 45-08-0480 Striker $6.91
257 02-02-0275 7 mm Ball $0.86
262 44-90-0375 Snap Ring - External $0.86
263 40-50-8045 Spring $1.74
270 42-36-1755 Support Plate $1.96
271 44-90-0830 Holding Ring $4.93
301 31-40-0055 Gear Box Assembly $61.35
302 02-50-0050 Needle Bearing $4.49
305 44-90-0835 Locking Plate $3.01
306 44-60-1105 Spring Guide Pin $3.01
307 40-50-0800 Pressure Spring $0.86
308 44-60-1110 Guide Pin $5.59
340 32-60-0025 Reduction Gear Assy $80.55
341 36-66-0185 Reduction Gear Shaft $24.84
343 32-60-0140 Gear $9.49
344 32-60-0145 Internal Gear $4.99
347 45-22-0610 Coupling Sleeve $5.87
349 45-36-1700 Spacer $1.19
350 32-05-0010 Bevel Gear $25.94
605 43-46-0172 DEPTH GAGE $3.12
705 14-46-0015 Side Handle Assembly $13.18
1200 14-46-0075 Maintenance Set $63.15
1203 42-52-0420 Rubber Sleeve $2.07
1204 42-96-0210 Sleeve $2.57
1205 34-40-1305 O-Ring $0.86
1207 34-40-0010 Seal Ring $5.98
1209 34-40-4466 O-Ring $1.30
1210 43-44-0875 Seal $1.14
1211 44-90-0350 Snap Ring - External $1.19
1212 05-74-0183 Screw $0.86
1216 34-40-1025 O-Ring $0.86
1217 42-76-0830 Thrust Collar $10.98
1218 34-40-4451 O-Ring $0.86
1219 34-40-0130 O-Ring $0.86
1220 05-74-0685 Socket Head Screw $0.86
1221 44-90-0183 Retaining Ring - Internal $0.86
1222 34-40-0430 Spring Ring $0.86
1226 44-90-0347 Damping Ring $3.01
1235 34-40-0445 O-Ring $0.86
4 22-64-1622 Cord Set $11.70
100 31-40-5363 Motor Housing $13.62
102 31-15-0060 Cover Assembly $4.66
103 22-22-0070 Brush Carrier $2.07
104 31-05-0095 Air Defl ector Ring $2.07
105 18-07-0015 Service Field $26.11
106 16-07-0015 Service Armature $54.05
107 22-84-0040 Fan $0.97
108 02-04-1801 BALL BEARING $5.59
110 45-88-9000 Insulating Disc $0.86
119 23-94-0155 Wire $1.03
120 23-94-0175 Wire $1.03
125 31-17-0240 Cord Clamp $0.86
126 05-78-0720 Screw $0.86
127 05-78-0715 Screw $0.86
135 23-66-0405 Switch $35.03
138 22-22-0075 Brush Carrier $26.11
150 14-38-0115 Handle Assembly $16.59
151 44-66-0540 Bearing End Plate $17.64
152 02-04-0090 Ball Bearing $10.32
153 32-60-0015 Pinion $16.76
156 42-92-0165 Bearing Cover $8.01
160 44-66-1146 Bearing End Plate Assembly $64.20
202 31-15-0105 Gear Box $81.15
204 02-04-0056 Ball Bearing $4.49
205 31-15-0760 Gearbox Cover $15.00
220 44-60-0205 Guide Pin $2.68
221 44-90-0070 Latch Plate $0.86
222 40-50-0505 Spring $0.86
223 45-88-0875 Washer $0.86
231 42-92-1520 Bearing Cover $1.36
1200 14-46-0075 Maintenance Set $63.15
1201 22-18-0010 Carbon Brush Set $14.06
1202 42-96-0205 Rubber Sleeve $0.86
1208 45-06-0095 Seal Ring $8.18
1213 34-40-0083 O-Ring $0.86
1214 05-74-0715 Socket Head Screw - Plast. $0.97
1215 05-74-0220 Screw $1.08
1223 05-74-0225 Screw $9.39
1228 34-40-0435 O-Ring $0.86
1229 45-88-1775 Spring Ring $0.86
1230 45-30-0055 Slug $1.14
1231 34-40-0440 O-Ring $0.86
1232 05-74-0460 Cap Screw $0.86
1234 43-84-0443 FELT $0.86
1237 45-30-0215 Vinyl Slug $1.36
1238 34-40-0063 O-RING - MOTOR HOUSING $0.86
1239 44-76-0075 Cord Protector $3.01
1240 45-30-0075 Rubber Slug $1.96
1001 49-08-5350 "Type ""P"" Grease (100 g)" $26.22
1002 49-08-4255 Type 'Q' Grease, 45gm (1.5 oz) Tube $7.85
