ToolpartsPro » Milwaukee Parts » Demolition Tools » Milwaukee 5337-21 Parts

Milwaukee 5337-21 Demolition Tools

Milwaukee 5337-21 Demolition Tools Image

Milwaukee 5337-21 Parts
DML HMR 25LB 14A 3/4 HEX

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Milwaukee 5337-21
3/4 Inch Hex Demolit...
$749.99
Tool Diagram    (Click image to Zoom in) View larger Image

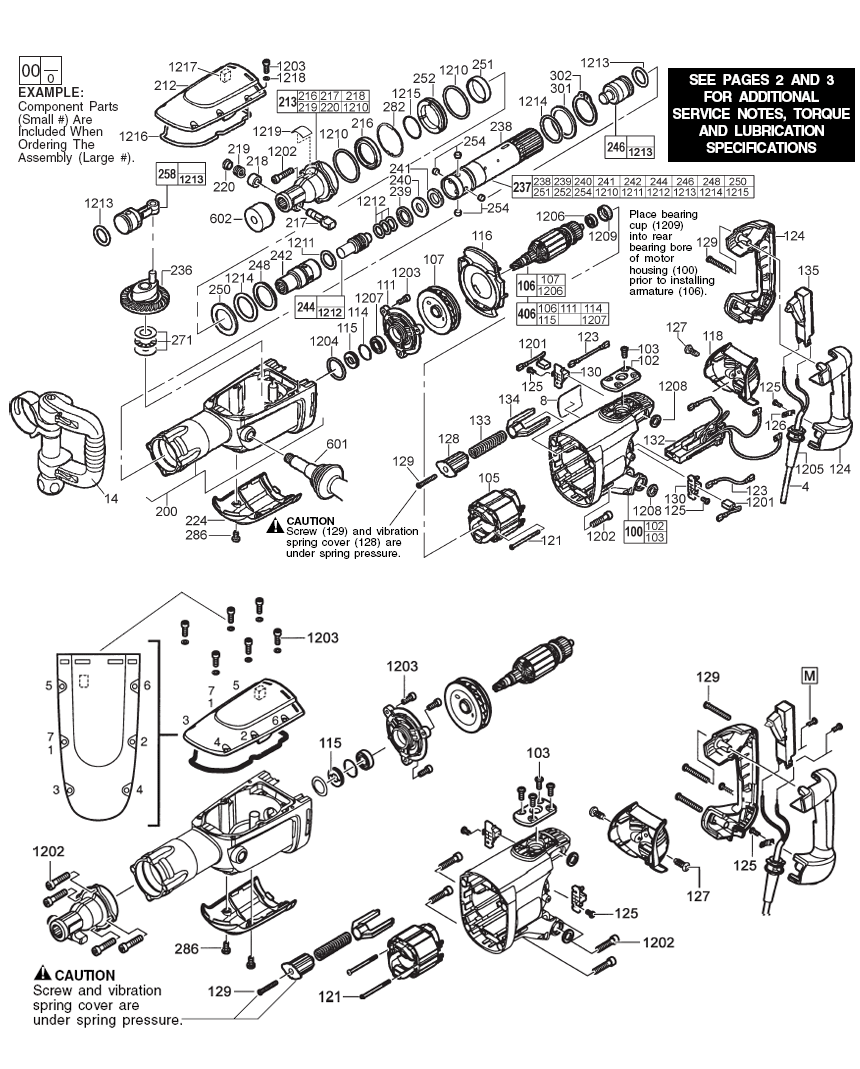

Milwaukee 5337-21 Demolition Tools Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
4 22-64-0022 CORD SET $18.90
14 43-62-0042 SPADE SIDE HANDLE $39.06
100 31-50-0033 MOTOR HOUSING $32.43
102 42-92-0106 SIDE HANDLE PLATE $12.03
103 05-78-0070 SCREW - SIDE HANDLE PLATE $0.86
105 18-11-0050 FIELD $38.76
106 16-10-0136 ARMATURE $142.79
107 22-84-0442 FAN $7.24
111 28-28-0118 BEARING END PLATE $21.93
114 44-90-0019 RETAINING RING $0.86
115 44-40-0042 SEAL NUT $4.60
116 42-14-0105 AIR DEFLECTION RING $4.00
118 31-15-0051 SERVICING LID $4.71
121 05-78-0071 SCREW - FIELD $0.86
123 23-94-0031 WIRE - RED $0.86
124 31-15-0052 D-HANDLE SET $24.68
125 05-78-0072 SCREW $0.86
126 31-17-0110 STRAIN RELIEF CLAMP $0.86
127 05-78-0073 SCREW - SERVICING LID $0.86
128 31-15-0053 COVER - VIBRATION SPRING $1.41
129 05-78-0074 SCREW $0.86
130 22-20-0027 BRUSH HOLDER $2.40
132 22-75-0080 DIAL SWITCH $42.12
133 40-50-0041 SPRING - VIBRATION $1.08
134 31-10-0130 VIBRATION LEVER $1.03
135 23-66-0031 SWITCH - LOCK ON $19.01
200 31-40-0032 GEAR BOX $90.20
212 31-15-0061 COVER - UPPER GEAR BOX $29.83
213 30-60-0030 NOSE PIECE ASSEMBLY $158.79
216 43-44-0062 SEAL RING $1.74
217 44-10-0040 LATCH BAR- NOSE PIECE $17.53
218 43-56-0072 SLEEVE - NOSE PIECE $3.39
219 40-50-0042 SPRING - NOSE PIECE $1.52
220 43-56-0073 LATCH - NOSE PIECE $5.04
224 31-15-0062 COVER - LOWER GEAR BOX $4.33
236 36-17-0061 CRANK WHEEL $98.55
237 38-50-0046 SPINDLE ASSEMBLY $265.25
238 38-50-0044 SPINDLE SLEEVE $120.24
239 45-88-0052 THRUST COLLAR $5.32
240 34-40-0061 BACK PRESSURE O-RING $1.69
241 45-88-0185 WASHER $14.56
242 44-82-0073 STRIKER GUIDE $32.84
244 45-56-2526 STRIKER $22.86
246 44-82-0074 RAM $20.16
248 45-88-0053 ATTACHMENT WASHER (.118 THICK) $1.80
250 45-88-0054 WASHER (.154 THICK) $3.34
251 44-96-0132 ROLLER RACE $11.09
252 44-90-0018 THRUST COLLAR $9.39
254 44-96-0133 ROLLER $1.08
258 44-62-0053 PISTON $13.79
271 02-80-0117 THRUST BEARING WITH WASHERS $4.00
282 44-90-0016 RETAINING RING $1.52
286 05-81-0703 SCREW - LOWER GEAR BOX COVER $0.86
301 45-88-0057 WASHER $1.69
302 44-90-0021 RETAINING RING $0.86
406 16-10-0135 ARMATURE ASSEMBLY $143.13
601 43-62-0043 AUXILIARY SIDE HANDLE $38.14
602 42-52-0057 DUST GUARD CAP $3.67
1201 22-16-0026 CARBON BRUSH SET PKG. (2) $16.98
1202 05-81-0701 SCREW M8 x 40 $0.86
1203 05-81-0702 SCREW M5 x 16 $0.86
1204 34-40-0062 O-RING - GEAR BOX $0.86
1205 44-76-0051 CORD PROTECTOR $0.86
1206 02-04-0061 BALL BEARING $4.60
1207 02-04-0062 BALL BEARING $6.31
1208 34-40-0063 O-RING - MOTOR HOUSING $0.86
1209 22-72-0200 BEARING CUP $0.86
1210 34-40-0064 O-RING $0.86
1211 34-40-0071 O-RING - STRIKER GUIDE $0.86
1212 34-40-0072 O-RING - STRIKER $0.86
1213 34-40-0073 O-RING $0.86
1214 34-40-0074 O-RING - SPINDLE SLEEVE $0.86
1215 44-90-0017 RETAINING RING $0.86
1216 43-44-0063 GASKET - GEAR BOX COVER $2.84
1217 43-84-0443 FELT $0.86
1218 45-88-0056 WASHER - GEAR BOX COVER $0.86
