GRINDER STRAIGHT 6 15A

Download Schematic

Time to buy a new tool?

Milwaukee 5243

6 Inch 15A Straight ...

$337.99

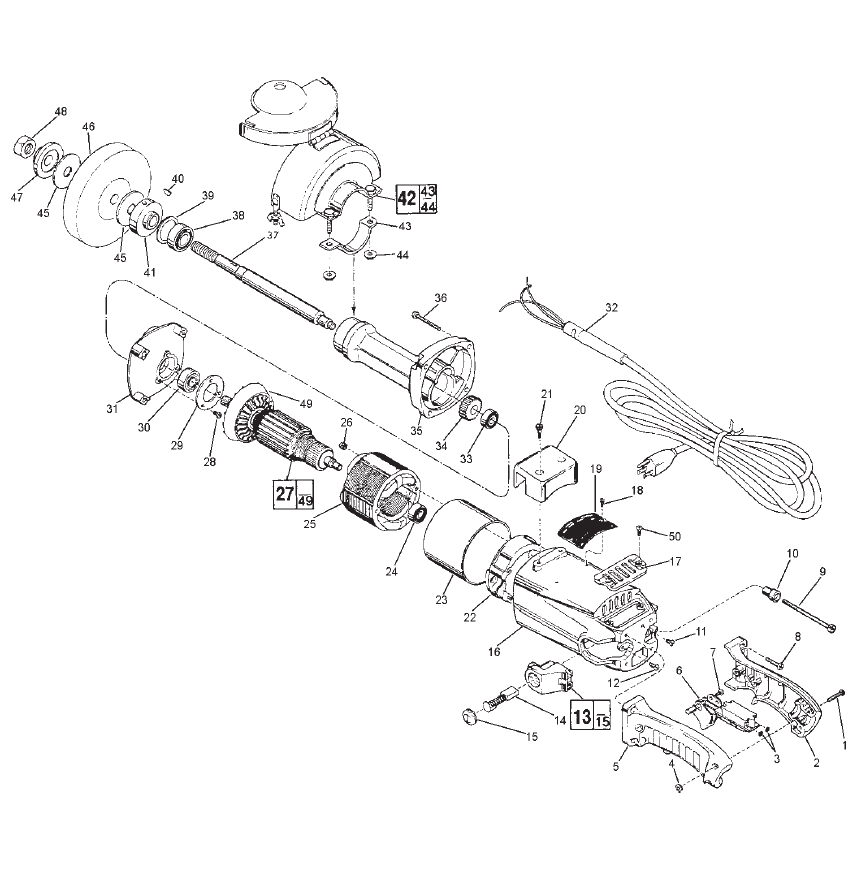

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
3	06-97-1800	Switch Lockwasher - No. 6 Internal	$1.52
4	06-55-1000	10-24 Hex Nut	$0.86
7	06-95-0215	"8-18 x 1/2"" Pan Hd. Thread Form Screw"	$0.86
10	31-86-0160	lnsulatin Bushin	$1.03
11	06-95-5200	6-32 x 5/16’ Slot Hex Hd. Screw	$0.86
13	22-22-0401	Brush Holder Assembly	$5.54
15	23-44-0170	Brush Retaining Cap	$1.30
16	28-50-6351	Motor Housing	$31.46
17	31-15-0310	Cover Plate	$1.19
19	12-99-0241	Nameplate Blank	$2.02
20	31-70-0135	Tool Rest	$3.83
22	31-55-0110	Coil Shield	$2.62
23	23-16-0950	Insulating Sleeve	$1.52
24	02-04-0911	Ball Bearing	$5.76
25	18-70-0100	120 Volt Field	$70.80
26	06-57-3005	10-32 Locking Hex Nut	$2.40
27	16-70-0155	120 Volt Armature	$94.00
29	44-86-0320	Ball Bearing Retainer	$7.74
30	02-04-1516	Ball Bearing	$5.32
31	28-28-0392	Diaphragm Assy. (Incl. 45-30-0120 BB Retaining S...	$29.47
32	22-64-0076	Cord Set	$27.89
33	02-04-0910	Ball Bearing	$3.56
34	32-75-3160	Spindle Gear	$14.01
35	28-50-0400	Spindle Housing	$24.18
37	38-50-5280	Spindle	$30.65
39	34-80-2700	Internal Retaining Ring	$1.03
40	06-42-1200	Woodruff Key	$0.86
41	43-34-0320	Inner Wheel Flange	$13.29
42	49-12-0160	"6"" Wheel Guard"	$56.55
44	06-57-5040	5/16-18 Lock Nut	$0.86
45	45-88-0260	Flange Rubber Washer	$0.92
47	43-34-0330	Outer Wheel Flange	$8.34
48	06-55-3250	5/8-11 Hex Nut	$0.97
49	22-84-0690	Fan	$5.43
100	49-96-7230	Spanner Wrench	$5.32
101	49-96-4072	"1-1/16"" Open End Wrench"	$6.36
103	23-44-0140	Brush Retaining Cap-Fine Thread	$1.58
