Milwaukee 4125 Coring & Drill Press Stand Parts

Milwaukee 4125 Coring & Drill Press Stand Parts Image

Milwaukee 4125 Parts

STAND SM BASE

Download Schematic

Time to buy a new tool?

Milwaukee 4125

Diamond Coring Small...

$803.99

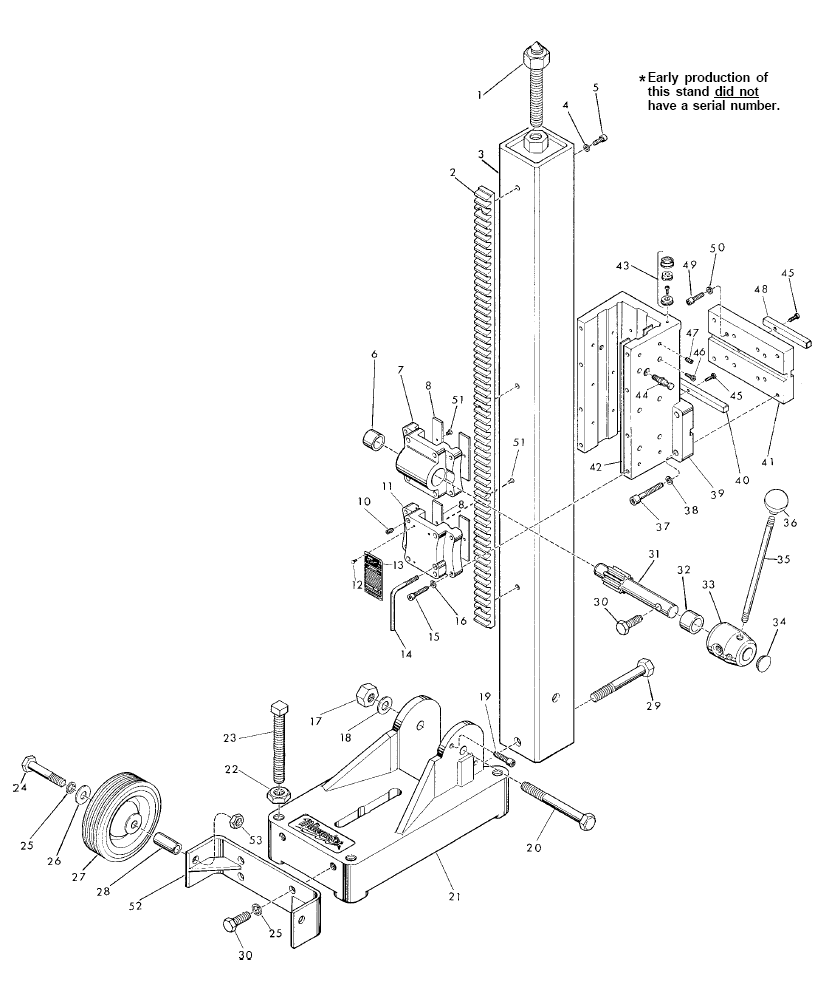

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	45-04-0535	Jack Screw Assembly	$26.11
2	44-80-0170	Rack	$77.55
3	42-78-0090	Column Assembly	$264.09
4	06-97-4110	"5/16"" Split Ring Lock Washer"	$0.86
5	06-75-3925	"5/16-18 x 5/8"" Socket Hd. Cap Screw"	$1.19
6	42-24-0210	Bronze Bearing	$3.28
7	28-50-7710	Pinion Housing	$50.95
8	43-48-0110	Gib	$10.21
10	06-83-2660	"1/4-20 x 3/8"" Hdls. Skt. Hd. Set Scr."	$0.86
11	28-20-1210	Cradle Cover	$41.00

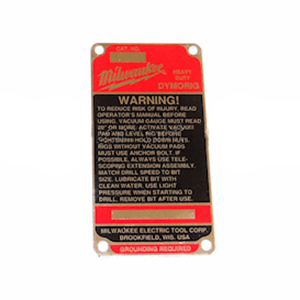

13	12-99-0171	Nameplate Blank	$2.02
14	44-20-0200	Cradle Lock	$5.76
15	06-75-3100	"1/4-20 x 1.00"" Socket Head Screw"	$0.86
16	06-97-4050	"1/4"" Split Ring Lock Washer"	$0.86
17	06-55-3350	5/8-18 Hex Nut	$7.24
18	45-88-7530	Washer	$1.52
19	06-75-4675	"3/8-16 x 1"" Socket Head Screw"	$0.86
20	06-75-1100	"5/8-18 x 5"" Hex Hd. Cap Screw"	$4.82
21	28-06-0960	Small Base	$254.24
22	06-55-3250	5/8-11 Hex Nut	$0.97
23	06-83-5150	"5/8-11 x 4-1/2"" Level Screw"	$1.80
24	06-75-0970	"1/2-13 x 2-3/4"" Hex Hd. Screw"	$1.24
25	06-97-4200	"1/2"" Split Ring Lockwasher"	$0.86
26	45-88-7460	Washer	$1.46
27	45-94-0200	Wheel	$17.36
28	42-40-0550	Wheel Bushing	$10.87
29	06-75-0999	"5/8-11 x 4"" Hex Hd. Bolt"	$4.55
30	06-75-0800	"1/2-13 x 1-1/4"" Hex Hd. Bolt"	$0.86
31	36-66-3020	Pinion Shaft	$28.10
32	42-24-0215	Bronze Bearing	$5.26
33	43-78-0300	Handle Hub	$37.33
34	42-42-0095	Hole Plug	$0.86
35	43-62-0050	Handle	$3.39
36	43-98-0050	Plastic Knob	$2.35
37	06-75-4750	"3/8-16 x 1-3/4"" Socket Hd. Screw"	$1.03
39	28-23-3220	Cradle	$203.32
40	43-96-0110	Key	$5.98
41	44-34-0110	Motor Mount	$48.90
42	43-48-0120	Gib	$19.45
43	44-08-0060	Circular Level	$23.91
44	45-58-0280	Switch Box Mounting Stud	$8.56
45	06-81-5825	"6-32 x 1/2"" Fil. Hd. Sems"	$0.92
46	06-81-6102	"8-32 x 7/16"" Fil. Hd. Sems ("	$0.86
47	06-83-2660	"1/4-20 x 3/8"" Hdls. Skt. Hd. Set Scr."	$0.86
48	43-96-0100	Key	$7.46
49	06-75-3090	"1/4-20 x 7/8"" Socket Hd. Screw"	$0.86
50	06-97-4050	"1/4"" Split Ring Lock Washer"	$0.86
51	06-82-0970	"8-32 x 3/8"" Flat Hd. T-15"	$0.86
52	42-36-1210	Wheel Bracket Assembly	$38.19
53	06-55-2850	1/2-l 3 Hex Nut	$0.86
100	49-96-0060	"1/8"" Socket Wrench"	$0.86
101	49-96-0080	"3/16"" Hex Key (Not Shown)"	$1.03
102	49-96-0120	"5/16"" Allen Wrench (Not Shown)"	$2.95
103	12-98-7210	Warning Plate	$1.63
