Milwaukee 4096 Coring Drill Motor Parts

Milwaukee 4096 Parts

DRILL DMD 450/900 20A CL

Download Schematic

Time to buy a new tool?

Milwaukee 4096

Diamond Coring Motor...

$718.99

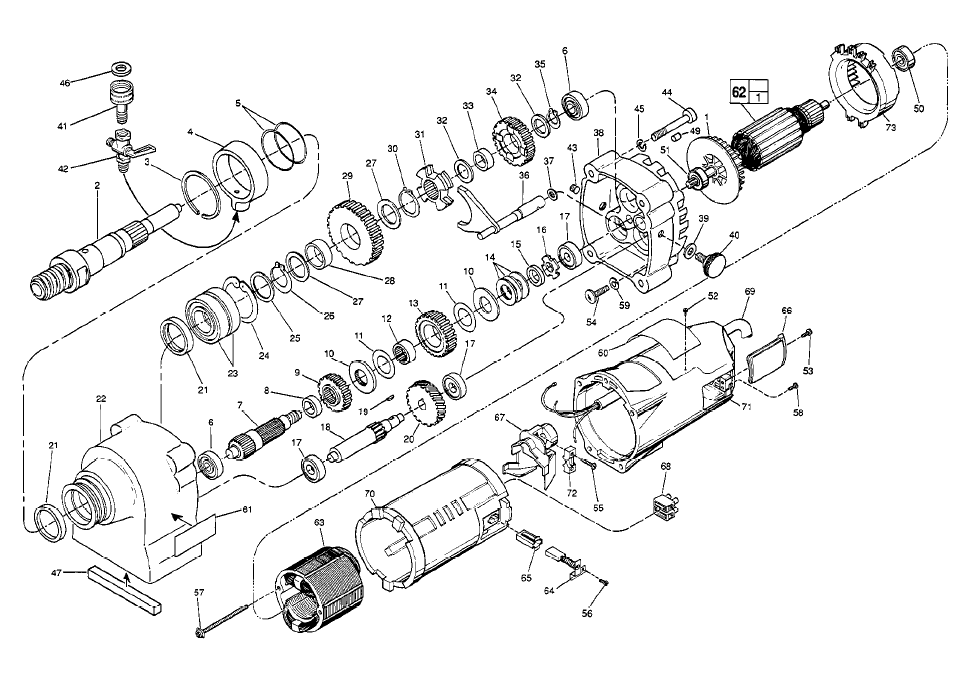

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	22-84-0790	Fan	$4.38
21	45-06-0580	Seal	$13.90
29	32-75-3380	Final Gear-Low	$243.86
41	42-04-0600	Water Hose Adapter	$9.94
42	45-80-0060	Shut Off Valve	$23.30
46	45-88-0800	Water Hose Washer (For Fig. No. 1)	$0.86
50	02-04-1041	Ball Bearing	$4.05
51	02-04-1229	Ball Bearing	$4.71
52	06-72-1720	Nameplate Rivet	$0.86
53	06-82-5316	"8-32 x 1/2"" Pan Hd. Slt. Taptite T-20"	$0.86
54	06-82-5514	"1/4-20 x 1.50"" Slt. Pan Hd. Tapt. T-30"	$1.03
55	06-82-7326	"8-16 x 1"" Plastite T-20 Screw"	$0.86
56	06-82-8835	"8-32 x 5/16"" Pan Hd. Sem. T-20"	$0.86
57	06-82-9152	"10-24 x 2-3/4"" Pan Hd. Sem. T-25"	$1.36
58	06-95-5200	6-32 x 5/16’ Slot Hex Hd. Screw	$0.86
59	06-97-4000	l/4” Split Ring Lcckwasher	$0.86
60	12-99-1875	Service Nameplate	$5.54
62	16-70-0320	120 V Armature	$96.40
63	18-70-0290	120 V Field	$62.80
65	22-20-0680	Brush Tube	$1.24
66	22-32-0350	Brush Cover	$1.80
67	22-38-0140	Wire Trap	$1.52
68	22-56-0470	Terminal Block	$2.07
70	23-16-1410	Motor Insulator	$40.29
71	28-50-6363	Motor Housing	$72.20
72	31-17-0200	Cord Clamp	$1.24
73	42-14-0291	Baffl e	$3.23
101	49-96-0085	3/16” Hex Ke	$1.08
103	06-75-3090	"1/4-20 x 7/8"" Socket Hd. Screw"	$0.86
