Milwaukee 0756-20 Cordless Rotary Hammer Parts

Milwaukee 0756-20 Cordless Rotary Hammer Parts Image

Milwaukee 0756-20 Parts
"M28™ 1"" SDS ROTARY HAMMER "

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Milwaukee 0756-20
1 Inch SDS 28V Rota...
$429.99
Page-1
Page-2

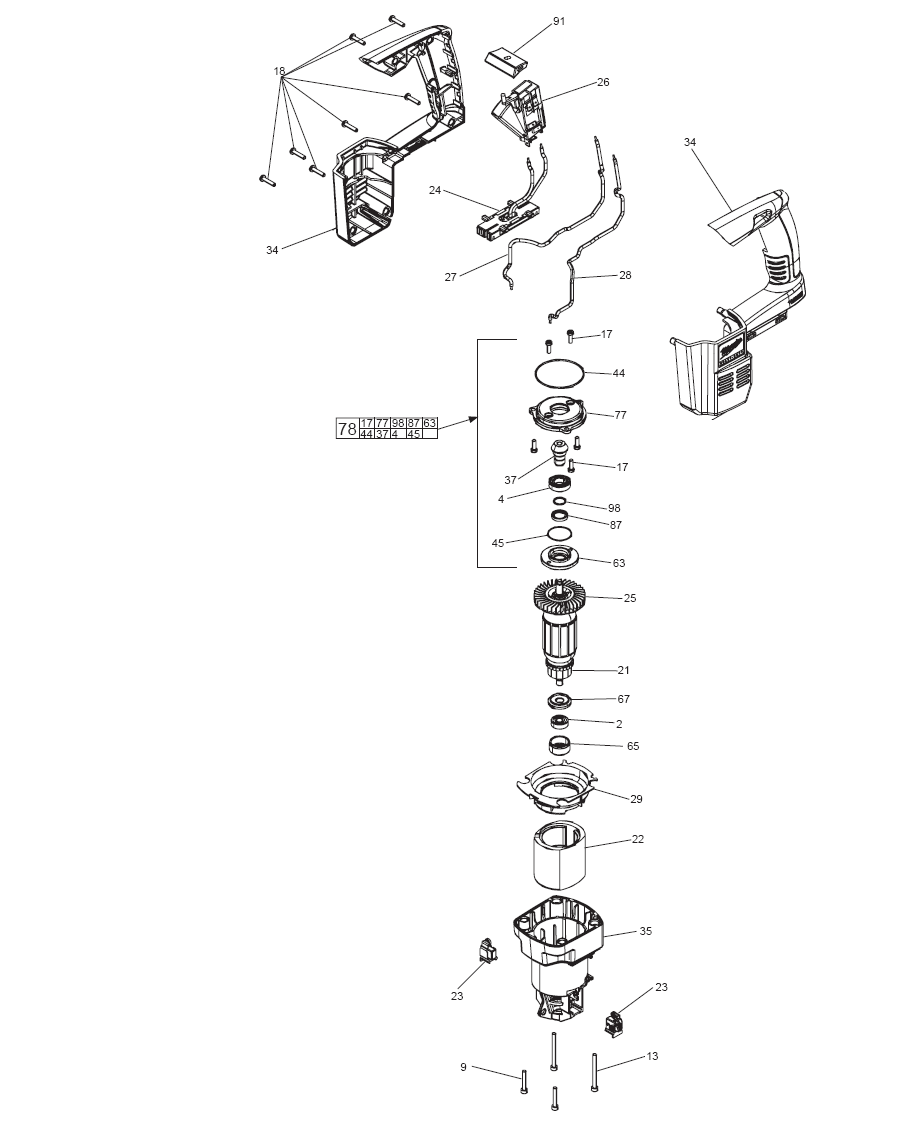

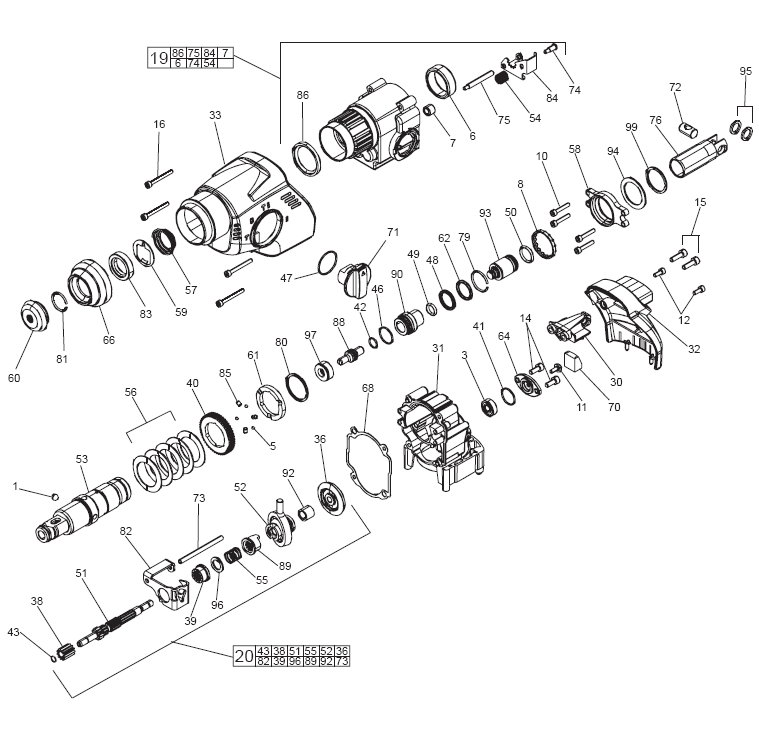

Tool Diagram    (Click image to Zoom in) View larger Image
Milwaukee 0756-20 Cordless Rotary Hammer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 02-02-0275 7 mm Ball $0.86
3 02-04-0056 Ball Bearing $4.49
5 02-04-0683 Ball $1.03
6 02-50-0050 Needle Bearing $4.49
7 02-50-2183 Needle Bearing $2.90
8 02-80-0210 Spindle Bearing $2.45
10 05-74-0215 Screw $49.93
11 05-74-0220 Screw $1.08

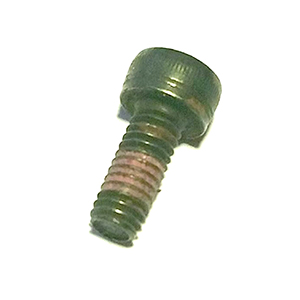

12 05-74-0225 Screw $9.39
14 05-74-0460 Cap Screw $0.86
16 05-74-0685 Socket Head Screw $0.86
19 14-50-0100 Gear Box Assembly $61.65
20 14-73-0305 Wobble Shaft Assembly $105.93
30 31-10-0150 Handle Mount $2.35
31 31-15-0756 Crankcase $31.97
32 31-15-0760 Gearbox Cover $15.00
33 31-40-0185 Gear Box Housing Cover $10.38
36 32-05-0500 Bevel Gear $31.21
38 32-60-0140 Gear $9.49
39 32-60-0145 Internal Gear $4.99
40 32-75-0060 Spindle Gear $3.94
41 34-40-0083 O-Ring $0.86
42 34-40-0130 O-Ring $0.86
43 34-40-0430 Spring Ring $0.86
46 34-40-0445 O-Ring $0.86
47 34-40-1025 O-Ring $0.86
48 34-40-1305 O-Ring $0.86
49 34-40-4451 O-Ring $0.86
50 34-40-4466 O-Ring $1.30
51 36-66-0185 Reduction Gear Shaft $24.84
52 36-92-0583 Wobble Plate $21.81
53 38-50-0250 Spindle $150.07
54 40-50-0800 Pressure Spring $0.86
55 40-50-0883 Spring $0.86
56 40-50-0983 Belleville Spring (Five Required) $0.86
57 40-50-8045 Spring $1.74
58 42-36-0185 Mount Bracket $19.18
59 42-36-1755 Support Plate $1.96
60 42-52-0420 Rubber Sleeve $2.07
61 42-70-0040 Clutch Disc $2.18
62 42-76-0830 Thrust Collar $10.98
64 42-92-1520 Bearing Cover $1.36
66 42-96-0210 Sleeve $2.57
68 43-44-0875 Seal $1.14
70 43-84-0443 FELT $0.86
71 44-10-0670 Switch Handle $2.45
72 44-60-0483 Wrist Pin $1.52
73 44-60-0756 Pin $1.08
74 44-60-1105 Spring Guide Pin $3.01
75 44-60-1110 Guide Pin $5.59
76 44-62-0186 Cylinder $12.58
79 44-90-0183 Retaining Ring - Internal $0.86
80 44-90-0350 Snap Ring - External $1.19
81 44-90-0375 Snap Ring - External $0.86
82 44-90-0500 Shift Ring $5.54
83 44-90-0830 Holding Ring $4.93
84 44-90-0832 Locking Plate $3.89
85 44-96-0183 Clutch Roller $0.86
86 45-06-0090 Seal Ring $6.20
88 45-08-0480 Striker $6.91
89 45-22-0610 Coupling Sleeve $5.87
90 45-22-0705 Sleeve $13.57
92 45-36-1700 Spacer $1.19
93 45-56-0076 Ram $12.19
94 45-88-0176 Washer $0.97
95 45-88-0283 Washer $0.86
96 45-88-1180 Disc $0.86
97 45-88-1770 Stop Washer $5.70
99 45-88-1780 Spring Ring $0.86
2 02-04-0056 Ball Bearing $4.49
3 02-04-0056 Ball Bearing $4.49
4 02-04-0090 Ball Bearing $10.32
9 05-74-0183 Screw $0.86
11 05-74-0220 Screw $1.08
12 05-74-0225 Screw $9.39

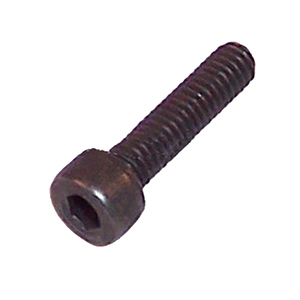

13 05-74-0230 Screw $0.92
14 05-74-0460 Cap Screw $0.86
17 05-74-0715 Socket Head Screw - Plast. $0.97
18 05-78-0715 Screw $0.86
21 16-07-0210 Armature $109.47
22 18-01-0756 Field $42.53

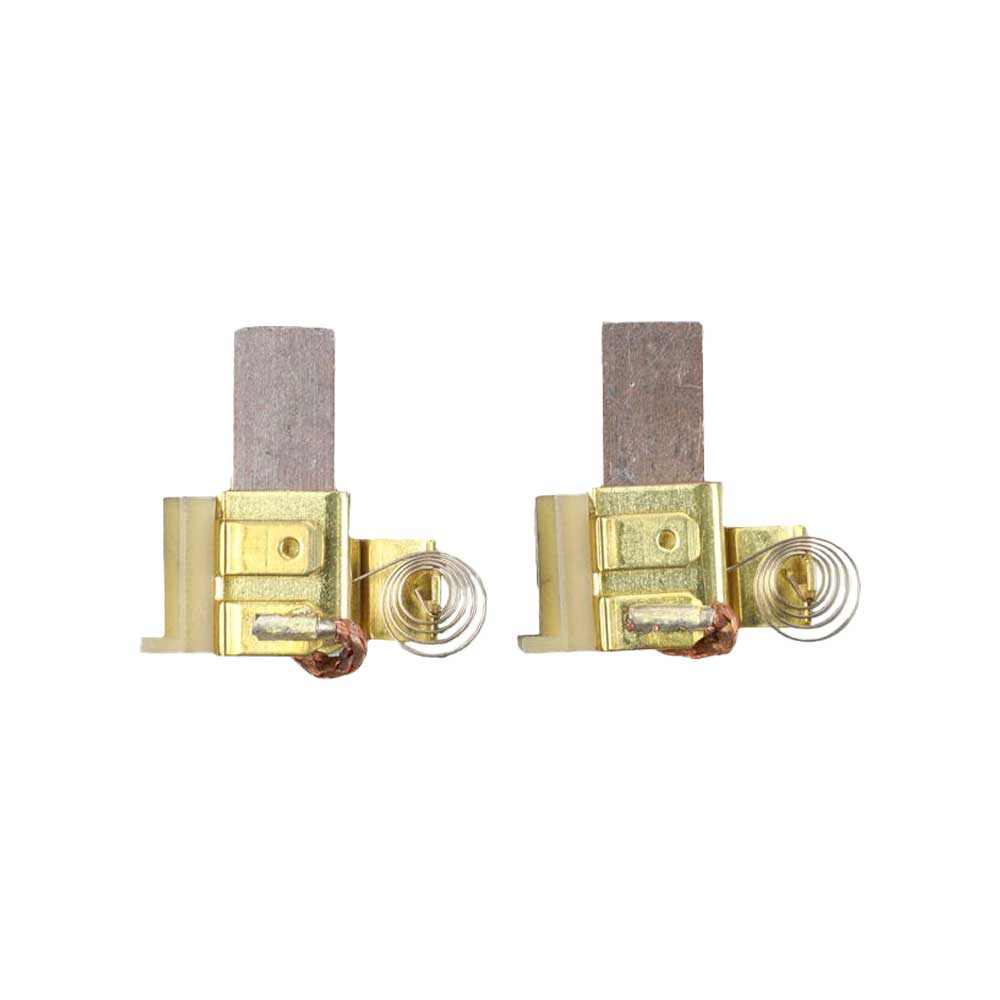

23 22-18-0690 Carbon Brush Set $23.08
24 22-56-0756 Connector Block Assembly $11.04
25 22-84-0940 FAN $0.86
26 23-66-0400 Switch Board $50.25
27 23-94-0410 Wire $2.29
28 23-94-0415 Wire $2.29
29 31-05-0130 Air Defl ector Ring $2.90
30 31-10-0150 Handle Mount $2.35
32 31-15-0760 Gearbox Cover $15.00
34 31-44-0195 Handle Assembly $27.59
35 31-50-0756 Motor Housing $115.29
37 32-60-0105 Pinion $22.91
41 34-40-0083 O-Ring $0.86
44 34-40-0435 O-Ring $0.86
45 34-40-0440 O-Ring $0.86
63 42-92-0165 Bearing Cover $8.01
64 42-92-1520 Bearing Cover $1.36
65 42-96-0205 Rubber Sleeve $0.86
67 43-06-0170 Commutator Insulator $4.88
70 43-84-0443 FELT $0.86
77 44-66-0540 Bearing End Plate $17.64
78 44-66-1140 Bearing End Plate Assembly $71.20
87 45-06-0095 Seal Ring $8.18
91 45-24-0225 Forward/Reverse Lever $1.58
98 45-88-1775 Spring Ring $0.86
100 14-46-0015 Side Handle Assembly $13.18
101 43-46-0172 DEPTH GAGE $3.12
102 14-46-0756 Service Kit (Not Shown) $99.50
