Milwaukee 0730-20 Cordless Saw Parts

Milwaukee 0730-20 Cordless Saw Parts Image

Milwaukee 0730-20 Parts

M28™ CIRC SAW

Download Schematic

Time to buy a new tool?

Milwaukee 0730-20

6 1/2 Inch V28 Circu...

$164.99

Page-1

Page-2

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price

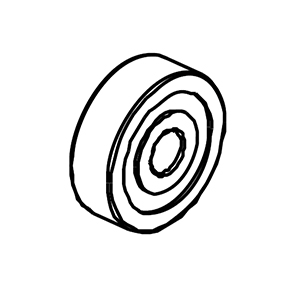

1	02-04-1212	Ball Bearing	$3.45
3	02-50-1640	Needle Bearing	$2.18
4	06-75-1010	Left Hand Blade Screw	$0.86
5	06-75-5860	"1/4-20 x 3/4"" Hex Hd. Screw"	$0.86
6	06-82-5285	"6-32 x 1/2"" Pan Hd. Tapt. T-15 Screw"	$0.86
7	06-82-5314	10-24 x .5 Pan Hd. Tapt. T-25	$0.86
8	06-82-7470	Screw	$0.86
9	06-82-7475	6 x 7/8” Pan Hd. Plastite T-15 Screw	$0.86
11	22-74-0510	Diode Assembly	$1.36
13	14-74-0310	Shoe Assembly	$37.53
14	16-01-2125	Armature	$74.50
15	18-01-2000	Service Field	$25.17
16	22-18-1240	Brush Assembly - Red	$4.60
17	22-18-1245	Brush Assembly - Black	$4.49
18	22-20-0425	Brush Tube	$0.86
19	22-32-0420	Brush Spring Clip	$0.86
19a	40-50-8745	Brush Spring	$0.86
20	22-56-0975	Connector Block Assembly	$4.60
21	23-66-1005	Service Switch	$14.89
22	23-94-4290	Leadwire Assembly - Red	$1.08
23	23-94-4295	Leadwire Assembly - Black	$0.97
24	28-14-0746	Gearcase	$25.50
25	28-20-1160	Upper Guard Cover	$11.58
26	28-41-0955	Lower Guard	$13.84
27	31-05-0350	Baffl e	$1.41
28	31-15-0601	Gearcase Cover Assembly	$7.19
29	31-44-2040	Right Handle Halve	$16.76
30	31-44-2045	Left Handle Halve	$23.30
31	32-75-1310	Spindle Gear	$20.28
32	34-40-4480	O-Ring	$0.86
33	34-60-0860	External Retaining Ring	$0.86
34	34-60-0920	External Retaining Ring	$0.86
35	38-50-1160	Spindle	$16.26
36	40-50-0045	Guard Spring	$1.41
37	40-50-0350	Switch Lock-Out Spring	$0.86
38	40-50-8040	Bevel Detent Spring	$0.86
39	42-38-0222	Rubber Bumper	$0.92
40	42-42-1020	Switch Lock-Out	$1.46
41	42-42-1030	Spindle Lock Button	$1.19
42	43-34-0790	Inner Flange	$1.24
43	43-34-0795	Outer Flange	$1.03
44	44-10-0420	Guard Lever	$1.14
45	44-10-0430	Depth Lever	$1.14
46	44-20-0650	Spindle Lock	$0.92
48	44-60-0740	Pivot Pin	$0.86
49	44-66-0560	Retaining Plate	$2.18
50	45-04-0485	Bumper Screw	$0.86
51	45-06-0720	Felt Seal	$0.86
52	45-08-0395	Depth Shaft	$3.89
53	45-88-1515	Washer	$0.86
54	45-88-5615	Wave Spring Washer	$0.86
55	49-96-0080	"3/16"" Hex Key (Not Shown)"	$1.03
56	06-10-0660	"1/4-20 x 1/2"" Short Neck Carriage Bolt"	$0.86
57	45-88-1560	Washer	$0.86
58	43-98-0730	Bevel Adjustment Knob	$1.63
59	43-98-0720	Rip Fence Knob	$1.41
60	40-50-0650	Spring	$0.86
61	06-82-9605	"10-32 x 3/8"" CSK Machine T-25 Screw"	$1.46
62	06-83-1600	"10-32 x 3/8"" Set Screw"	$0.86
63	14-46-2575	Gear Service Assembly	$25.28
