Milwaukee 0234-6 Electric Drill & Driver Parts

Milwaukee 0234-6 Electric Drill & Driver Parts Image

Milwaukee 0234-6 Parts
DRILL 1/2 850 MAGNUM

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Milwaukee 0234-6
1/2 Inch Magnum Dril...
$139.00
Tool Diagram    (Click image to Zoom in) View larger Image

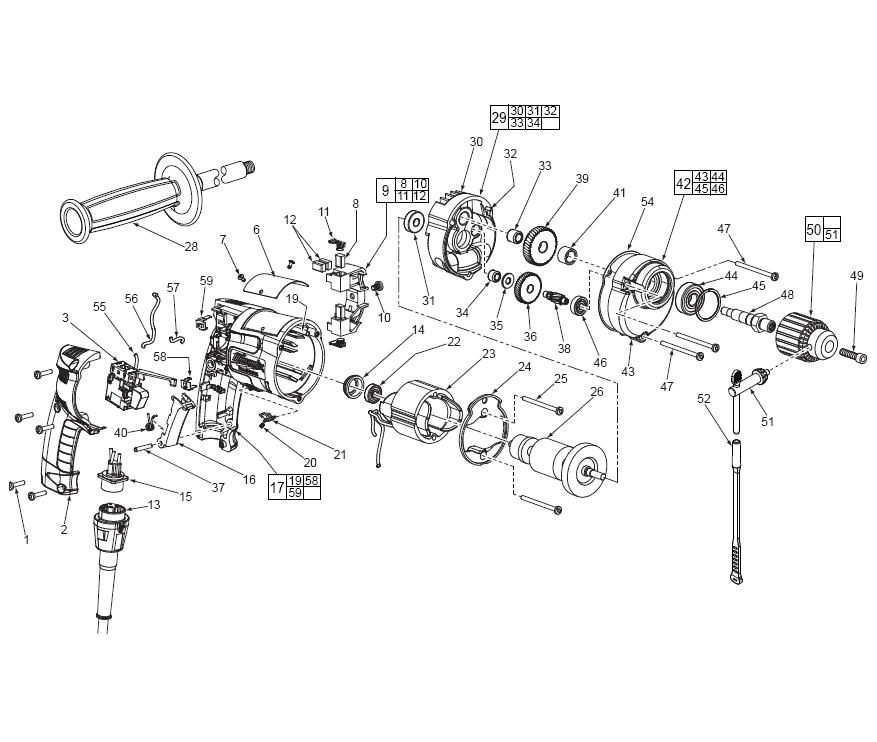

Milwaukee 0234-6 Electric Drill & Driver Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 06-82-7266 7-118 x 11116” Pan Hd. Plastite T-20 $0.86
2 31-15-0405 Handle Cover $2.79
3 23-66-1705 Trigger Speed Control Reversing Switch $29.12
6 12-99-0077 Nameplate Blank $2.51
7 06-72-1720 Nameplate Rivet $0.86
8 22-16-0295 Carbon Brush $2.29
9 22-22-0352 Brush Holder Assembly $6.08
10 23-44-0200 Brush Holder Screw $0.86
11 22-20-0345 Brush Spring Assembly $1.96
12 22-16-0295 Carbon Brush $2.29
14 22-72-0100 Beating Cup $0.86
15 22-56-0845 Pin Housing Assembly $4.38
16 45-72-0085 Trigger $0.86
17 14-38-0541 Motor Housing Assembly $7.35
19 44-60-1290 Grounding Pin $0.86
20 40-50-0085 Lock Button Spring $0.86
21 42-42-0460 Lock Button $0.86
22 02-04-0645 Ball Bearing $3.28
23 18-11-0076 120 Volt Field $17.97
24 42-14-0393 Baffl e $0.92
25 06-82-7398 "7-18 x 2-1/16"" Pan Hd. Plastite T-20" $0.86
26 16-10-0801 120 V. Armature Assembly $31.16
28 43-62-0886 Side Handle Assembly $4.71
29 14-13-0499 Diaphragm Assembly $17.09
31 02-04-0851 Ball Bearing $3.50
32 06-65-0880 Pin $1.08
33 02-50-2435 Needle Bearing $3.12
34 02-50-1620 Needle Bearing $2.24
35 45-88-7721 Heat Treated Washer $0.86
36 32-40-1816 Intermediate Gear $16.04
37 06-65-0105 4 x 22 Pin $0.86
38 36-66-4261 Intermediate Pinion $16.54
39 32-75-2911 Spindle Gear $11.64
40 40-50-0525 Torsion Spring $0.86
41 45-36-1100 Spacer $0.86
42 14-30-0337 Gearcase Assembly $16.59
44 02-04-1229 Ball Bearing $4.71
45 34-80-2300 Retaining Ring $0.86
46 02-04-0640 Ball Bearing $3.94
47 06-82-7411 7-18 x 2-3/16” Pan Hd.Plastite T-20 $0.86
48 38-50-5251 Spindle - Double Reduction $18.68
49 06-75-3150 1/4-20 x 1 LH Socket Hd. Screw $0.86
50 48-66-1360 l/2” Chuck (Includes Fig. 47) $66.55
54 43-44-0913 Gasket $0.86
55 23-94-6248 Leadwire Assembly, Blue $0.86
56 23-94-6336 Leadwire Assembly, Black $0.86
57 23-94-6405 Leadwire Assembly, White $0.86
58 23-74-1030 Terminal, Lower $1.41
59 23-74-1040 Terminal, Upper $0.86
