Makita UM401D Trimmer Parts

Makita UM401D Trimmer Parts Image

Makita UM401D Parts

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Visit our website
http://www.ToolOrbit.Com
Page-1
Page-2
Tool Diagram    (Click image to Zoom in) View larger Image

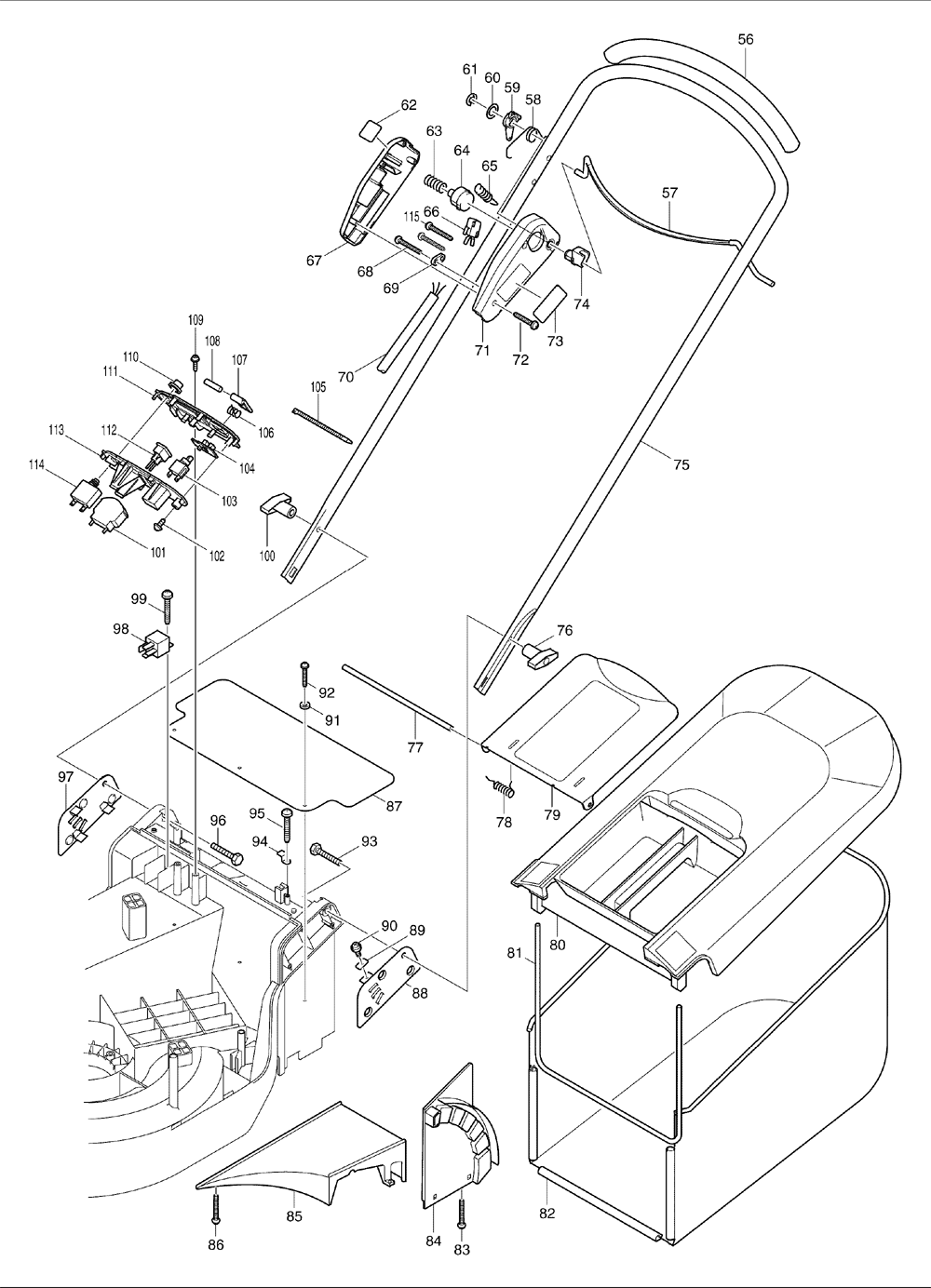

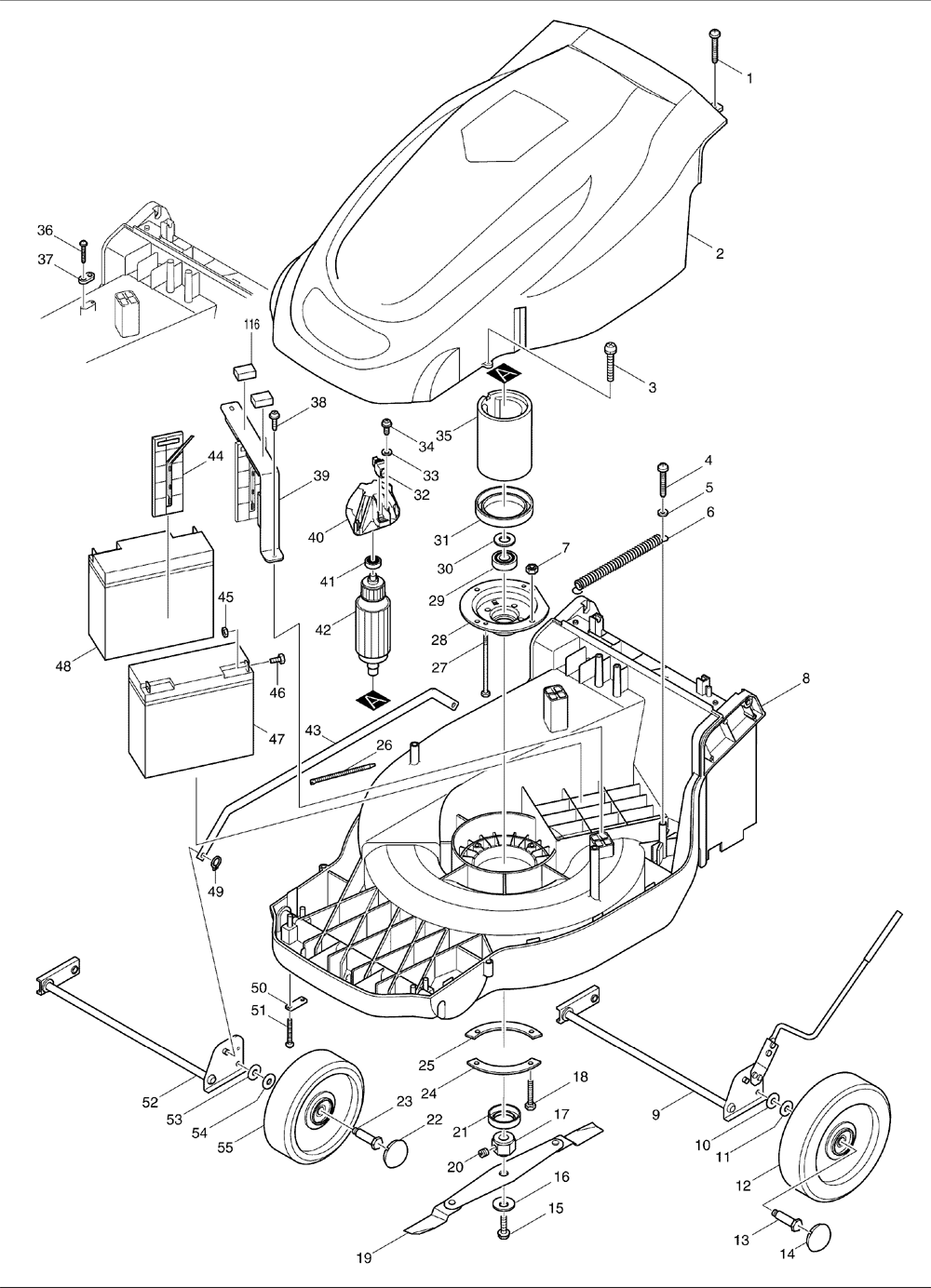

Makita UM401D Trimmer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
2 150695-0 COWLING CPL, UM401DW $98.85
4 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
5 267071-2 FLAT WASHER 4, UM401DW $0.90
6 231811-4 TENSION SPRING 12, UM401DW $8.45
7 252014-7 HEX LOCK NUT M6-10, LS1040 $4.16
8 416208-0 DECK, UM401DW $77.20
9 163384-8 REAR SHAFT, UM401DW $35.29
10 267052-6 F. WASHER 10, UH401DW $1.85
11 267052-6 F. WASHER 10, UH401DW $1.85
12 162192-4 "8"" WHEEL, UM401DW" $16.70
13 265450-8 BOLT 3/8-16UNC, UM401DW $5.15
14 416258-5 WHEEL CAP, UM401DW $1.41
15 251690-4 H.F.H. BOLT M8X30, 2040 $2.40
16 232176-7 CONED DISC SPRING 14, UM401DW $5.15
17 331517-5 BLADE HOLDER, UM401DW $13.40
18 921362-2 HEX BOLT M6X40, UM401DW $1.34
19 729015-5 SWING ARM BLADE 406 UM401DW $29.65
20 266162-6 H.S.H. SCREW M8X8, UM401DW $3.50
21 344550-8 DUST COVER, UM401DW $6.80
22 416258-5 WHEEL CAP, UM401DW $1.41
23 265450-8 BOLT 3/8-16UNC, UM401DW $5.15
24 344561-3 FIX PLATE, UM401DW $5.15
25 344561-3 FIX PLATE, UM401DW $5.15
26 687092-2 BAND, UM401DW $1.48
27 265448-5 HEX BOLT M5X115, UM401DW $3.50
28 344460-9 HOUSING W/O BEARING, UM401DW $21.54
29 211256-2 B. BEARING 6203LLB, GA7001L $10.98
30 267038-0 F. WASHER 17, 9627, UM401DW $1.85
31 416259-3 PLATE, UM401DW $5.15
32 191965-8 CARBON BRUSH CB-423, UM401DW $18.35
33 253874-0 F. WASHER 4, LS1016L $1.34
34 266020-6 TAPPING SCREW 4x12, BO4556 $1.19
35 632781-4 YOKE UNIT, UM401DW $66.00
36 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
37 687053-2 STRAIN RELIEF, UM401DW $1.08
38 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B $1.96
39 150680-3 BATTERY HOLDER CPL., UM401DW $13.40
40 416202-2 END BELL, UM401DW $8.45
41 211061-7 B. BEARING 6000LLB, 6222DWE $10.98
42 125069-4 MOTOR ASSY., UM401DW $204.77
43 344462-5 CONNECTING ROD, UM401DW $8.45
44 632784-8 THERMAL CUT OFF CPL., UM401DW $10.10
45 652111-3 HEX NUT M5, UM401DW $0.79
46 652035-3 HEX BOLT M5X12, UM401DW $1.96
49 961004-6 RETAINING RING S-8, DA391D $0.53
50 341462-6 PLATE, JR3000V $0.97
51 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
52 163385-6 FRONT SHAFT, UM401DW $26.49
53 267052-6 F. WASHER 10, UH401DW $1.85
54 267052-6 F. WASHER 10, UH401DW $1.85
55 162191-6 "7"" WHEEL, UM401DW" $16.70
56 421580-7 HANDLE CUSHION, UM401DW $18.24
57 331499-1 SWITCH LEVER, UM401DW $15.05
58 231628-5 TORSION SPRING 20, UM401DW, T1 $2.51
58 231639-0 TORSION SPRING 20, UM401DW $3.50
59 416198-7 LEVER, UM401DW, T1 $1.34
59 416627-0 LEVER, UM401DW $4.71
60 253315-6 THIN WASHER 15, UM401DW $1.34
61 961062-2 STOP RING E-12, UM401DW $0.82
62 816768-6 INDICATION LABEL, UM401D $3.67
63 233182-5 COMP. SPRING 16, UM401DW $2.07
64 416216-1 SWITCH BUTTON, UM401DW $3.50
65 231812-2 TENSION SPRING 5, UM401DW $5.15
66 651948-5 SWITCH, UM401DW $26.62
67 416201-4 SWITCH BOX COVER, UM401DW,T1 $3.61
67 416609-2 SWITCH BOX COVER, UM401DW $6.80
68 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
69 687053-2 STRAIN RELIEF, UM401DW $1.08
70 664440-2 CORD UNIT, UM401DW $23.19
71 416200-6 SWITCH BOX, UM401DW, T1 $3.61
71 416608-4 SWITCH BOX, UM401DW $6.80
72 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
73 858717-7 NAME PLATE, UM401DW $3.67
74 416199-5 SWITCH LEVER ARM, UM401DW $1.85
75 165210-7 HANDLE, UM401DW $39.88
76 252641-0 WING NUT M8, UM401DW $3.61
77 322925-1 REAR GUARD SHAFT, UM401DW $1.41
78 231627-7 TORSION SPRING 8, UM401DW $2.07
79 150698-4 REAR GUARD CPL., UM401DW $37.63
80 150697-6 REAR BAG COVER, UM401DW $85.40
81 322926-9 REAR BAG ROD, UM401DW $5.15
83 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
84 150696-8 HEIGHT ADJUSTER CPL., UM401DW $15.05
85 416205-6 UNDER COVER, UM401DW $5.15
86 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
87 423299-4 UNDER GUARD, UM401DW $23.19
88 165209-2 HANDLE HOLDER L, UM401DW $13.40
89 344557-4 HOLDER PLATE, UM401DW $1.85
90 911116-5 P.H. SCREW M4X12, 4301BV $0.53
91 267071-2 FLAT WASHER 4, UM401DW $0.90
92 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
93 921472-5 HEX BOLT M8X50,8401 $1.48
94 344454-4 SHAFT HOLDER, UM401DW $1.85
95 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
96 921472-5 HEX BOLT M8X50,8401 $1.48
97 165208-4 HANDLE HOLDER R, UM401DW $12.19
98 652731-3 RELAY, UM401DW $26.11
99 265995-6 TAPPING SCREW 4X18, BO4556K $0.86
100 252641-0 WING NUT M8, UM401DW $3.61
101 679503-1 INDICATOR, UM401DW $44.47
102 266020-6 TAPPING SCREW 4x12, BO4556 $1.19
103 651420-7 SWITCH, UM401DW $11.31
104 416196-1 SWITCH PLATE, UM401DW $1.85
105 687092-2 BAND, UM401DW $1.48
106 231602-3 TORSION SPRING 4, UM401DW $2.07
107 416217-9 INLET COVER, UM401DW $1.85
108 951075-1 SPRING PIN 3-28, AN611 $0.90
109 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B $1.96
110 416279-7 CAP, UM401DW $5.15
111 182905-7 CONTROL PANEL SET, UM401DW $13.40
112 655412-8 INLET, UM401DW $5.15
113 182905-7 CONTROL PANEL SET, UM401DW $13.40
114 652730-5 CURRENT RELAY, UM401DW $29.17
115 266172-3 TAPPING SCREW 6X30, UM401D $1.34
116 421585-7 SPONGE SHEET, UM401DW $1.85
1001 416197-9 KEY, UM401DW $3.83
1003 782227-1 BOX WRENCH UM401DW $16.20
