Makita UM1000D Trimmer Parts

Makita UM1000D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

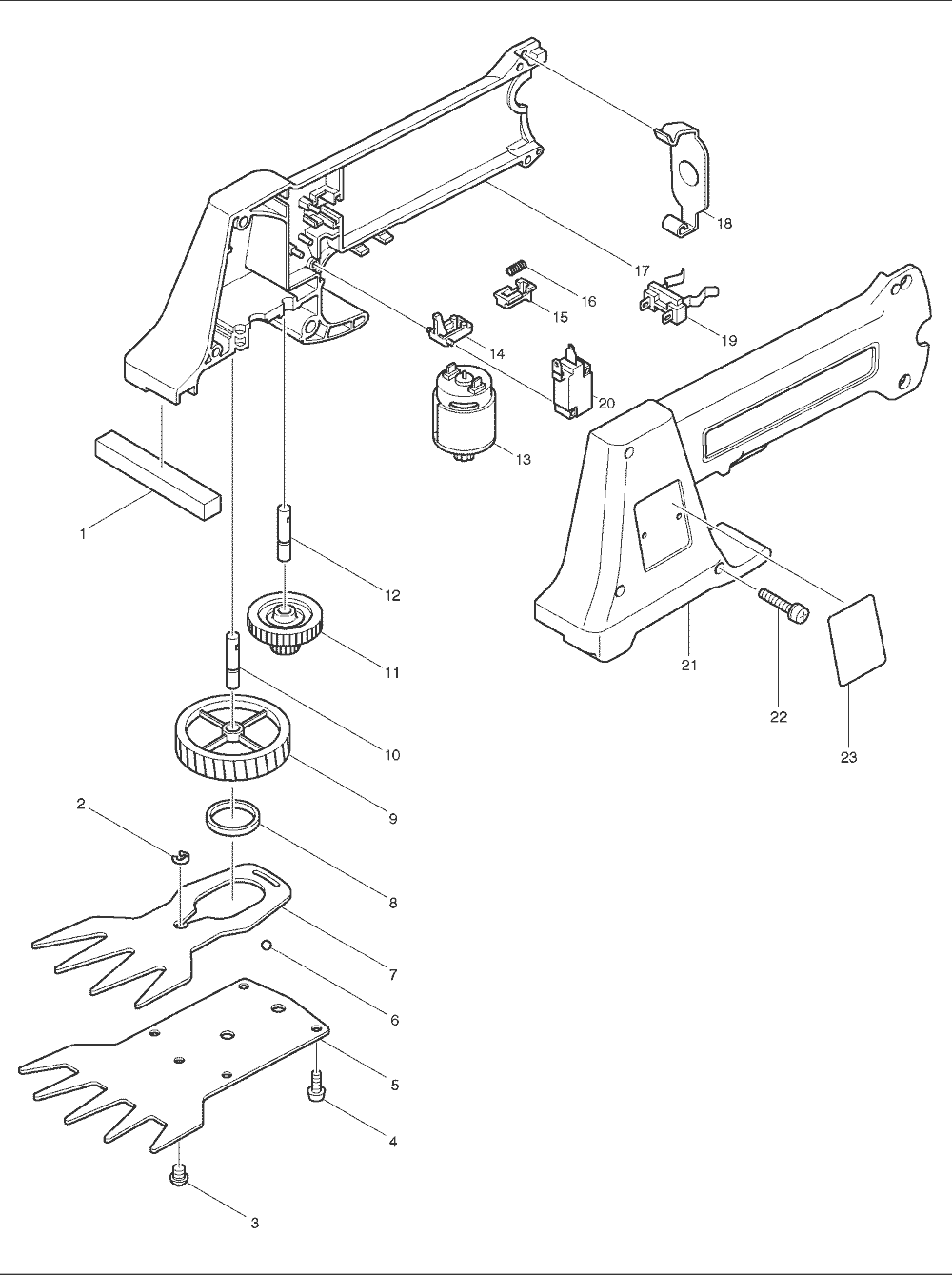

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	423121-5	SPONGE SEAL, UM104DWB	$0.82
2	961018-5	STOP RING E-5, LS1011	$0.53
3	256686-0	PIN 7, UM103DST	$3.50
4	251307-9	P.H. SCREW M4X15, UH3000D	$0.82
5	125030-1	SHEAR BLADE ASSY UM104DWB	$49.22
6	216001-0	STEEL BALL 3.5, 6800DBV	$0.53
7	125030-1	SHEAR BLADE ASSY UM104DWB	$49.22
8	257116-4	RING 21, UM104DWB	$3.50
9	221742-5	H. GEAR 52, UM104DWB	$5.37
10	321835-9	SHAFT, UM104DWB	$3.50
11	226804-4	GEAR 14-34, UM104DWB	$5.37
12	321835-9	SHAFT, UM104DWB	$3.50
13	629538-2	MOTOR, UH3000D	$25.17
14	414168-0	SWITCH LEVER, UH3000D	$1.41
15	414169-8	LOCK-OFF LEVER, 4390D	$0.97
16	231390-2	COMP. SPRING 3, UH3000D	$0.90
17	181834-1	HOUSING SET, UM1000D	$27.59
19	643909-9	BATTERY HOLDER, DA392D	$4.49
21	181834-1	HOUSING SET, UM1000D	$27.59
22	911143-2	P.H. SCREW M4X22, 6211D	$0.86
23	855254-2	NAME PLATE, UM1000D	$1.12
401	414938-7	BATTERY COVER, 6222DWE	$2.20
