Makita UH6350 Trimmer Parts

Makita UH6350 Trimmer Parts Image

Makita UH6350 Parts
25 Inch Electric Hedge Trimmer

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita UH6350
25 Inch Electric Hed...
$174.99
Tool Diagram    (Click image to Zoom in) View larger Image

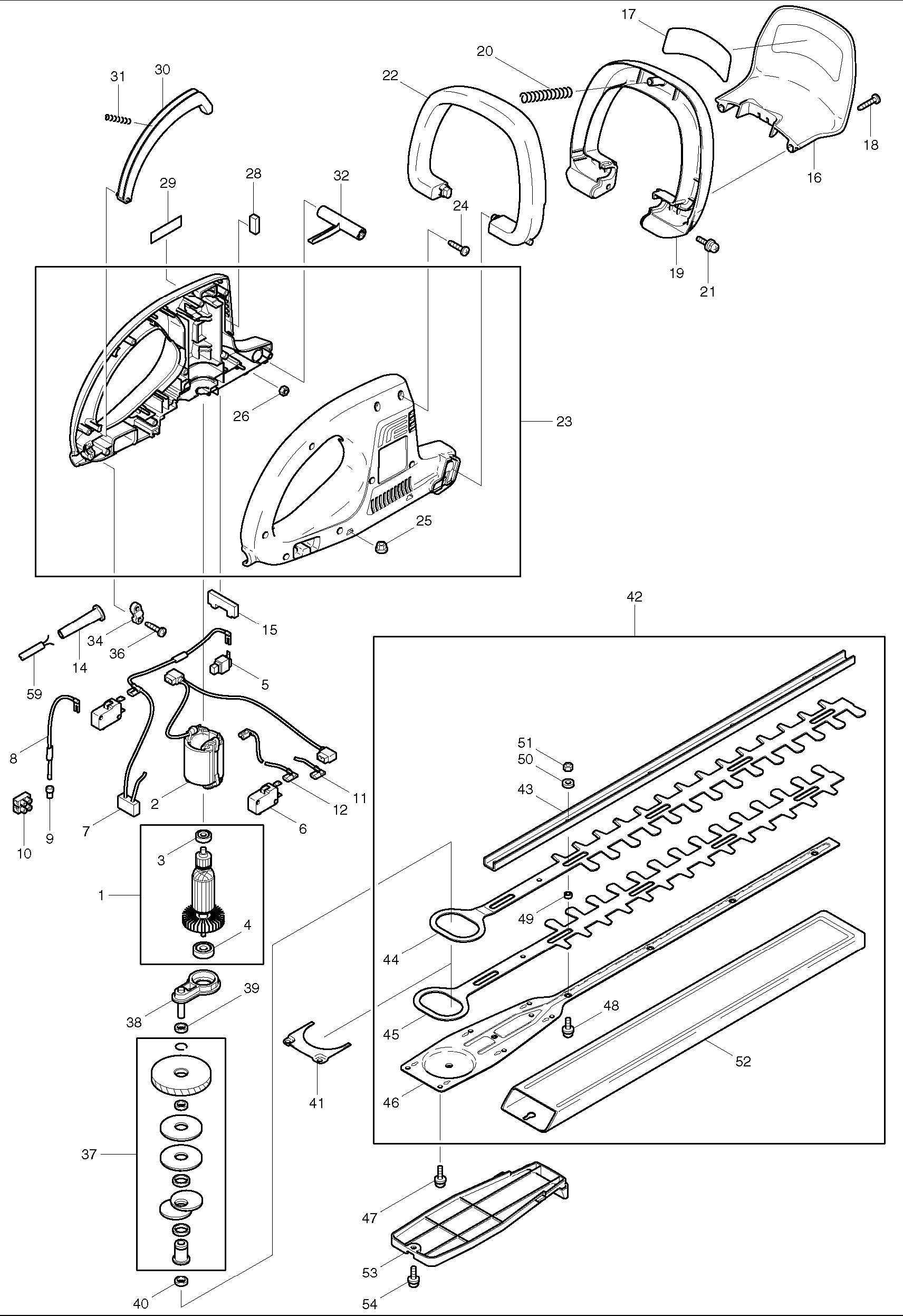

Makita UH6350 Trimmer Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 970-801-820 ROTOR ASS'Y, UH5530 $45.79
2 970-801-220 STATOR ASS'Y. UH5530 $36.92
3 960-101-074 BALL BEARING, UH5530 $11.09
4 960-101-104 BALL BEARING, UH5530 $9.77
5 957-801-410 CARBON BRUSH CPL., UH5530 $9.22
6 970-001-210 SWITCH, UH6350 $6.69
10 970-201-220 SCREW WIRE CONNECTOR, UH5530 $1.74
11 970-311-250 CONNECTING CABLE, UH5530 $3.50
12 970-311-280 CONNECTING CABLE, UH5530 $4.93
13 970-311-270 CONNECTING CABLE, UH5530 $4.60
14 204-152-010 BREAK PROTECTION, UH5530 $1.74
15 222-111-030 GASKET UH5550 $2.95
16 221-213-111 HAND GUARD, UH5530 $4.93
17 980-114-292 LABEL, UH5550 $3.24
18 913-540-205 SCREW 4.0X20, UH5530 $1.41
19 221-310-111 TUBULAR HANDLE,UH5550 $8.34
20 221-145-110 PRESSURE SPRING, UH5530 $1.30
21 917-005-250 SCREW, UH5530 $1.48
22 221-144-110 FRONT GRIP SWITCH, UH5530 $3.50
23 222-110-610 CASE CPL.,BLUE UH5550 $33.45
24 913-540-205 SCREW 4.0X20, UH5530 $1.41
25 222-111-050 HEXAGONAL NUT M5,UH5550 $1.59
26 920-205-000 HEX NUT M5, DCS340 $1.96
27 920-205-000 HEX NUT M5, DCS340 $1.96
28 222-111-040 DUST PROTECTION,UH5550 $1.59
29 980-114-296 LABEL, UH5550 $1.37
30 221-144-120 REAR GRIP SWITCH, UH5530 $1.74
31 221-145-120 PRESSURE SPRING, UH5530 $1.30
32 222-144-130 SWITCH FORK,UH5550 $1.59
34 203-152-050 TRACTION RELIEF, UH5530 $1.74
35 970-801-650 TUBE $1.59
36 915-635-164 SELF CUTTING SCREW 3.5X16, UH5530 $1.48
37 222-220-020 GEAR CPL., UH6350 $17.36
38 222-211-010 GEAR PLATE W/AXLE,UH5550 $14.28
39 253215-0 F. WASHER 8, PV7001C $1.34
40 253215-0 F. WASHER 8, PV7001C $1.34
41 222-233-610 PLATE UH5550 $3.28
42 222230660 SHEAR BLADE 63CM UH6350 $96.15
43 222-233-460 BAR 63CM, UH6350 $9.77
44 222-233-290 SHEAR PLATE A, UH6350 $40.80
45 222-233-390 SHEAR PLATE B, UH6350 $27.74
46 222-233-540 GUIDE PLATE, UH6350 $22.09
47 222-233-170 SCREW M5X18,UH5550 $2.95
48 222-233-160 SCREW M5X16,UH5550 $3.17
49 222-233-150 DISTANCE PIECE, UH5550 $3.17
50 924-405-520 WASHER, UH5550 $1.63
51 221-233-170 SAFETY NUT, UH5530 $3.61
53 222-250-010 FOOT UH5550 $8.34
54 222-233-170 SCREW M5X18,UH5550 $2.95
59 970-102-140 CABLE WITH PLUG, UH5530 $11.53
