Makita UC3500 Electric Saw Parts

Makita UC3500 Electric Saw Parts Image

Makita UC3500 Parts
14 Inch Electric Chain Saw

Brand Logo Download Tool Parts PDF Download Schematic

Time to buy a new tool?
Makita UC3500
14 Inch Electric Cha...
$199.99
Page-1
Page-2
Page-3
Page-4
Tool Diagram    (Click image to Zoom in) View larger Image

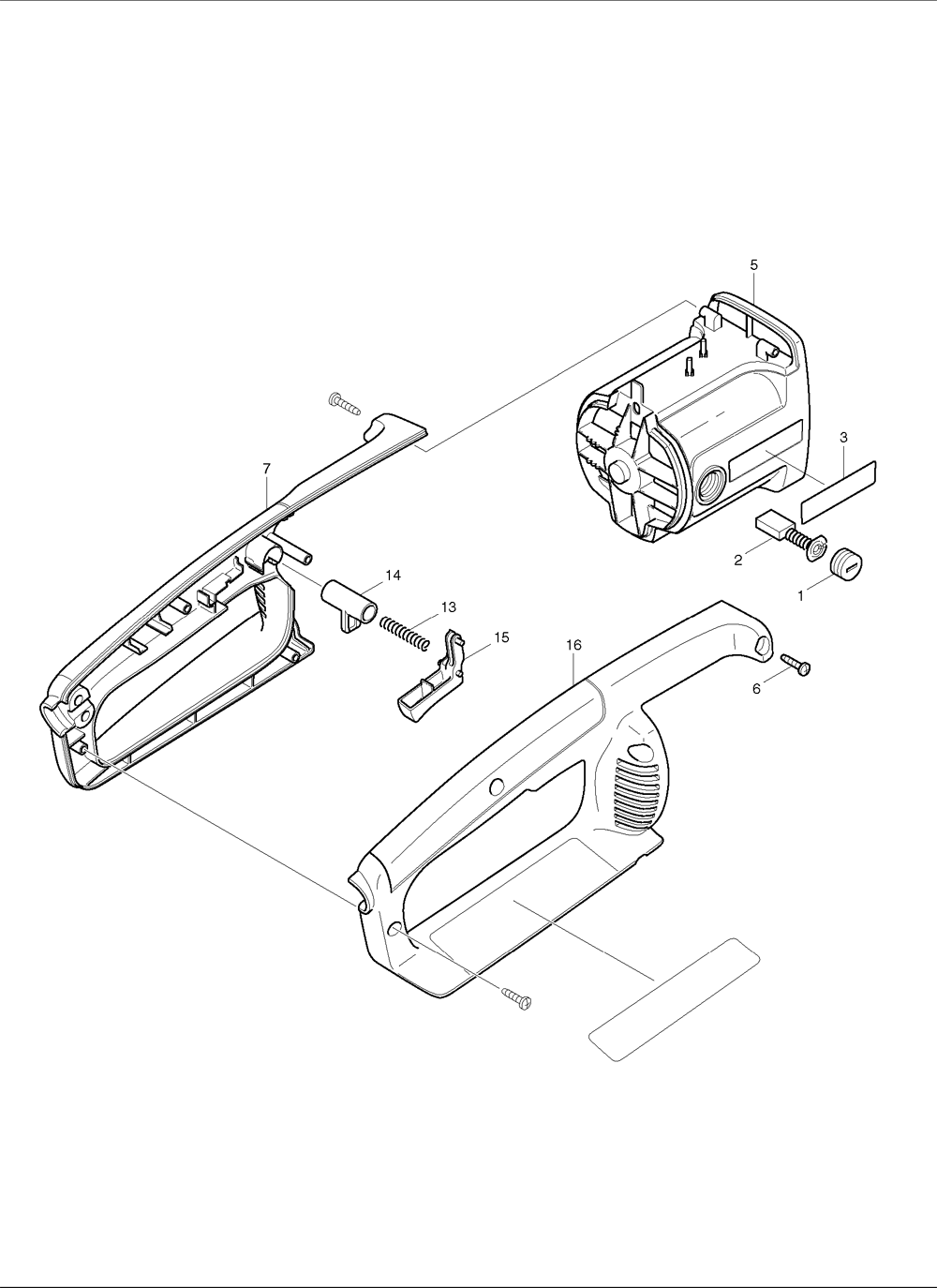

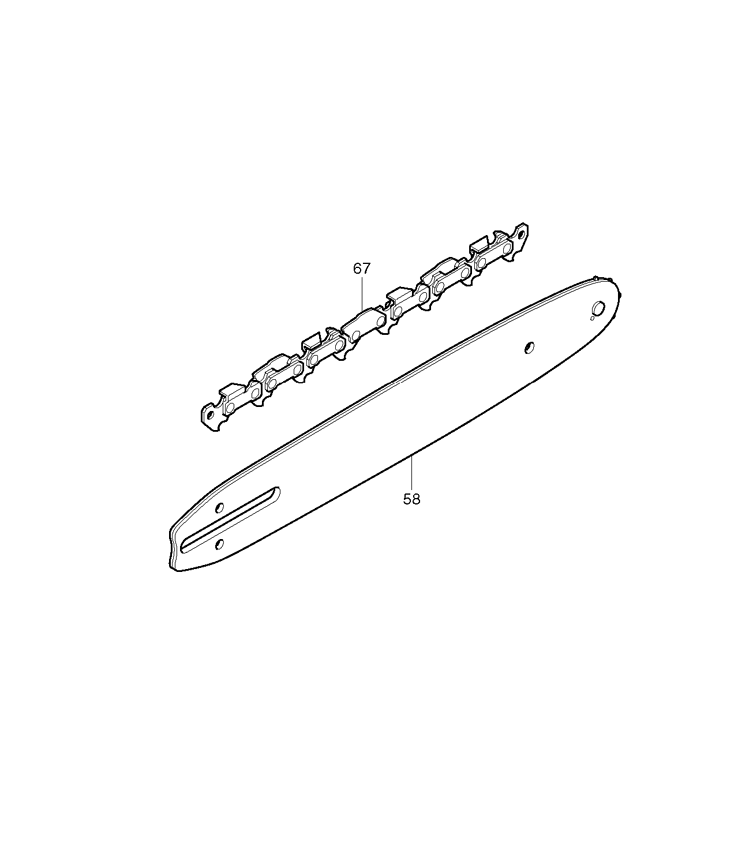

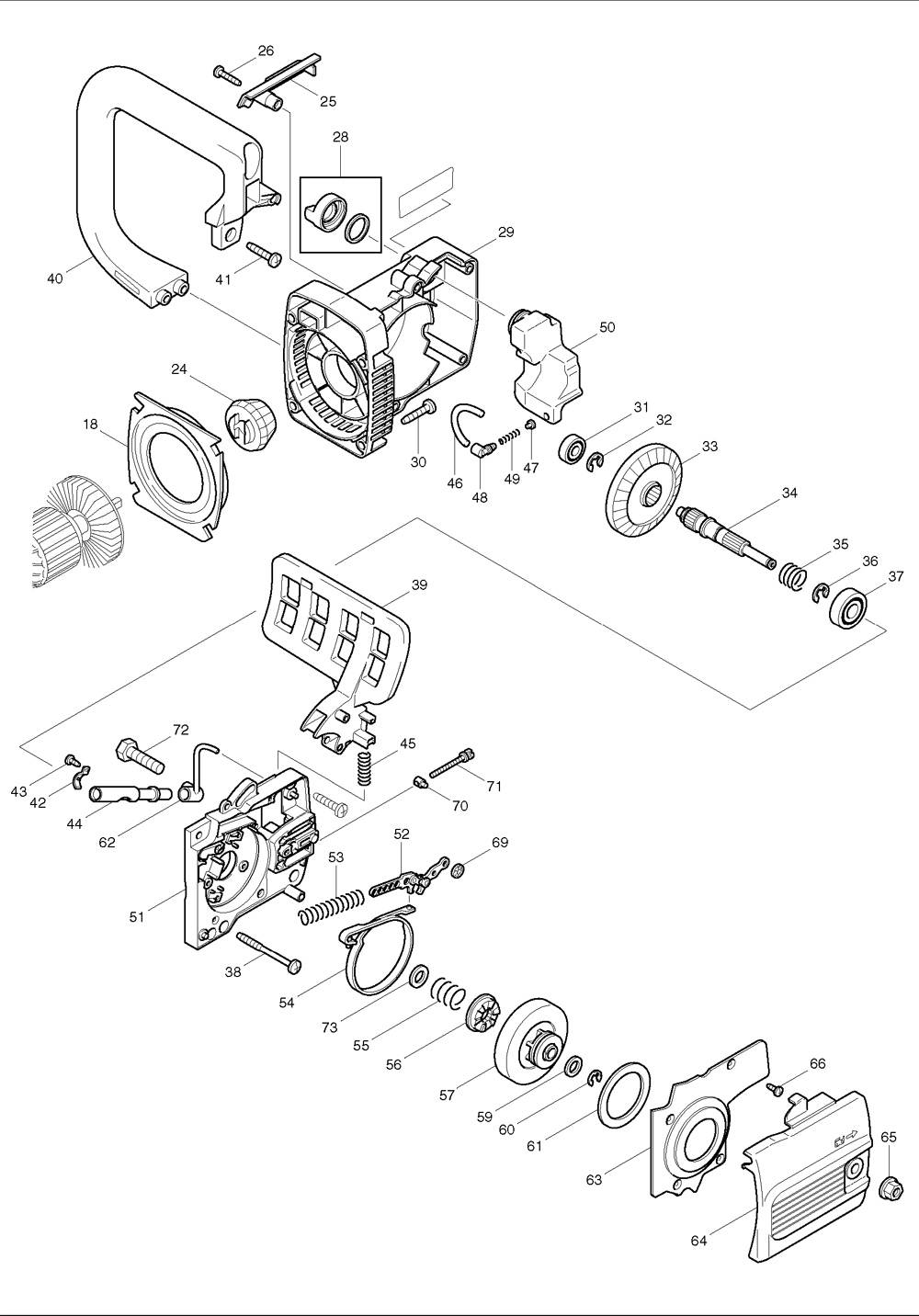

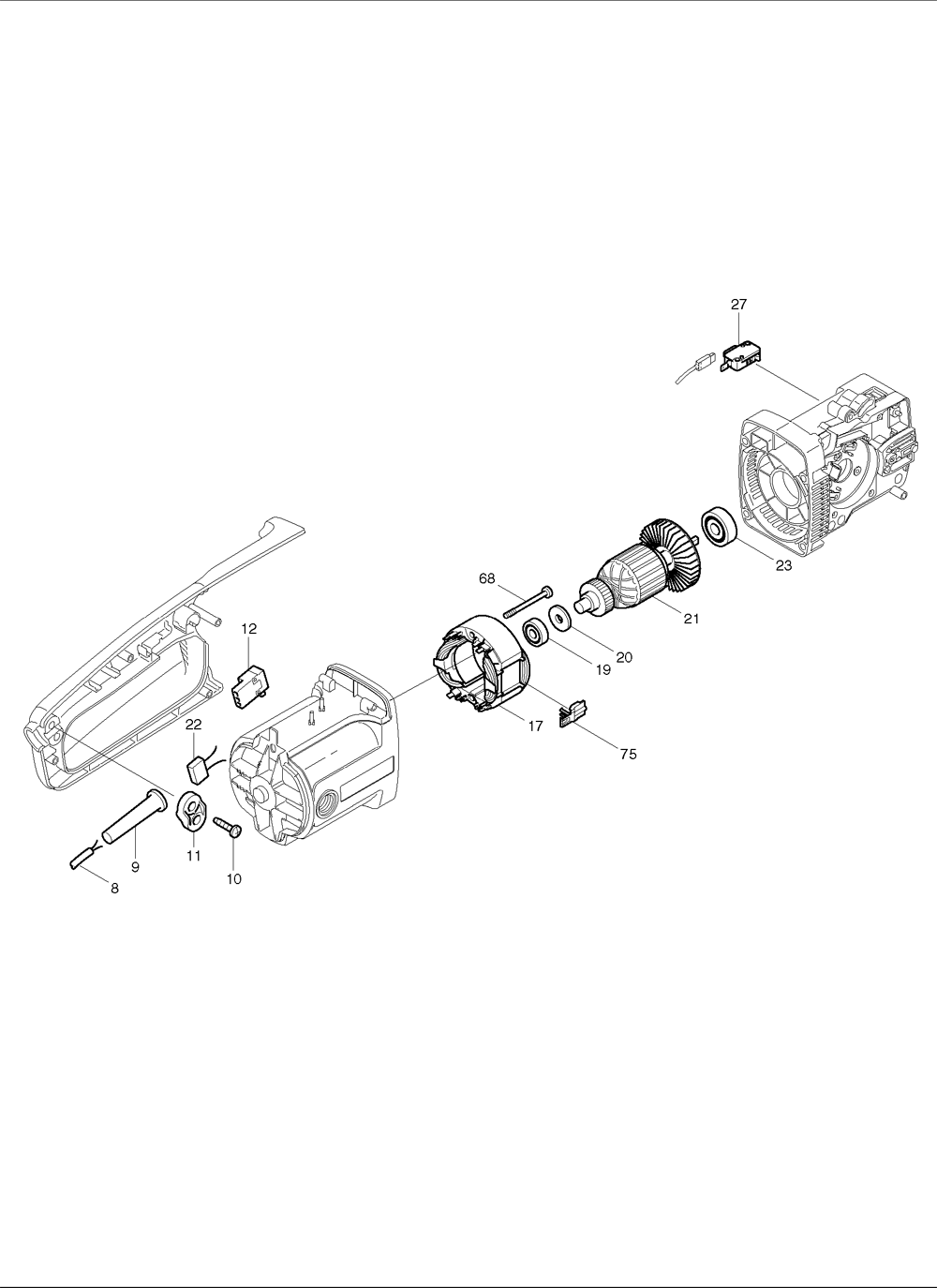

Makita UC3500 Electric Saw Parts Breakdown Diagram
ToolspartsPro

Fig.Part #ImgPart NamePriceQty.
1 970-802-420 COVER FOR CB, UC3500 $1.85
00 970-311-410 BLACK CABLE, UC3500, UC4000 $3.50
2 957-802-410 CARBON BRUSH 2PC.,UC3500 $5.92
61 963-100-081 GASKET FOR TANK PLUG, UC3500 $1.34
3 980-114-348 LABEL, UC3500, UC4000 $1.08
51 225-211-015 GEAR HOUSING RIGHT, UC3500 $19.45
4 970-311-420 ORANGE CABLE, UC3500, UC4000 $3.50
51 225-211-015 GEAR HOUSING RIGHT, UC3500 $19.45
5 225-111-660 MOTOR CASE, UC3500, UC4000 $16.70
51 225-211-015 GEAR HOUSING RIGHT, UC3500 $19.45
6 913-540-185 SCREW 4X18, UC3500, UC4000 $1.08
51 225-211-015 GEAR HOUSING RIGHT, UC3500 $19.45
7 225-310-620 HANDLE, UC3500, UC4000 $14.61
25 225-212-012 COVER UC3500 $4.71
64 225-213-102 SPROCKET GUARD, UC3500 $13.29
8 970-102-221 CABLE W/PLUG, UC3500 $15.16
9 682574-9 CORD GUARD 10-90, PC5000C $2.40
10 913-540-185 SCREW 4X18, UC3500, UC4000 $1.08
63 225-282-012 COVER PLATE, UC4000 $6.47
11 225-152-050 TRACTION RELIEF, UC3500, UC4000 $1.41
28 205-114-204 TANK PLUG CPL., UC3500 $4.71
12 975-001-200 PUSH BUTTON, UC3500, UC4000 $7.68
28 205-114-204 TANK PLUG CPL., UC3500 $4.71
13 233173-6 COMPRESSION SPRING 4, UC3530A $1.63
14 416178-3 LOCK-OFF BUTTON, UC3530A $1.41
15 225-271-010 POWER SWITCH, UC3500, UC4000 $1.85
16 225-310-620 HANDLE, UC3500, UC4000 $14.61
17 970-802-220 STATOR ASS'Y, UC3500, UC4000 $36.92
18 225-118-010 AIR GUIDE PLATE, UC3500, UC4000 $1.85
19 210081-8 BALL BEARING 629ZZ, UC3530A $7.68
20 970-802-610 DISTANCE PIECE, UC3500, UC4000 $1.41
21 970-802-321 ROTOR ASS'Y, UC4000 $79.10
23 960-103-126 BALL BEARING, UC3500, UC4000 $12.19
24 226743-8 STRAIGHT BEVEL GEAR 14, UC3530A $4.93
25 225-212-012 COVER UC3500 $4.71
26 913-540-185 SCREW 4X18, UC3500, UC4000 $1.08
27 970-001-200 SWITCH, UC3500, UC4000 $4.93
28 205-114-204 TANK PLUG CPL., UC3500 $4.71
29 225-211-310 GEAR HOUSING LEFT, UC3500 $17.36
30 913-550-255 SCREW 5X25, UC3500, UC4000 $1.08
31 960-101-084 BALL BEARING 608 2Z, UC3500 $6.14
32 259034-2 RETAINING RING E TYPE 10, UC3530A $1.34
33 226741-2 STRAIGHT BEVEL GEAR 43, UC3530A $4.93
34 225-221-030 SHAFT, UC3500 $7.68
35 021-245-040 WORM, DCS340 $3.17
37 211107-9 BALL BEARING 6201ZZ, 1912B $13.07
38 913-550-555 SCREW M5X55, UC3500, UC4000 $1.41
39 225-213-111 HAND GUARD CPL., UC3500 $8.12
40 225-310-021 TUBULAR HANDLE UC3500 $8.12
41 913-550-255 SCREW 5X25, UC3500, UC4000 $1.08
42 203-245-002 OIL PUMP HOLDER, UC3500 $2.51
43 915-135-100 SCREW 3.5X9.5, DCS431 $1.74
45 233174-4 COMPRESSION SPRING 6, UC3530A $1.63
47 416274-7 CAP, UC3530A $1.41
48 225-243-011 CONNECTION FOR TANK UC3500 $1.74
49 231975-4 SPRING, UC3530A $1.96
50 225-244-010 OIL TANK, UC3500, UC4000 $4.93
53 028-213-521 SPRING, UC3500, UC4000 $1.96
54 225-213-050 BRAKE SPRING, UC3500, UC4000 $5.26
55 225-184-012 PRESSURE SPRING, UC3500 $1.96
56 225-229-010 CLAWCOUPLING, UC3500, UC4000 $4.93
57 225-223-112 CLUTCH DRUM CPL., UC3500 $21.10
58 442035661 GUIDE BAR 14 DCS34 & UC3530A $30.60
59 221-229-220 WASHER, UH3500 $1.12
60 259033-4 RETAINING RING E TYPE 6, UC3530A $1.63
61 965-527-070 GASKET, UC3500, UC4000 $1.74
62 225-242-010 TUBE, UC3500, UC4000 $3.50
63 225-282-012 COVER PLATE, UC4000 $6.47
64 225-213-102 SPROCKET GUARD, UC3500 $13.29
65 923-208-004 HEX NUT, DCS341 $4.16
66 915-835-100 SCREW 3.5X9.5, UC3500 $1.08
68 913-550-555 SCREW M5X55, UC3500, UC4000 $1.41
69 930-304-030 CLAMP WASHER, UC3500, UC4000 $1.34
70 001-213-042 NUT WITH PIVOT, DCS341 $4.71
71 901-505-354 SCREW M5X35, UC3500, UC4000 $1.41
72 921452-1 HEX BOLT M8X30,LS1040 $1.34
73 225-189-010 SPECIAL WASHER ES-161/171 $2.73
