Makita UC120D Cordless Saw Parts

Makita UC120D Parts

Download Schematic

Time to buy a new tool?

Visit our website

http://www.ToolOrbit.Com

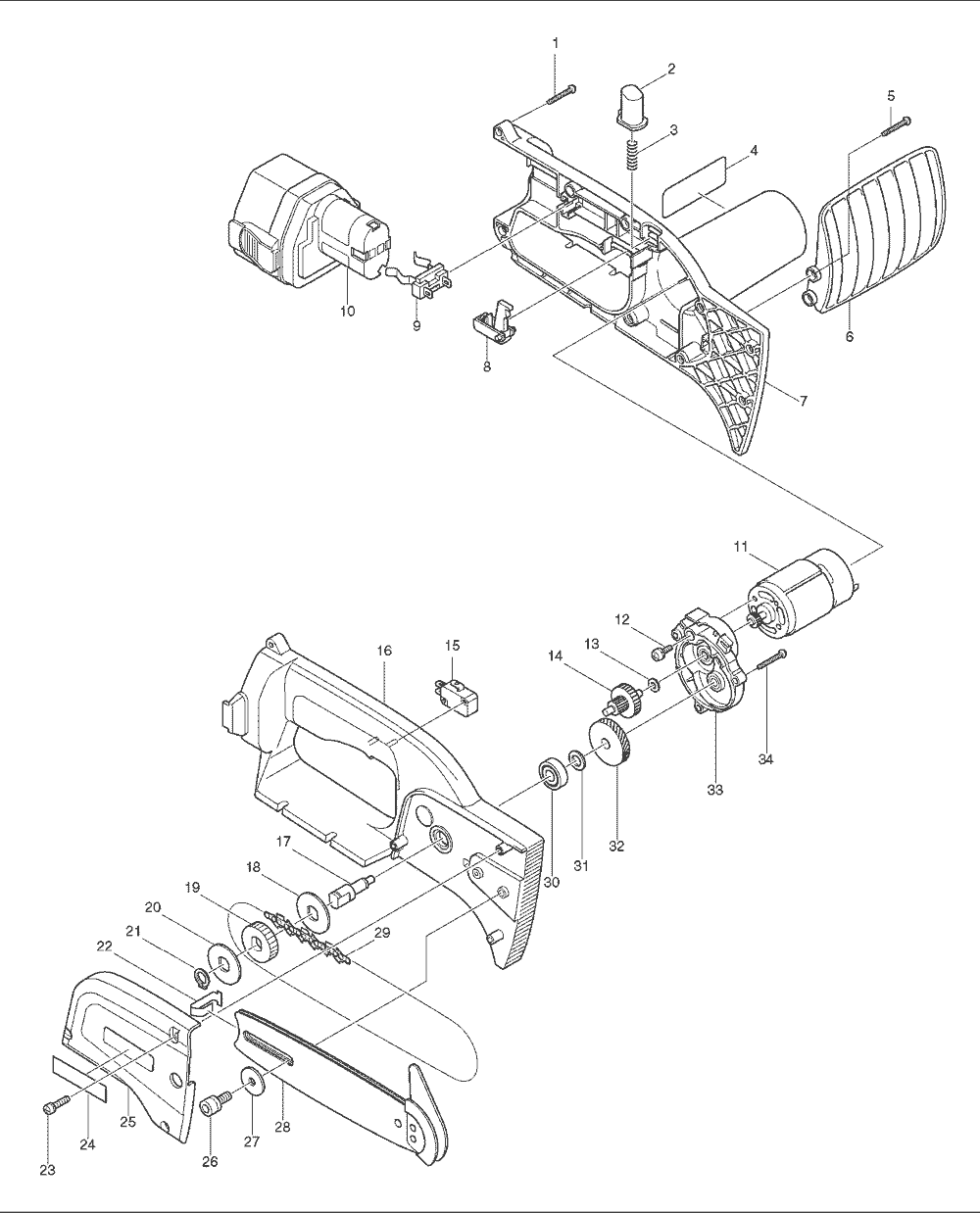

Tool Diagram (Click image to Zoom in) View larger Image

ToolspartsPro

Fig.	Part #	Part Name	Price
1	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
00	150934-8	SCREW FOR EXTENSION POLE,UC120D	$16.70
2	416308-6	LOCK OFF BUTTON, UC120DWA	$3.50
3	233194-8	COMPRESSION SPRING 4, 5620DWA	$1.48
4	858719-3	NAME PLATE, UC120D	$2.51
5	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
6	416312-5	FRONT HAND GUARD, UC120DWA	$5.15

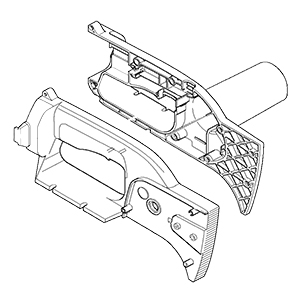

7	182923-5	HOUSING SET, UC120DWA	$55.50
8	416840-0	SWITCH LEVER, AS1212LG	$1.52
9	643909-9	BATTERY HOLDER, DA392D	$4.49
9	643918-8	BATTERY HOLDER, 6391DWPLE	$8.01
10	192598-2	BATTERY 1222, 12VDC 2.0AH,6213DWAE	$96.20
10	193157-5	BATTERY 1234 12V NIMH,6217DWDE	$126.20
11	629715-6	DC MOTOR, UC120DWA	$52.20
12	911113-1	P.H. SCREW M4X10, 4301BV	$0.86
13	253811-4	F. WASHER 5, 5007NK	$1.34
14	226131-9	GEAR COMPLETE 9-46, UC120DWA	$19.12
15	651942-7	SWITCH, UC120DWA	$8.12
16	182923-5	HOUSING SET, UC120DWA	$55.50
17	322954-4	SPINDLE, UC120DWA	$6.80
18	267729-3	LOCK WASHER 12, UC120DWA	$1.85
19	221504-1	SPROCKET, UC120DWA	$11.75
20	267729-3	LOCK WASHER 12, UC120DWA	$1.85
21	961052-5	RETAINING RING S-12, 9218PBL	$0.86
22	232170-9	LEAF SPRING, UC120DWA	$3.50
23	911148-2	P.H. SCREW M4X25, 5057KB	$0.86
24	819063-3	MAKITA LABEL, DA3010F	$0.96
25	416306-0	SPROCKET COVER, UC120DWA	$5.15
26	922322-7	H.S.H. BOLT M6X16, HM1301	$1.34
27	267173-4	FLAT WASHER 6, UC120DWA	$1.85
29	791284-8	CHAIN BLADE UC120DWA	$19.77
30	211031-6	BALL BEARING 608LLB, 9227C	$10.98
31	253215-0	F. WASHER 8, PV7001C	$1.34
32	226478-1	HELICAL GEAR 44, UC120DWA	$10.98
33	159982-4	GEAR HOUSING COMPLETE, UC120DWA	$10.54
34	265995-6	TAPPING SCREW 4X18, BO4556K	$0.86
35	252157-5	SQUARE NUT M6, AS1212LG	$1.34
1001	182229-1	OIL SUPPLY 100CC, UC120DWA	$5.33
1002	414938-7	BATTERY COVER, 6222DWE	$2.20
1004	744003-1	FILE, 5012B	$7.99
1005	783203-8	HEX WRENCH 5, 2708	$3.24
